Design Case study
Design of a Squatting Aide
For seat type commodes
by
Case Study - Slide Show
Design process that was followed in this project:

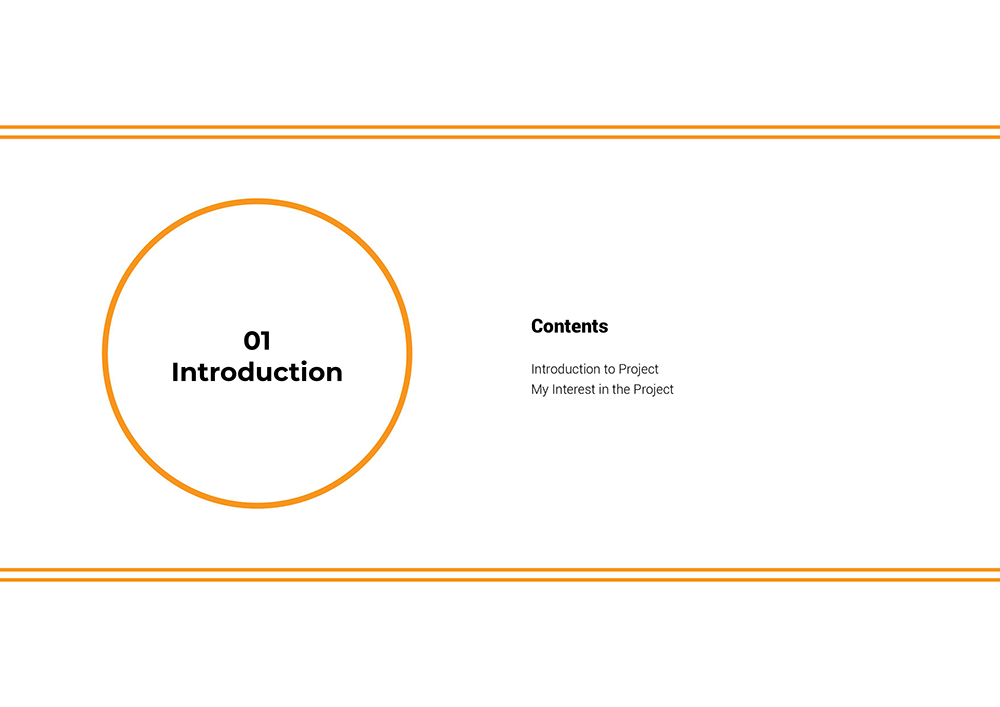

• Introduction

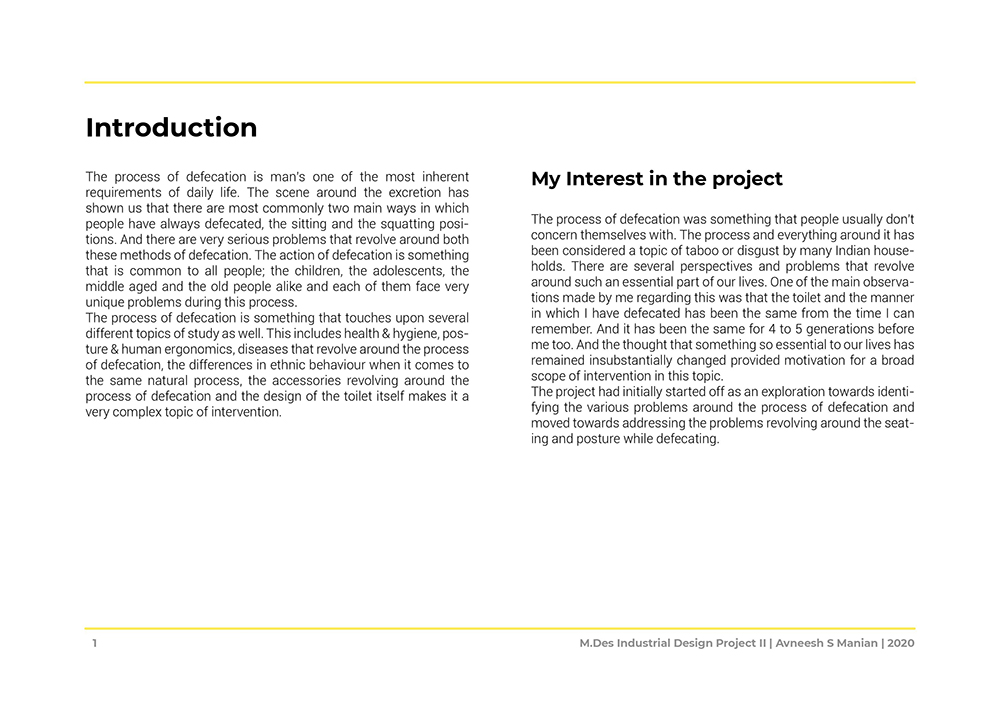

- Introduction to Project
- My Interest in the Project
• Research Phase 1

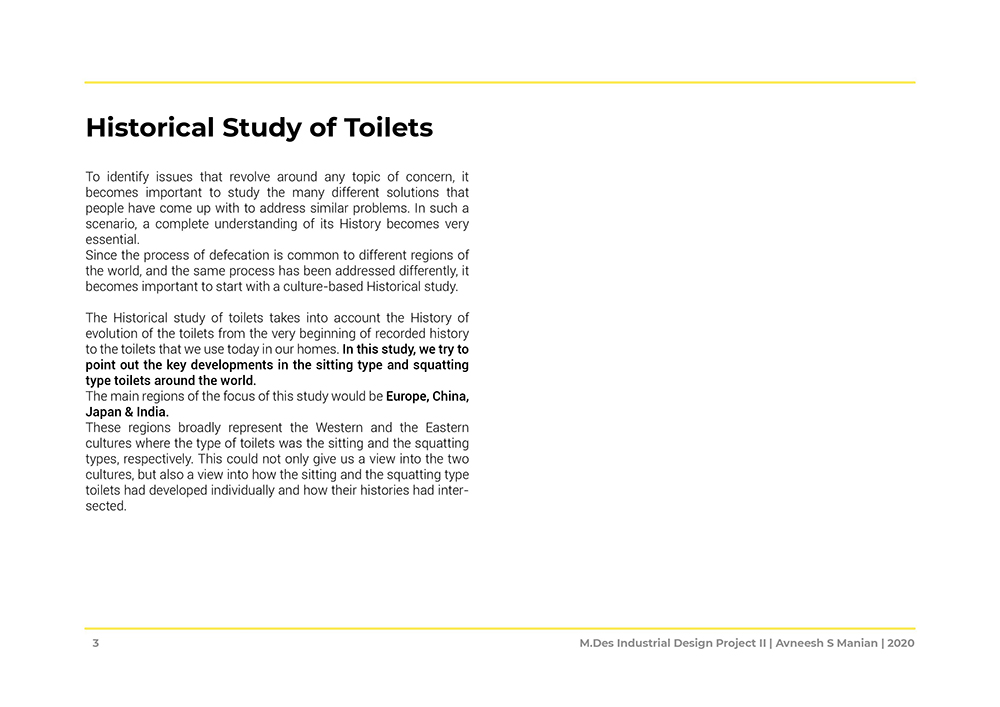

- Historical Study of toilets

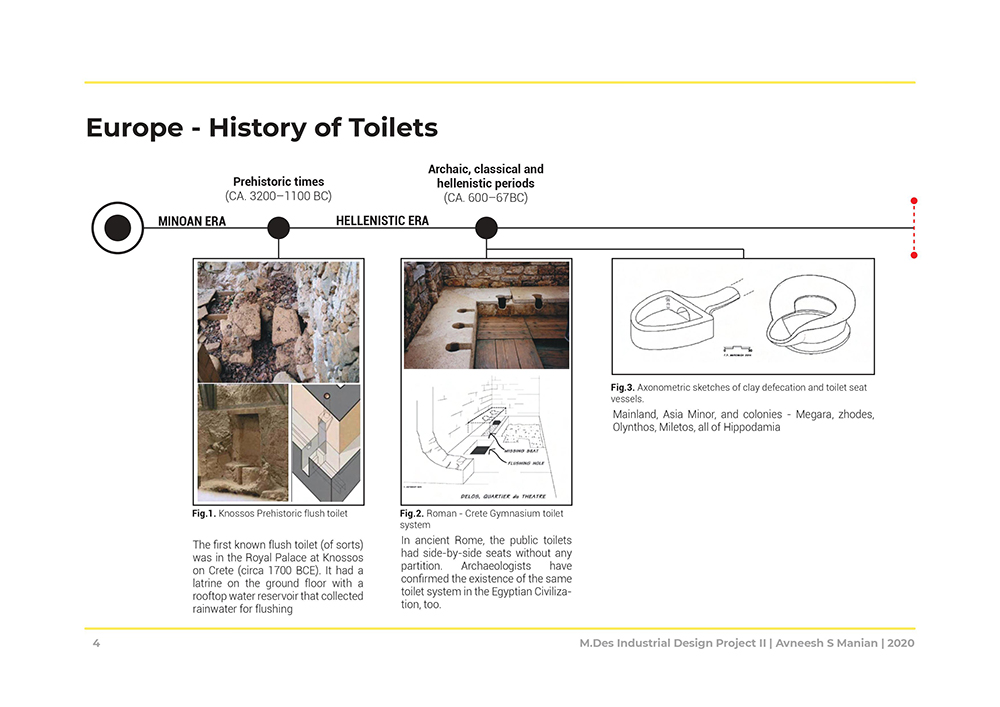

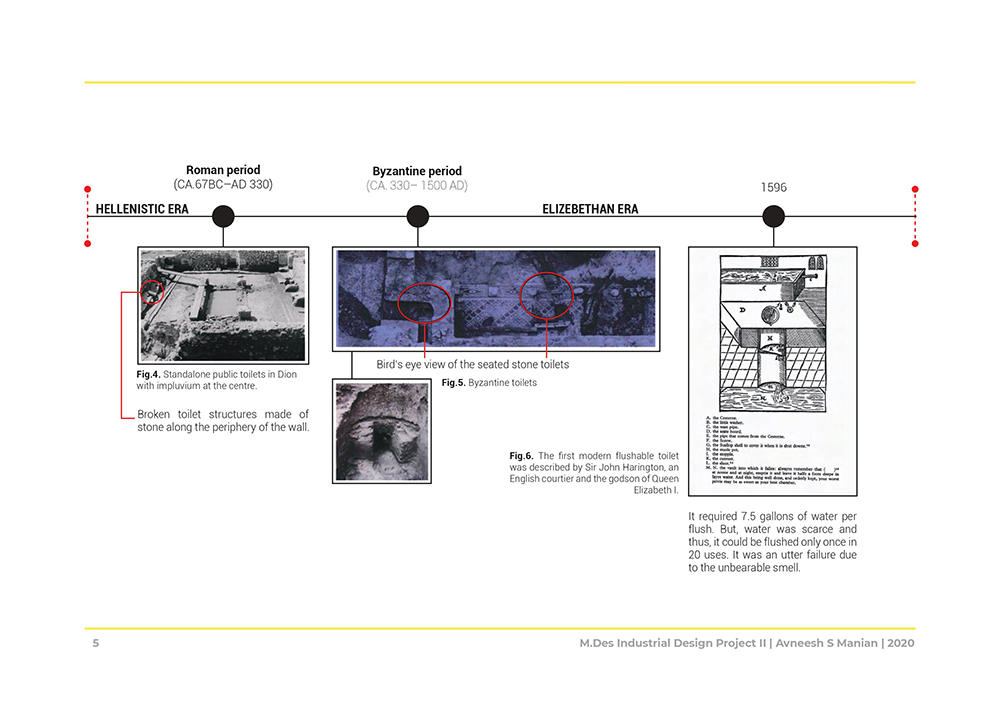

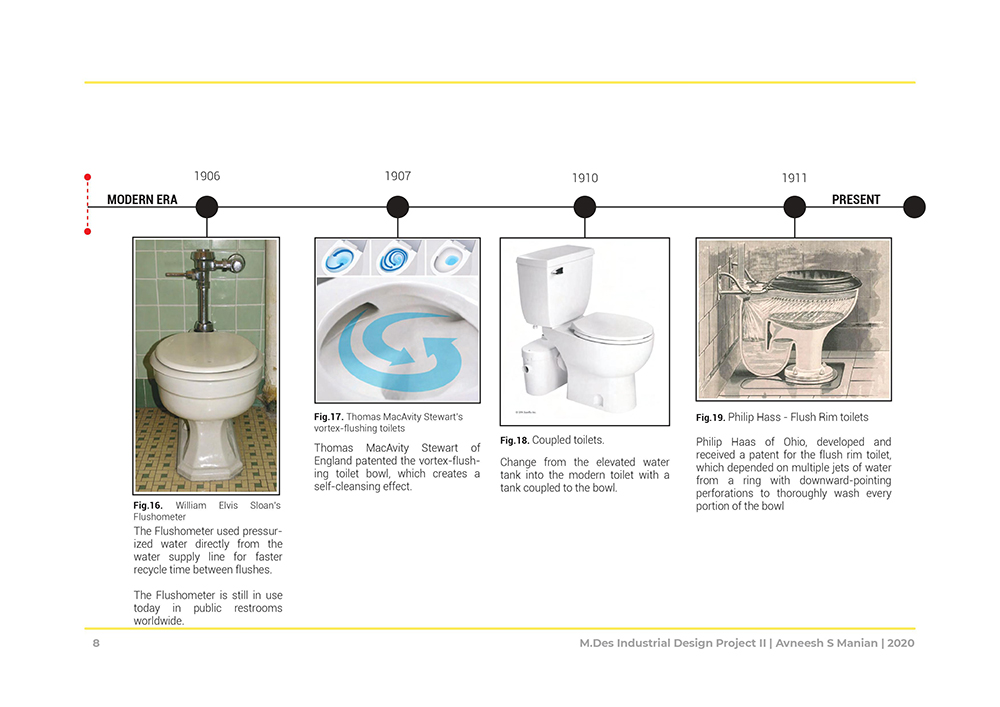

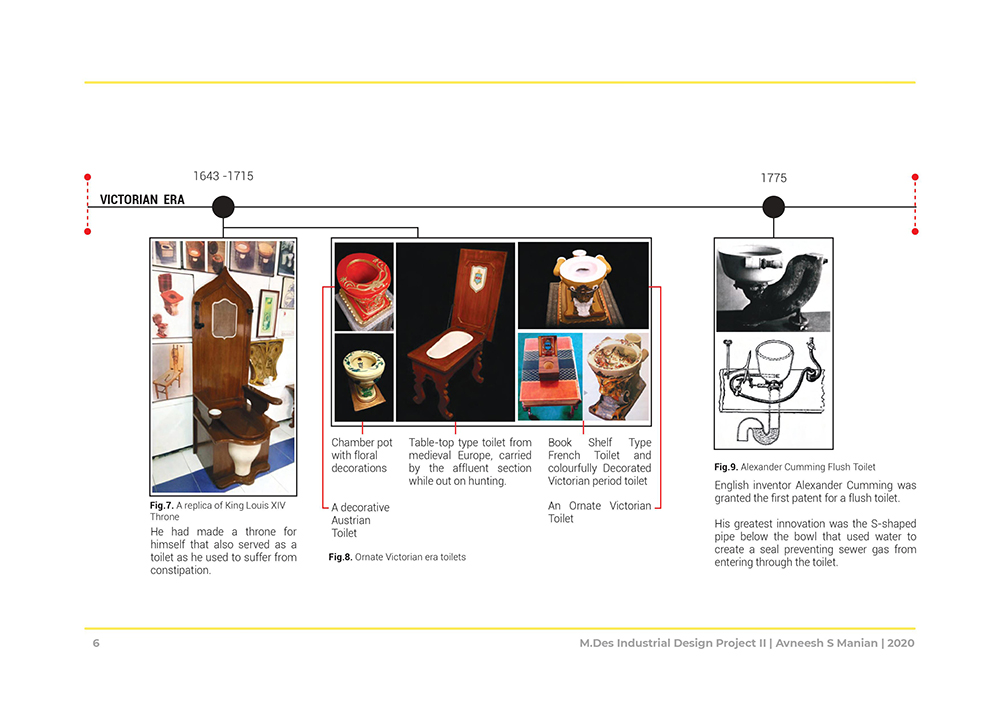

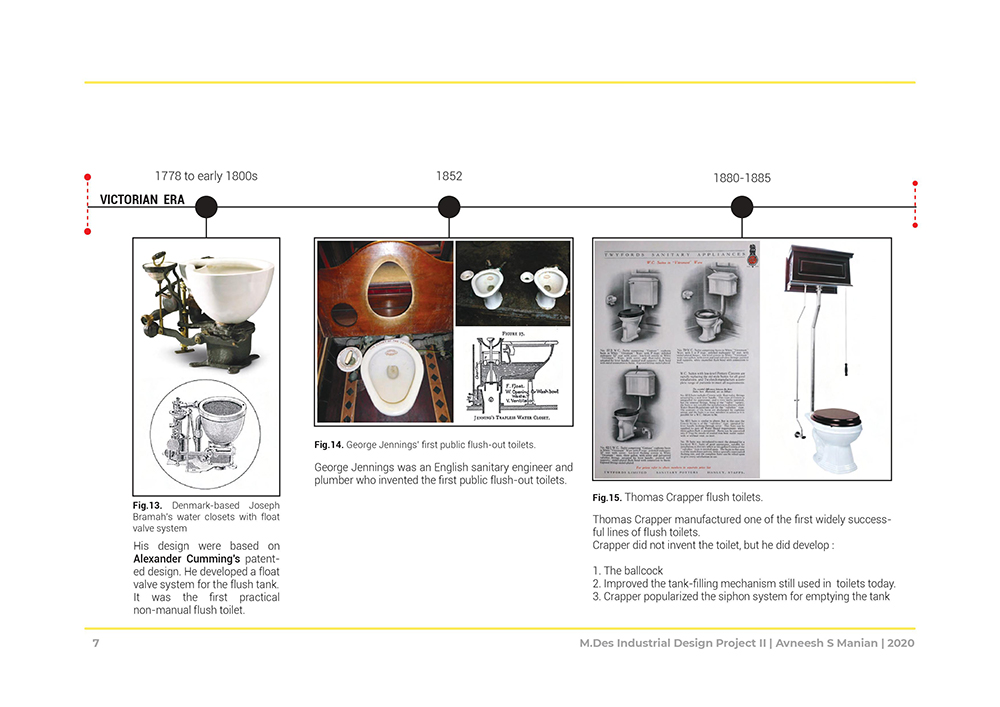

- History of toilets - Europe
- History of toilets - China

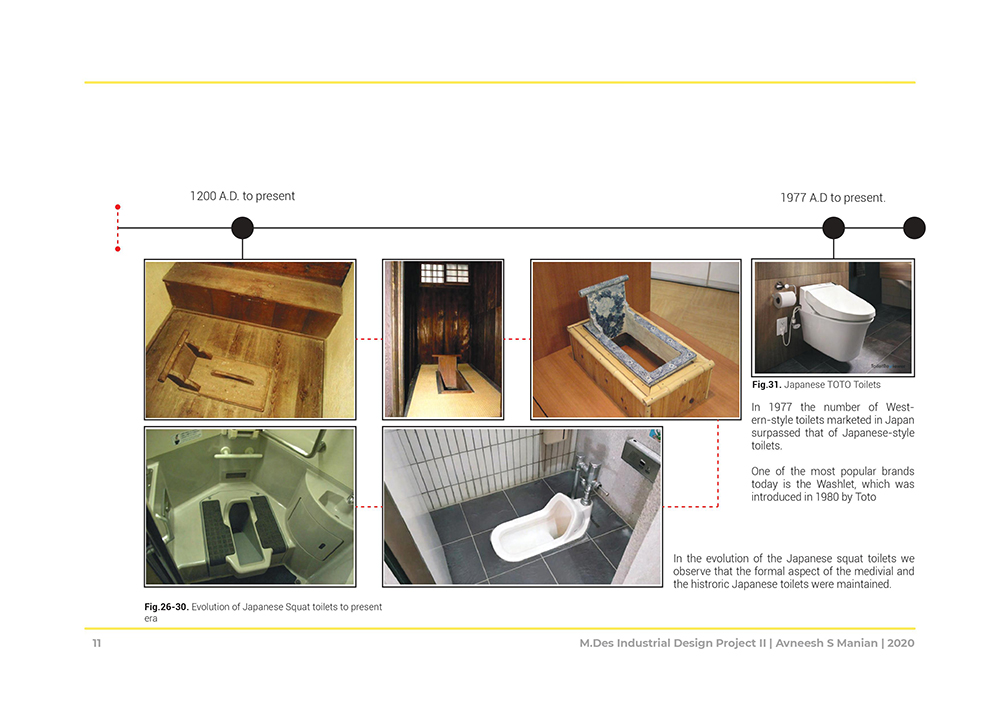

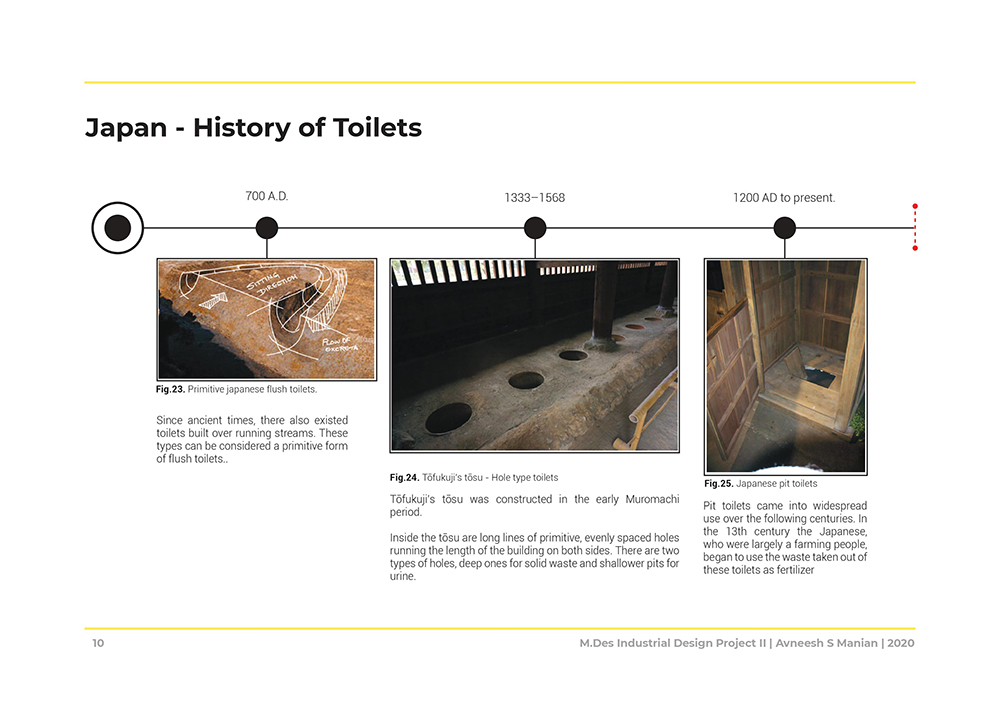

- History of toilets - Japan

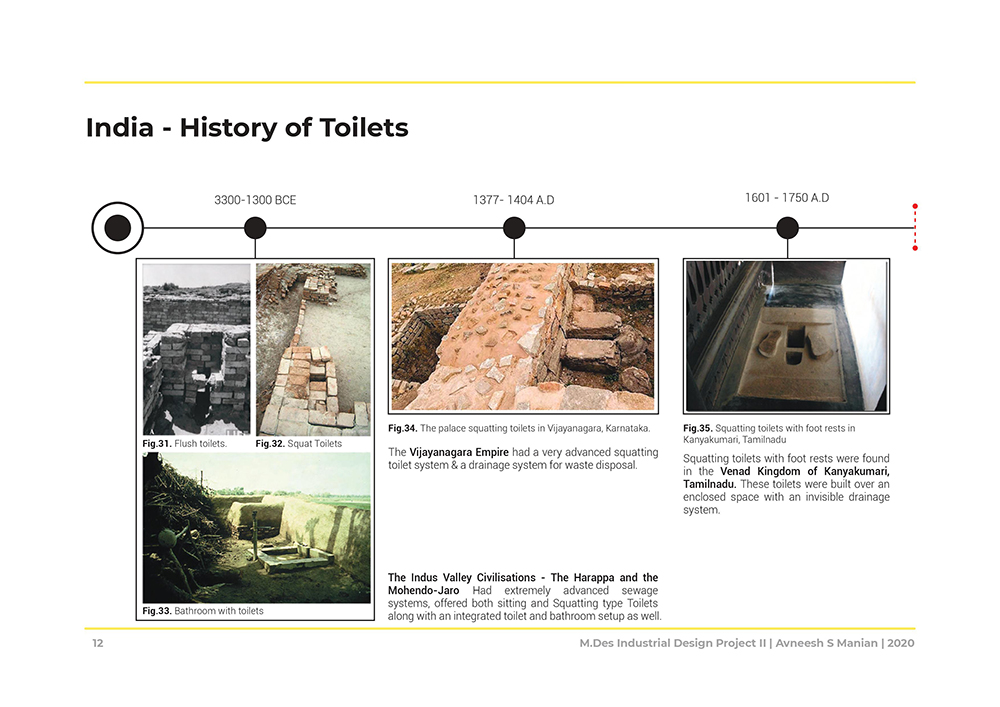

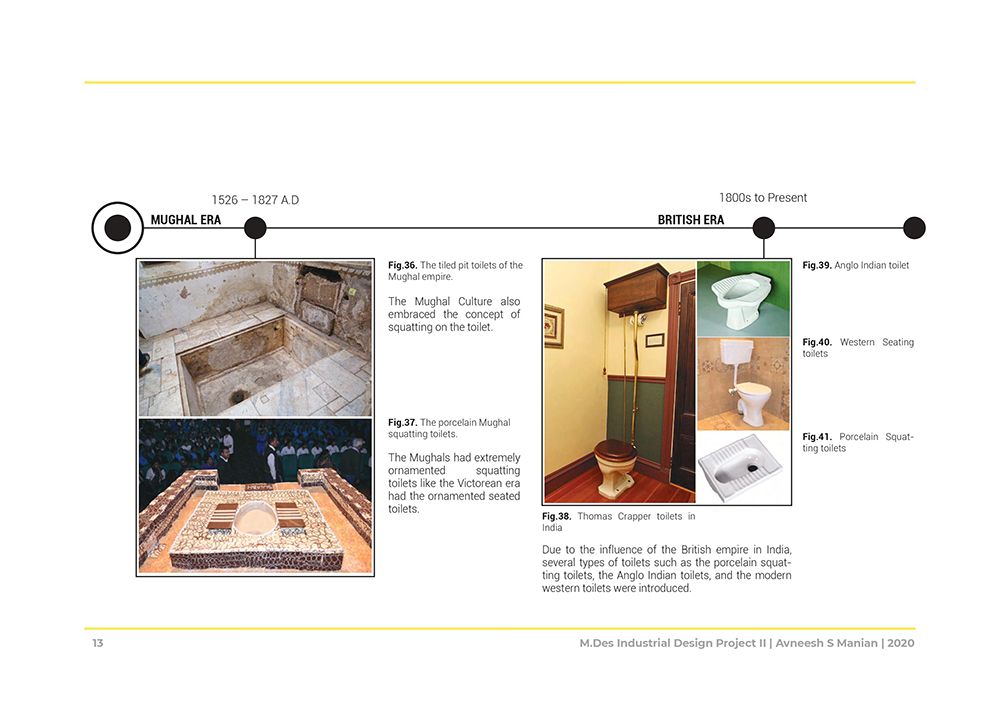

- History of toilets - India

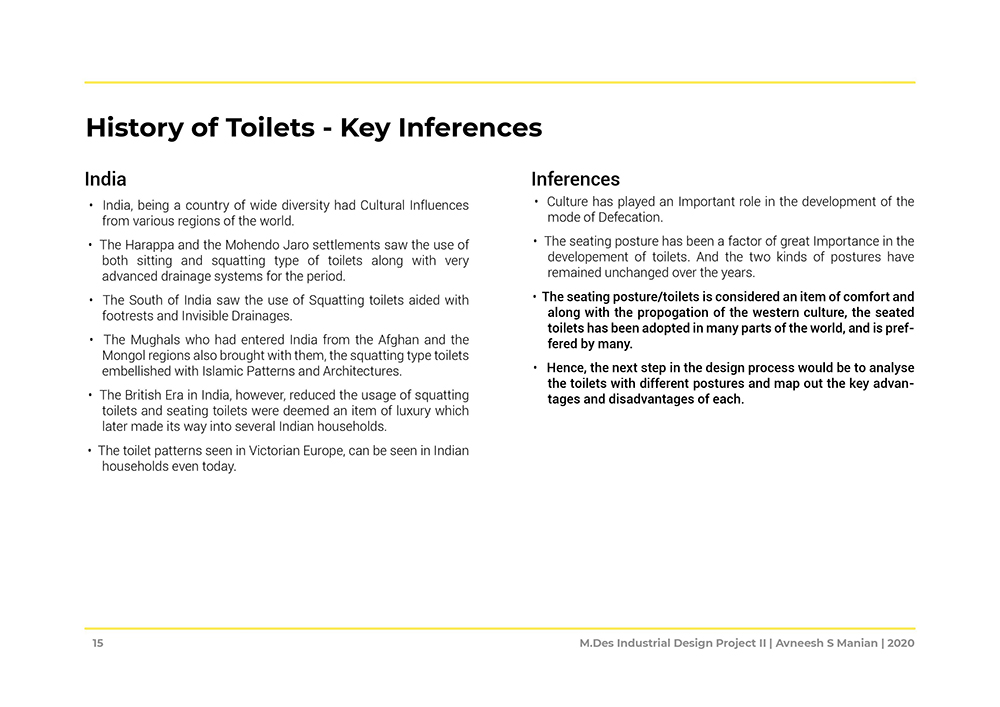

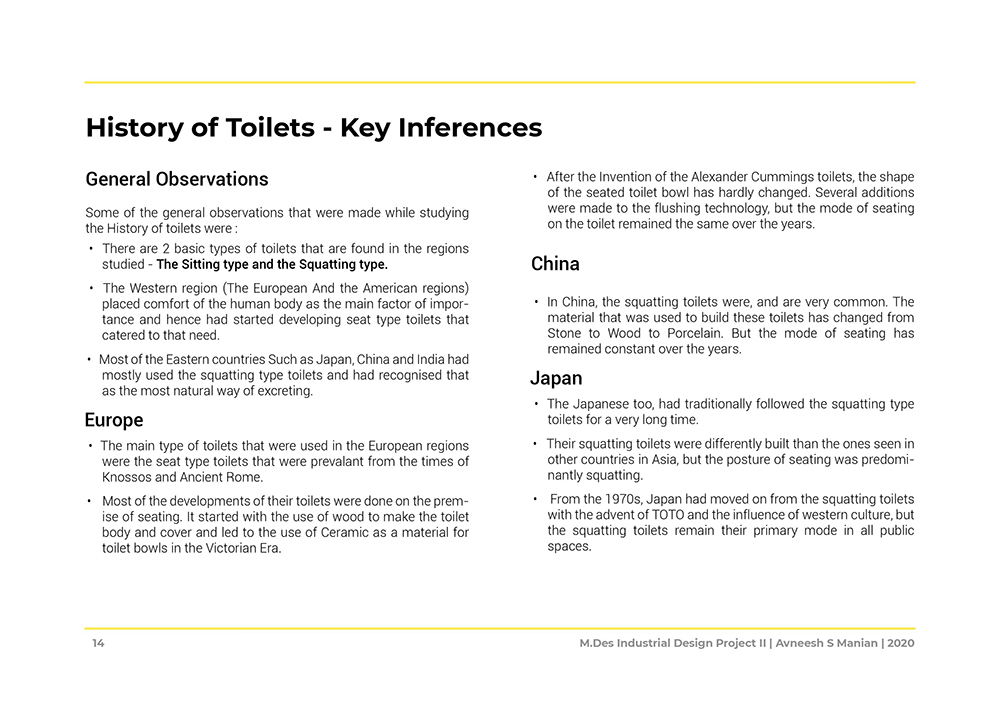

- History of toilets - Key Inferences

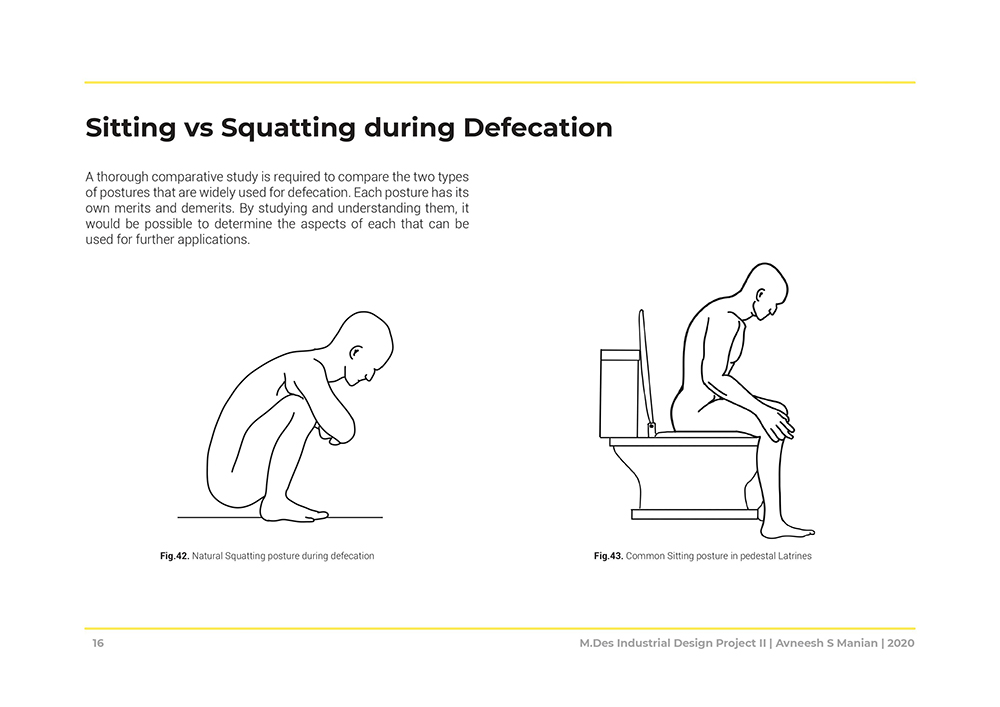

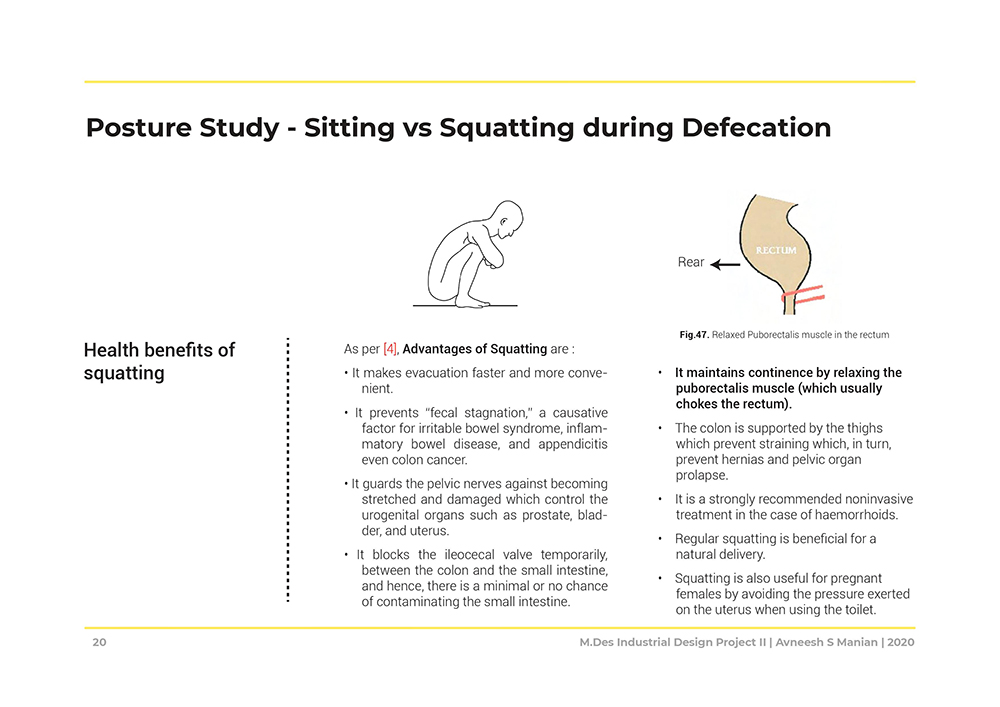

- Sitting Vs Squatting during defecation

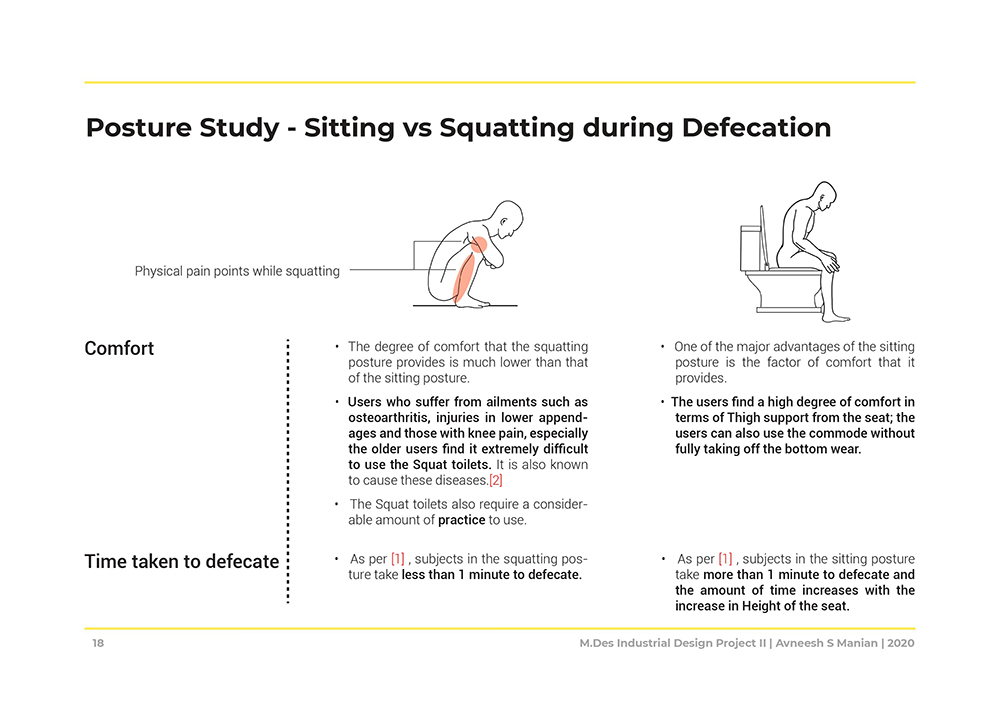

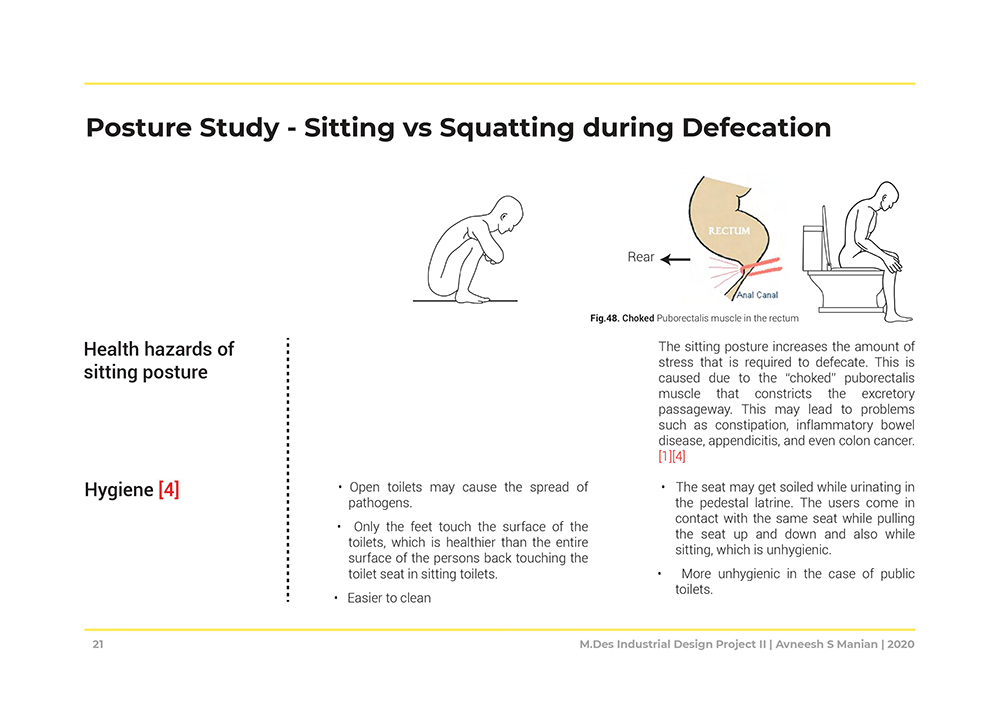

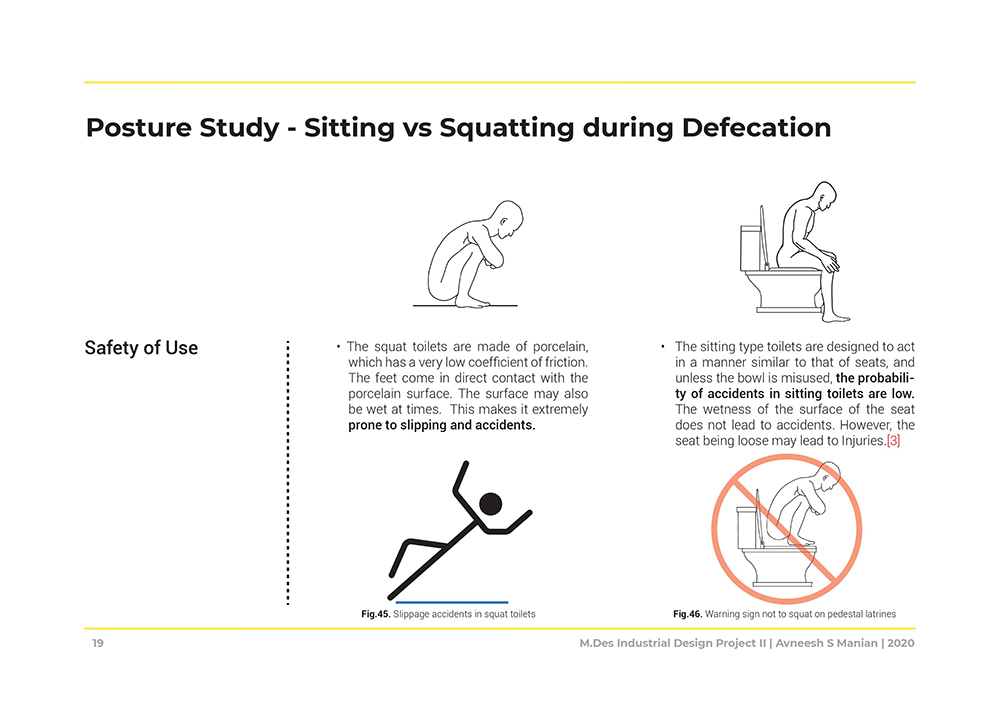

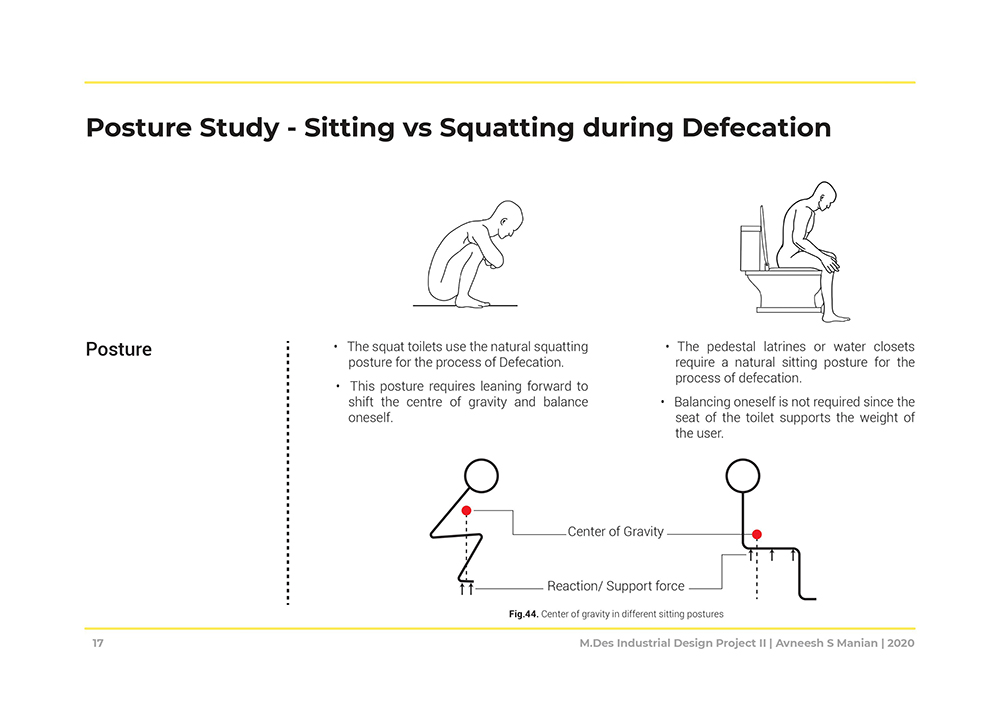

- Posture Study

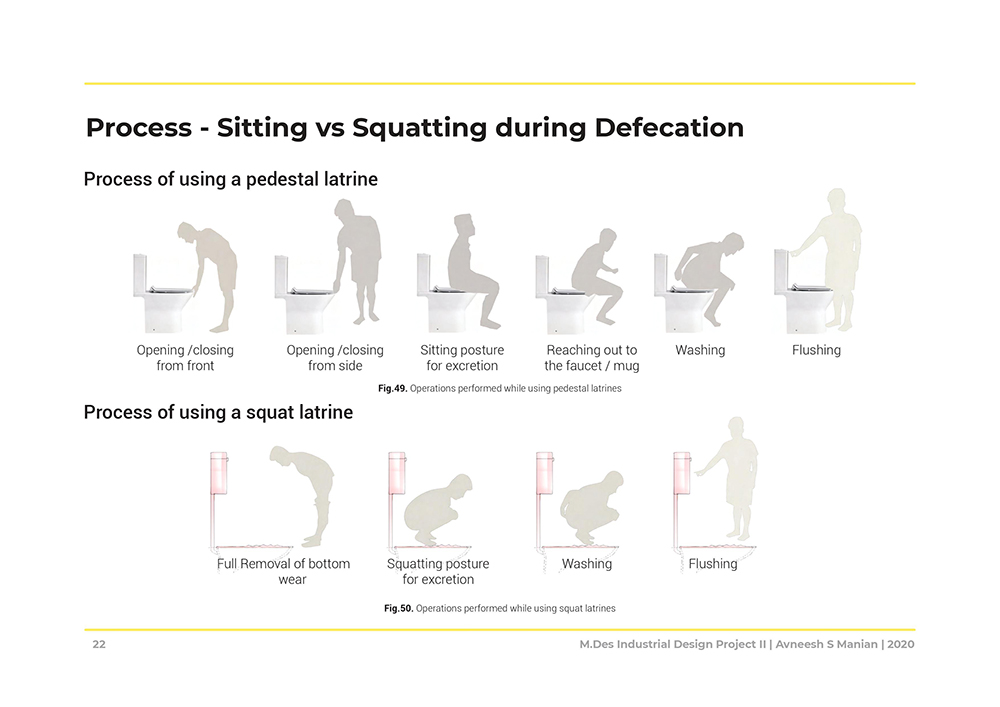

- Process

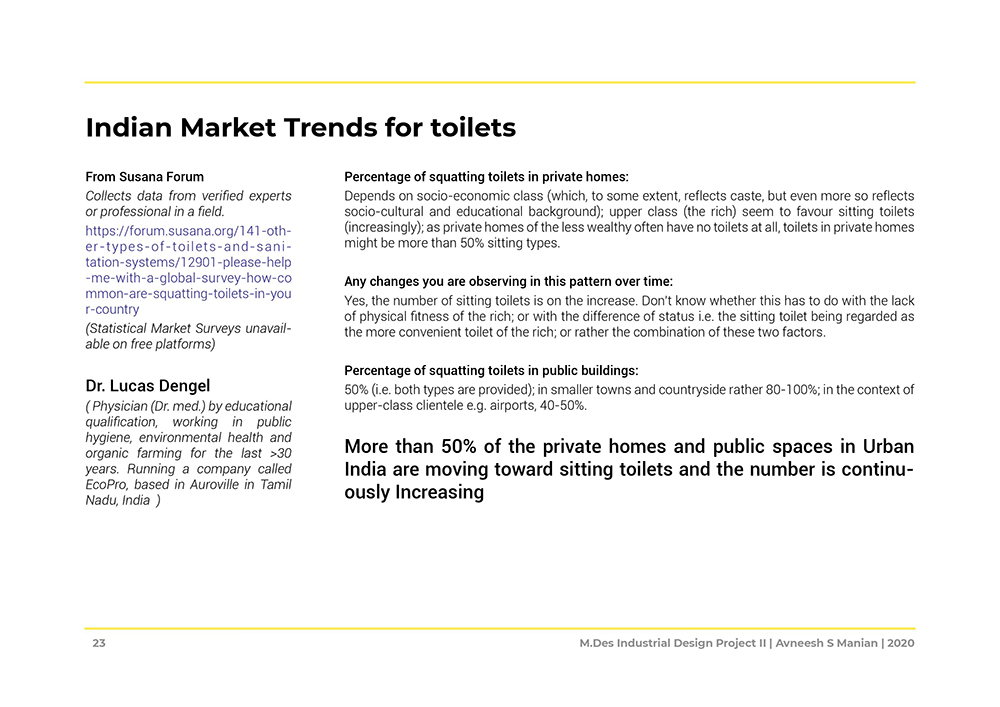

- Indian Market Trends for Toilets

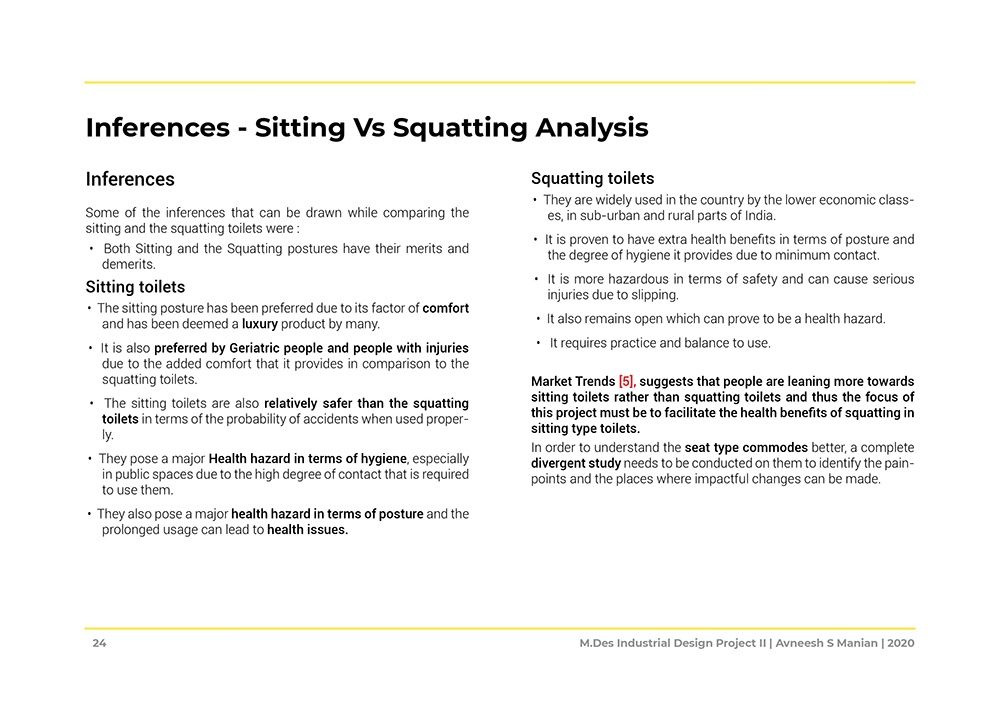

- Sitting Vs Squatting Analysis - Inferences

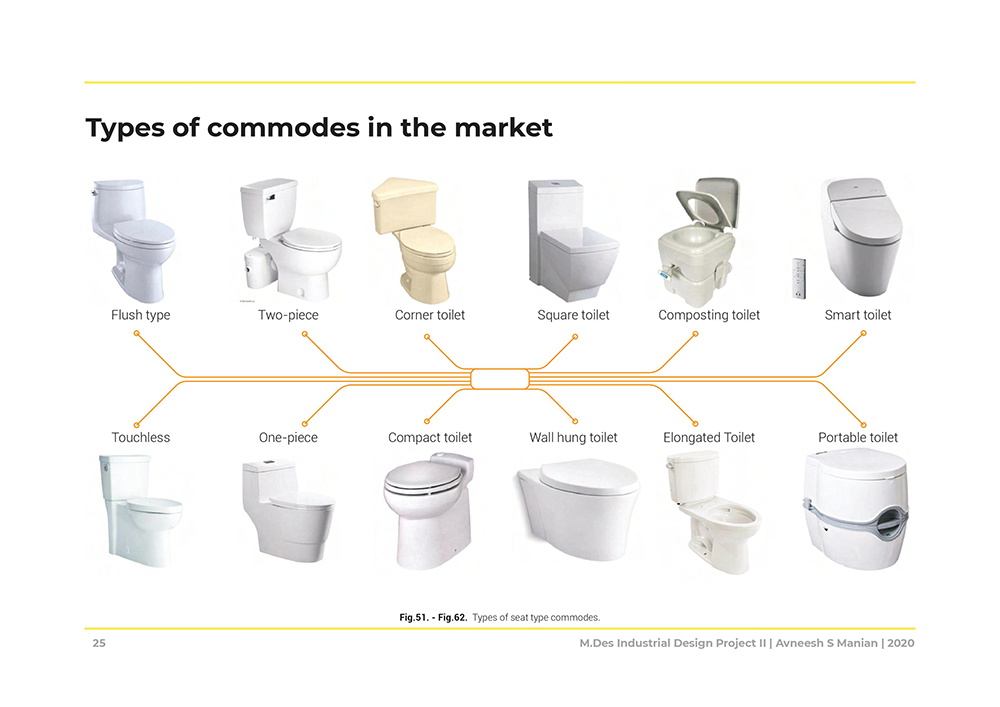

- Types of commodes in Indian markets

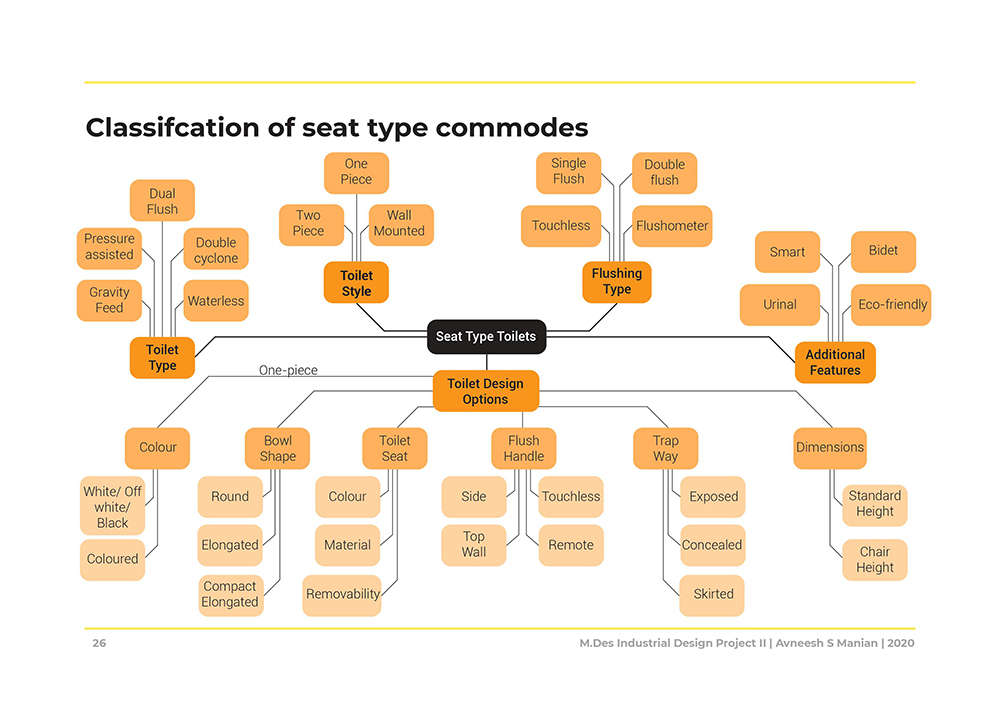

- Classification of seat type commodes

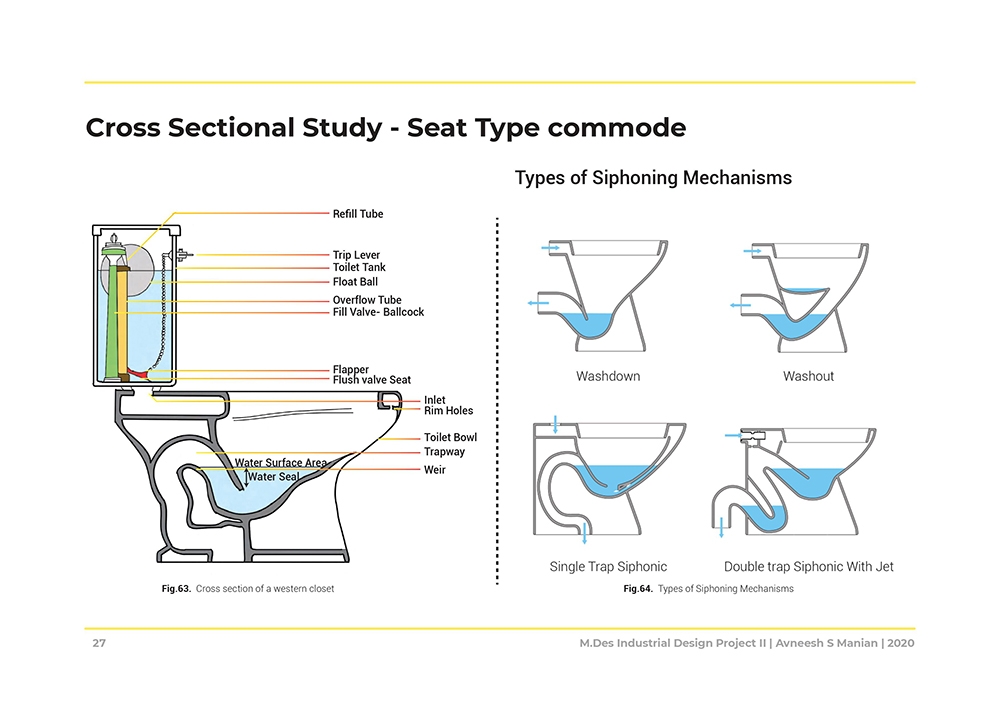

- Cross Sectional Study - Seat type commode

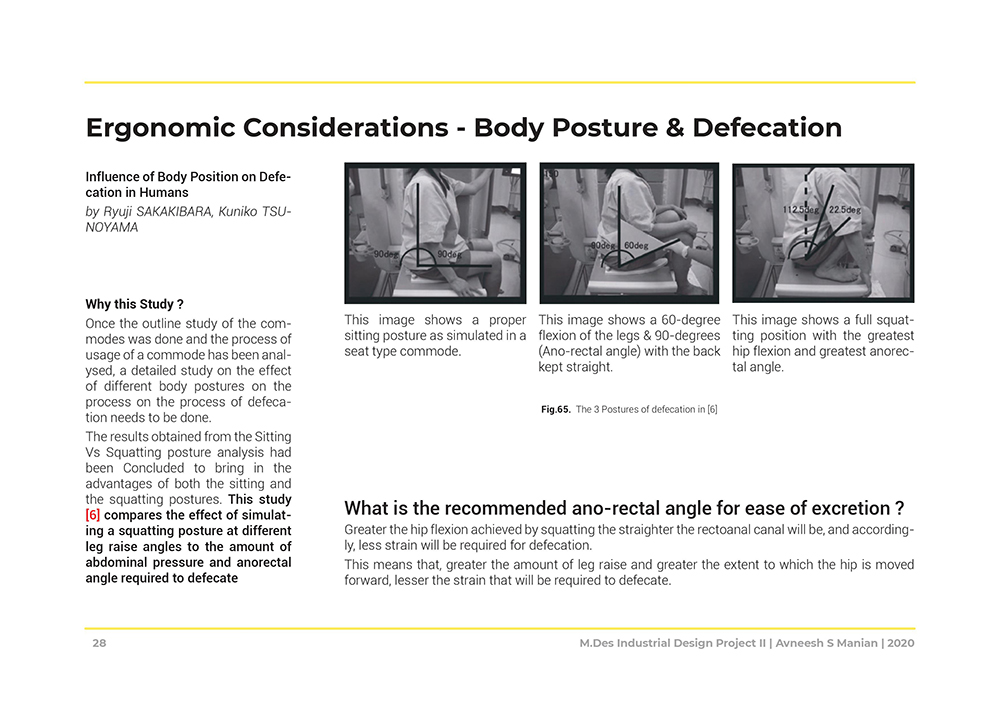

- Ergonomic Considerations - Body Posture & Defecation

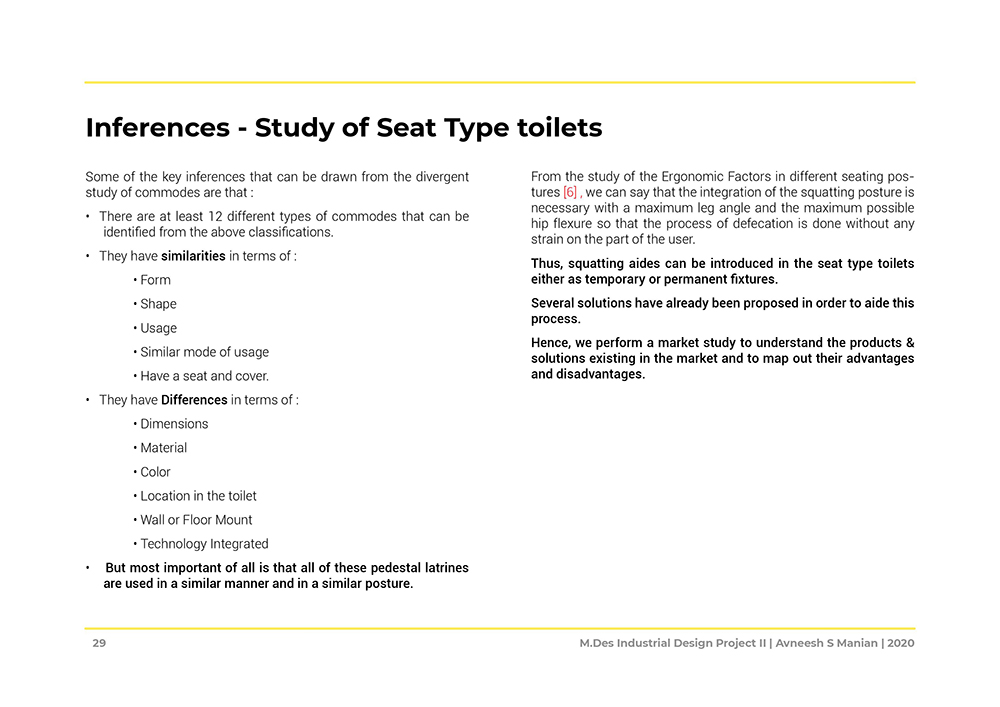

- Inferences - Study of seat type toilets

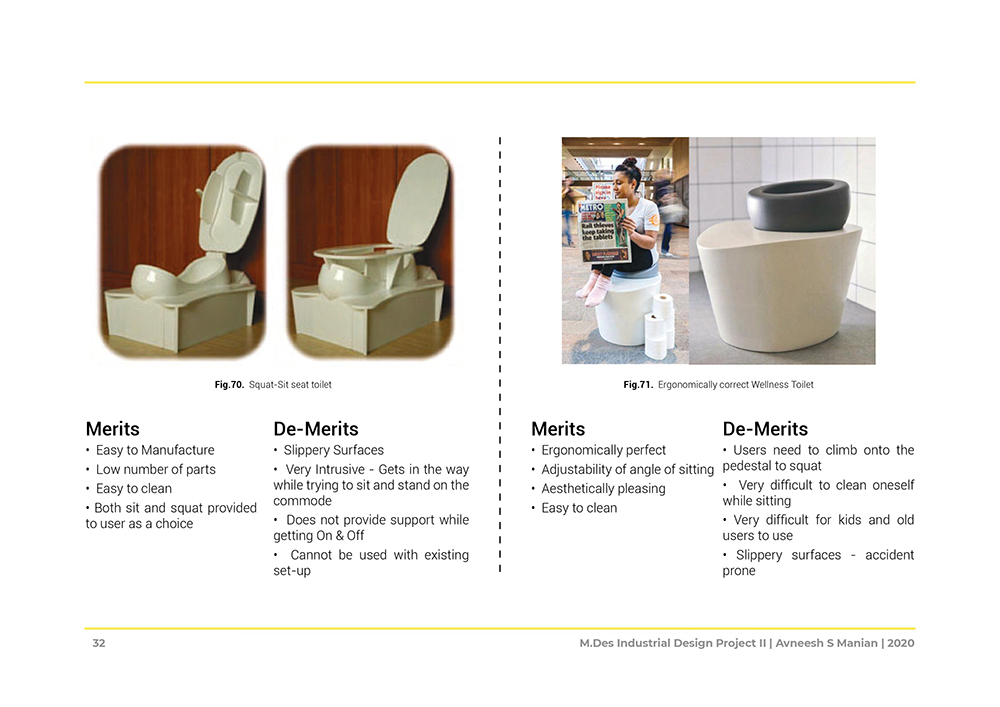

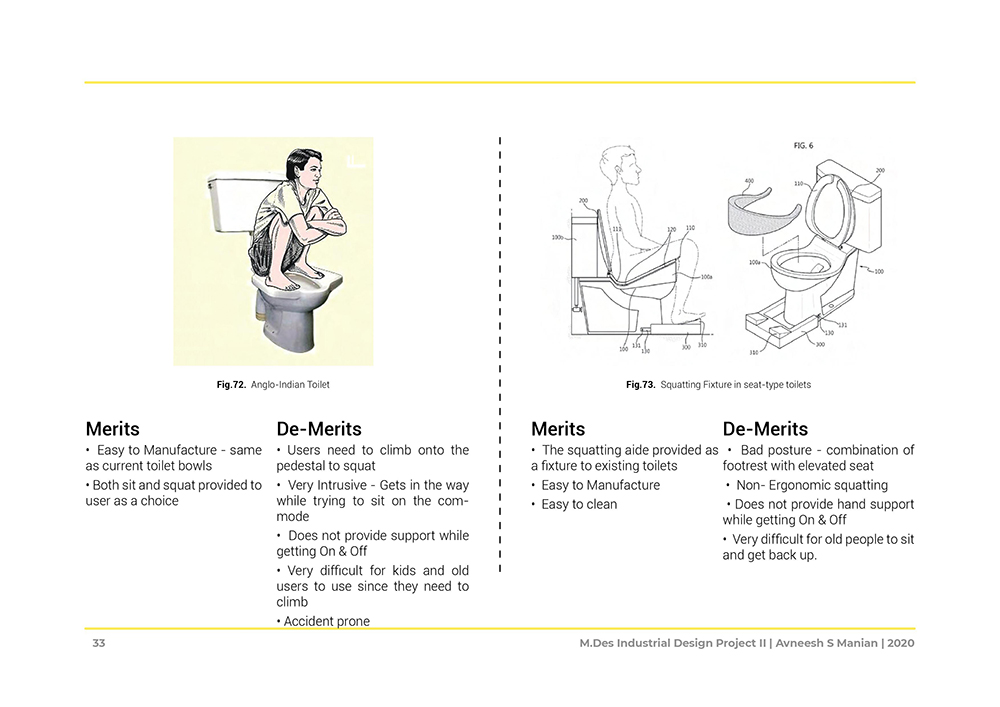

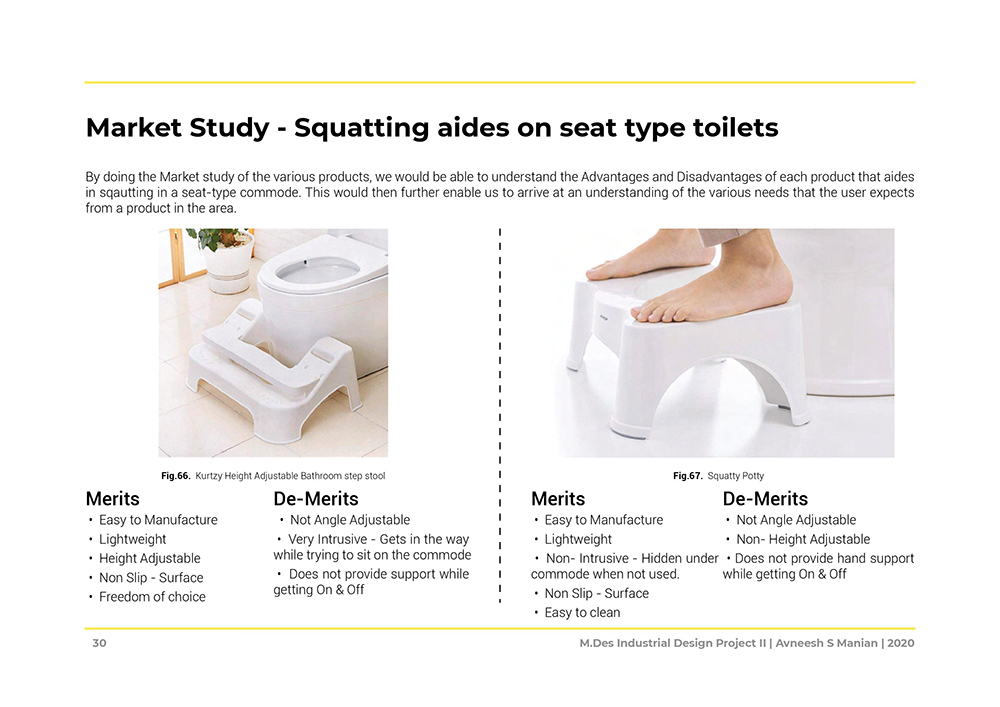

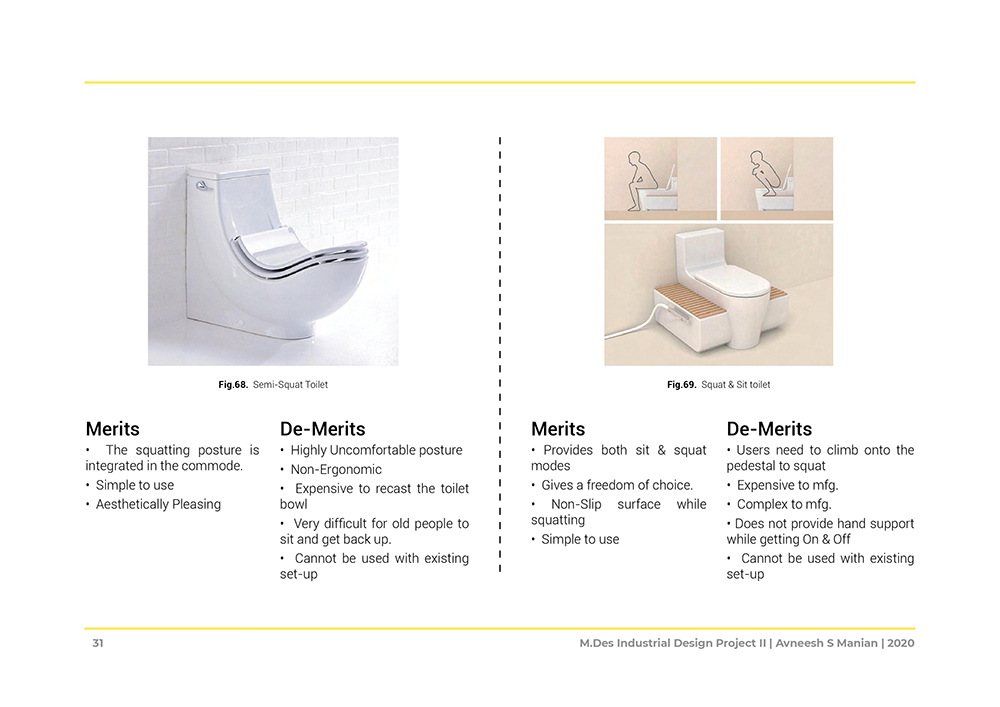

- Market Study - Squatting aides on seat type toilets
• Design Brief

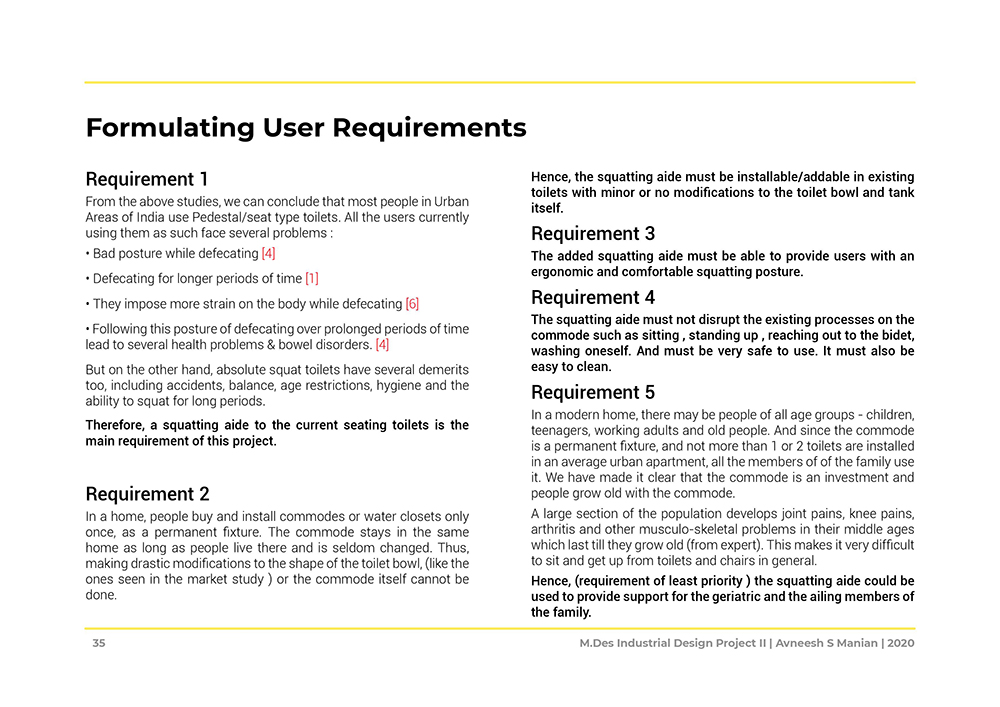

- Formulating user Requirements

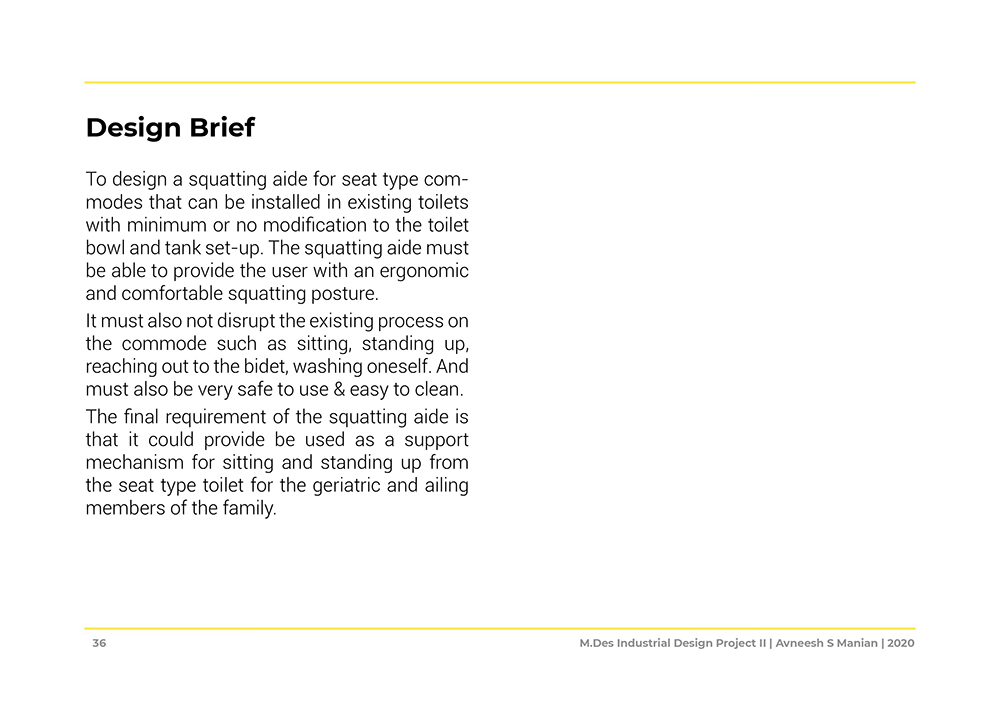

- Design Brief
• Initial Ideations

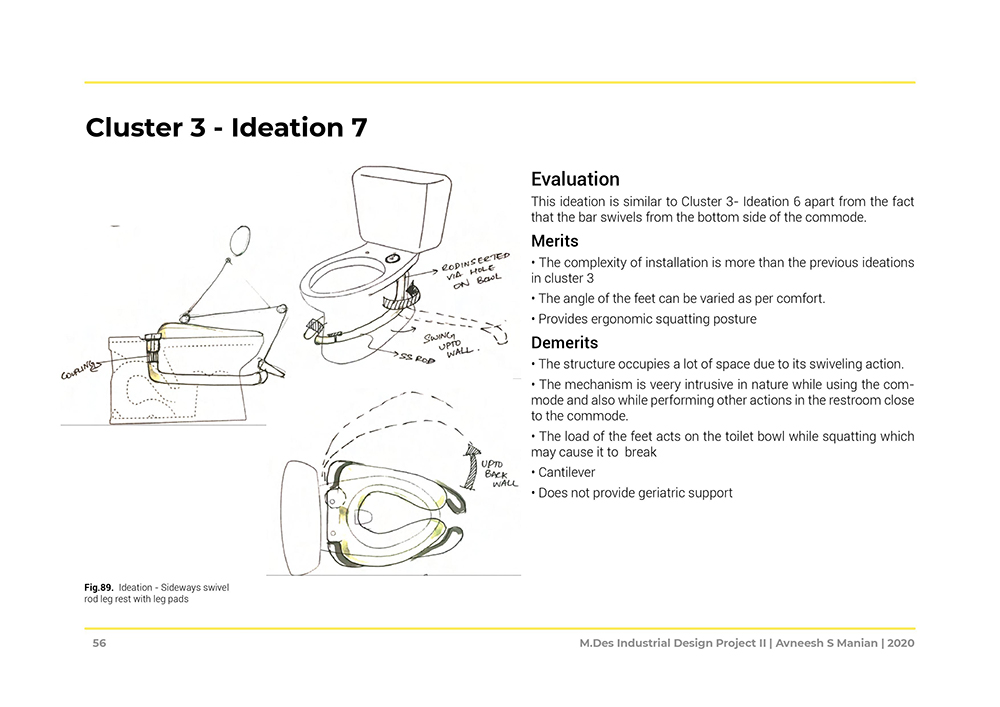

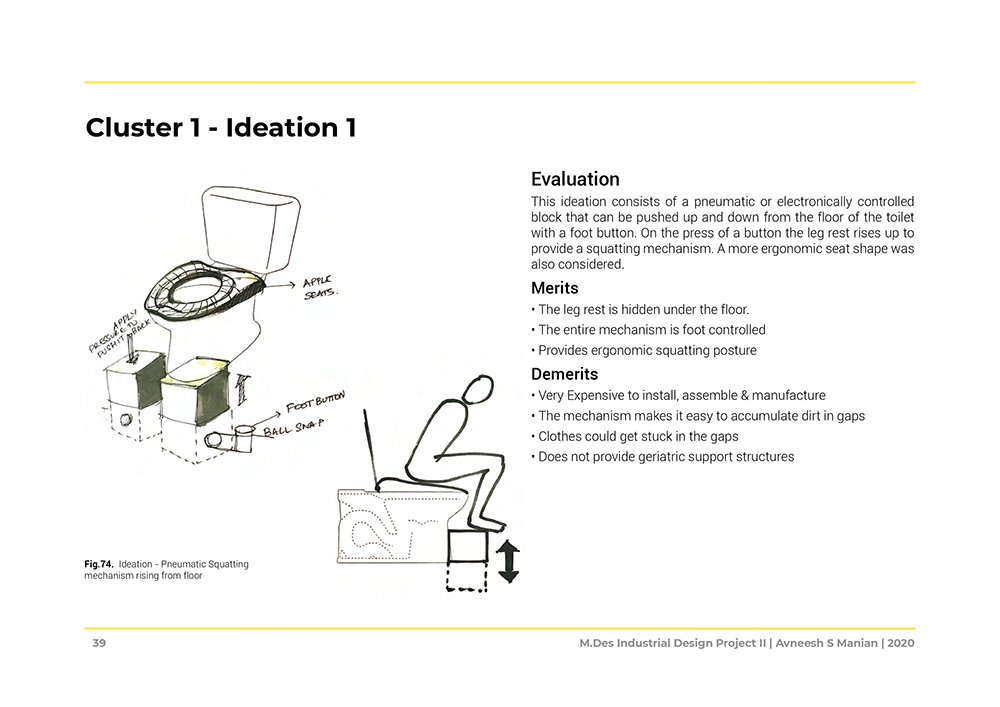

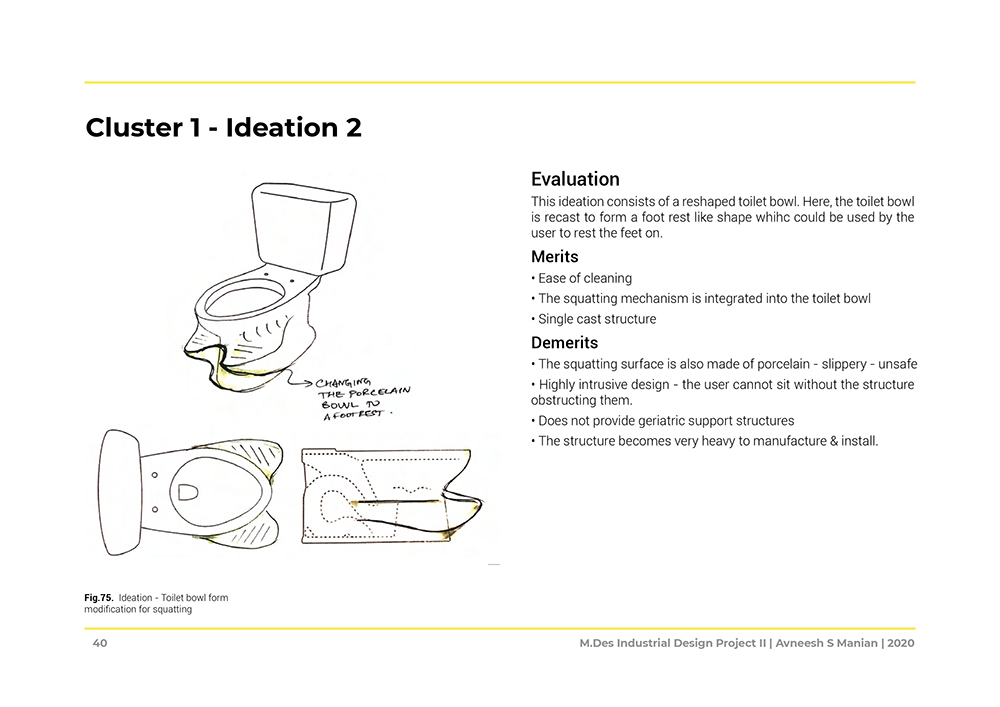

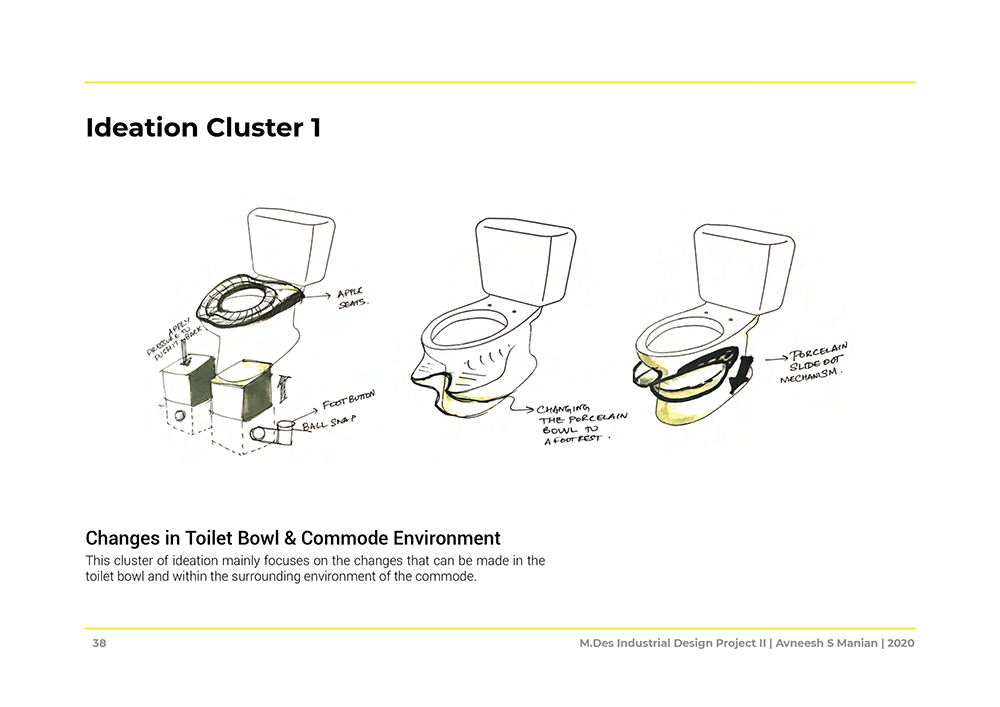

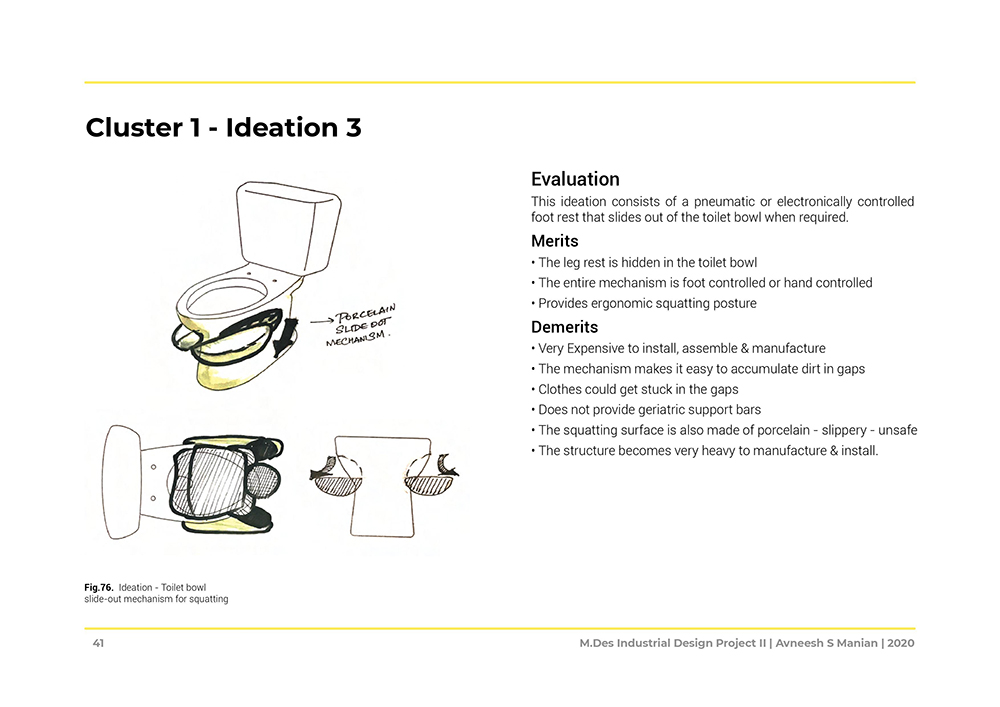

- Ideation Cluster 1

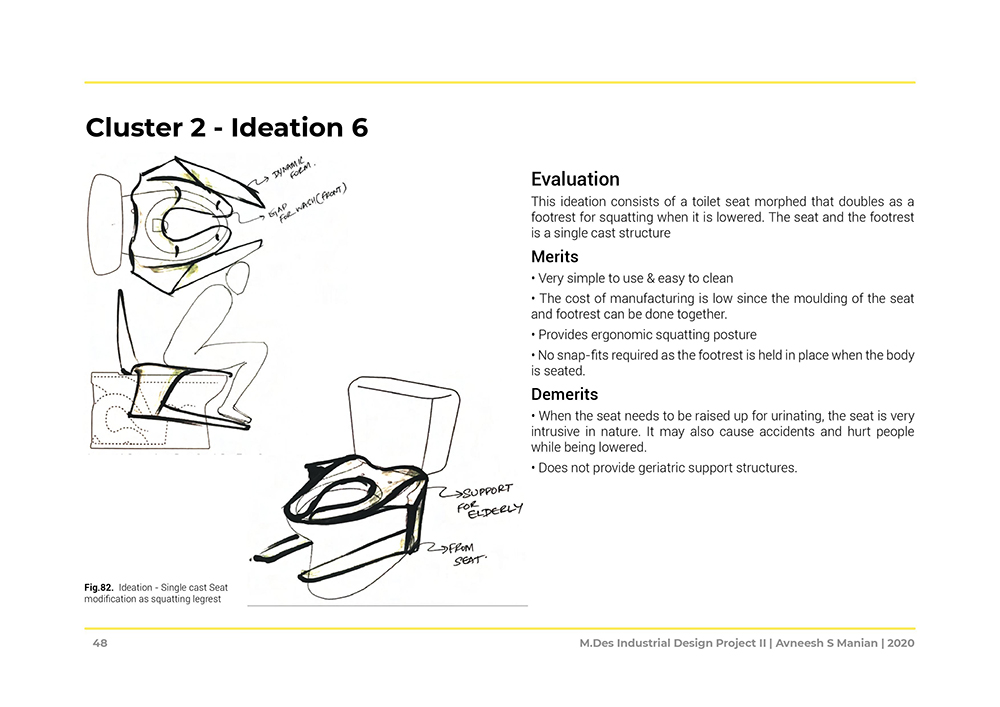

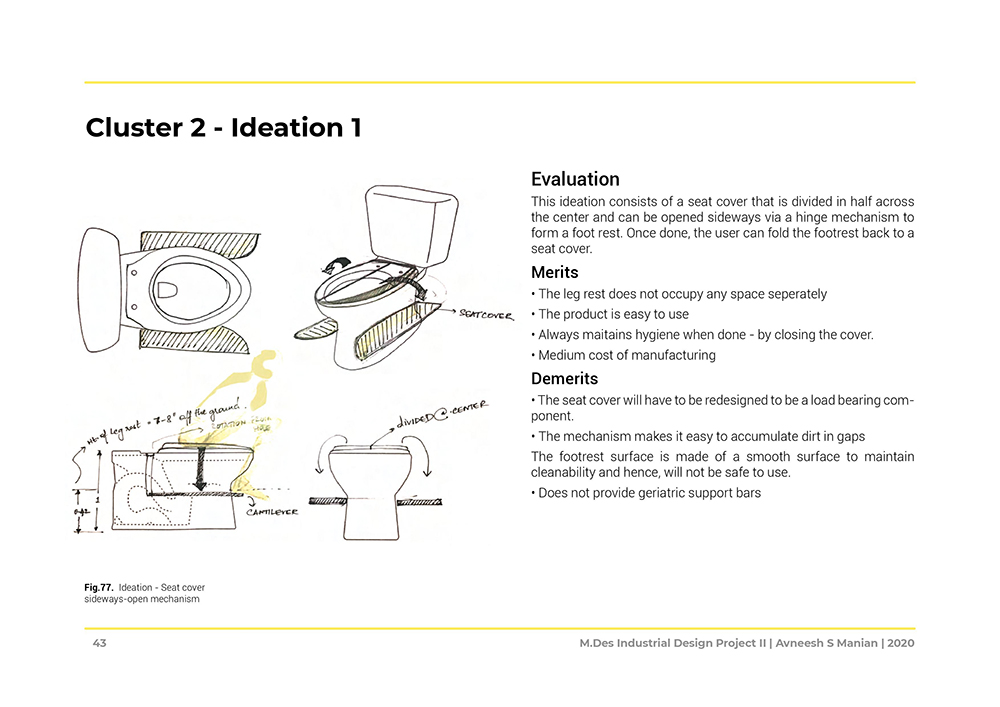

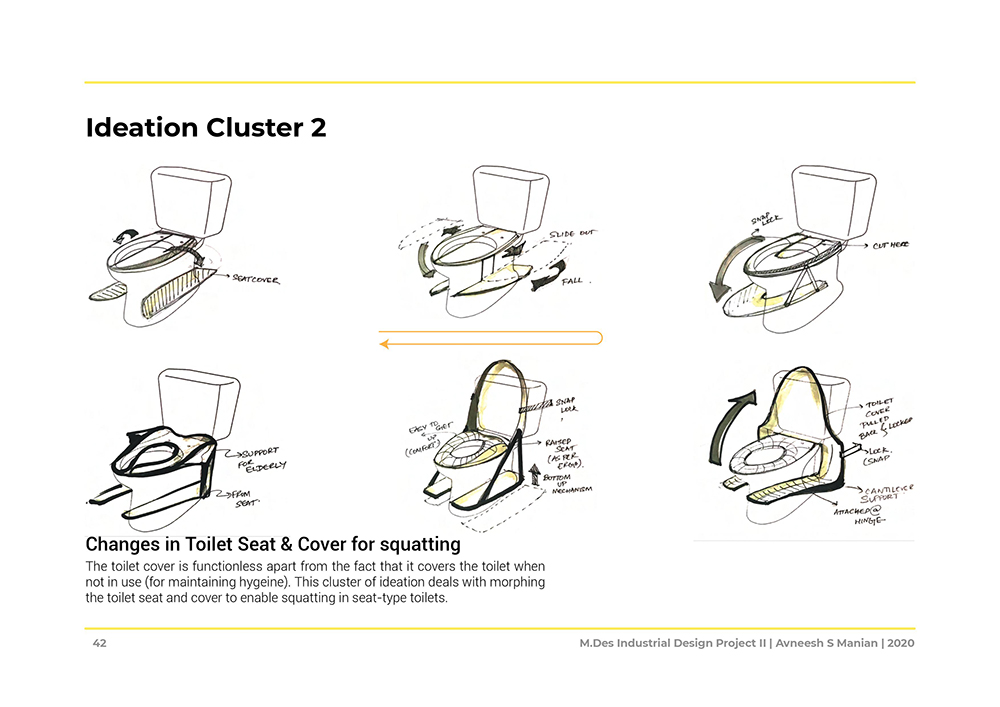

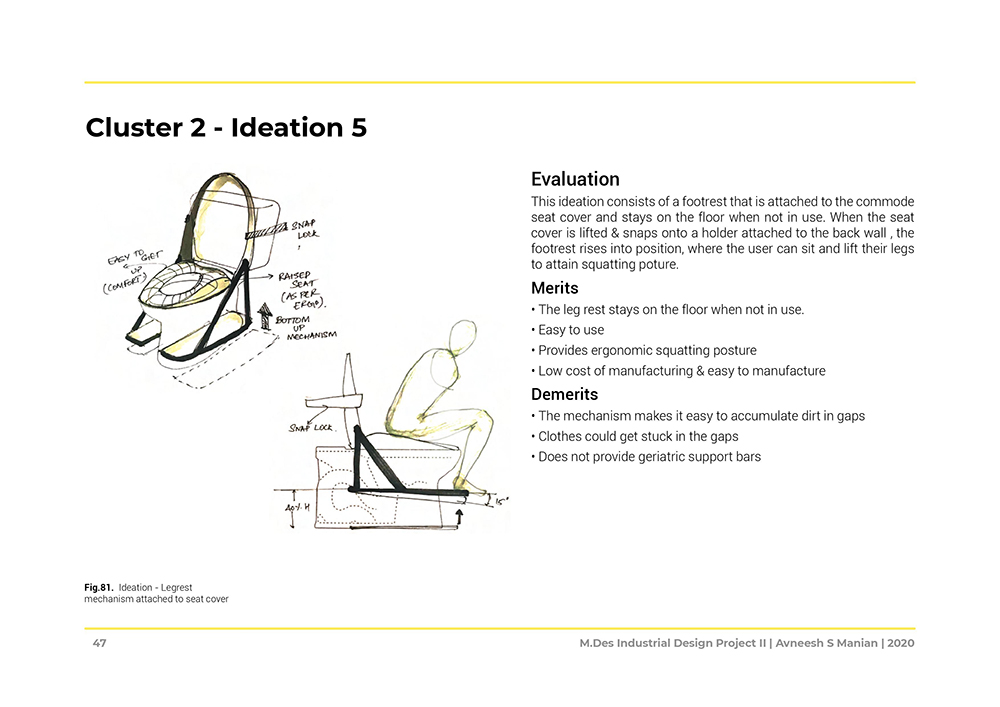

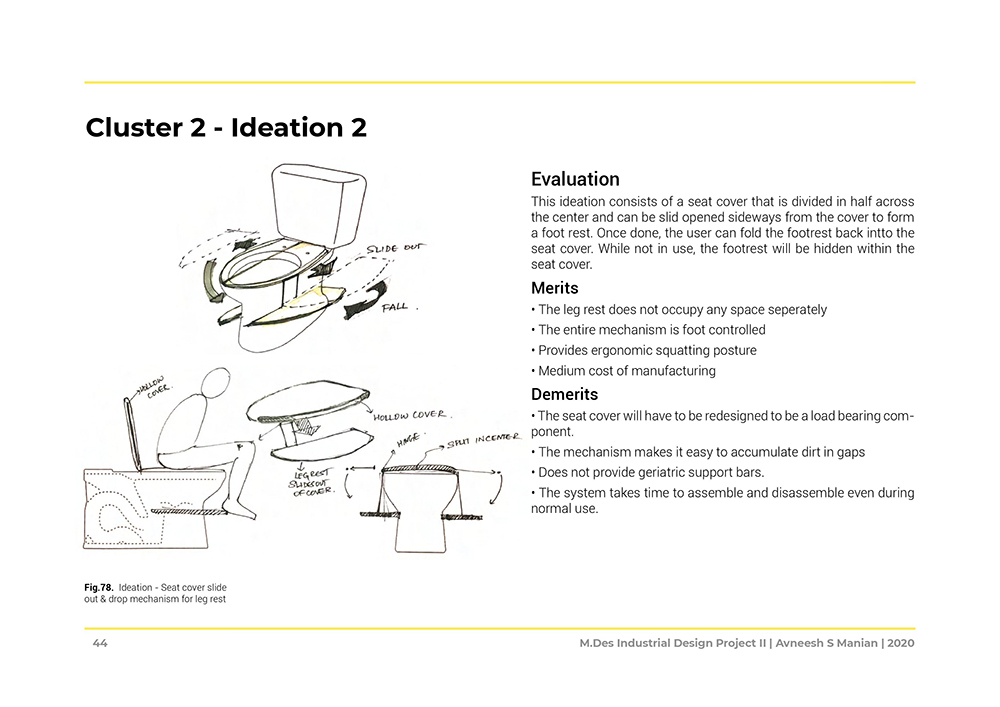

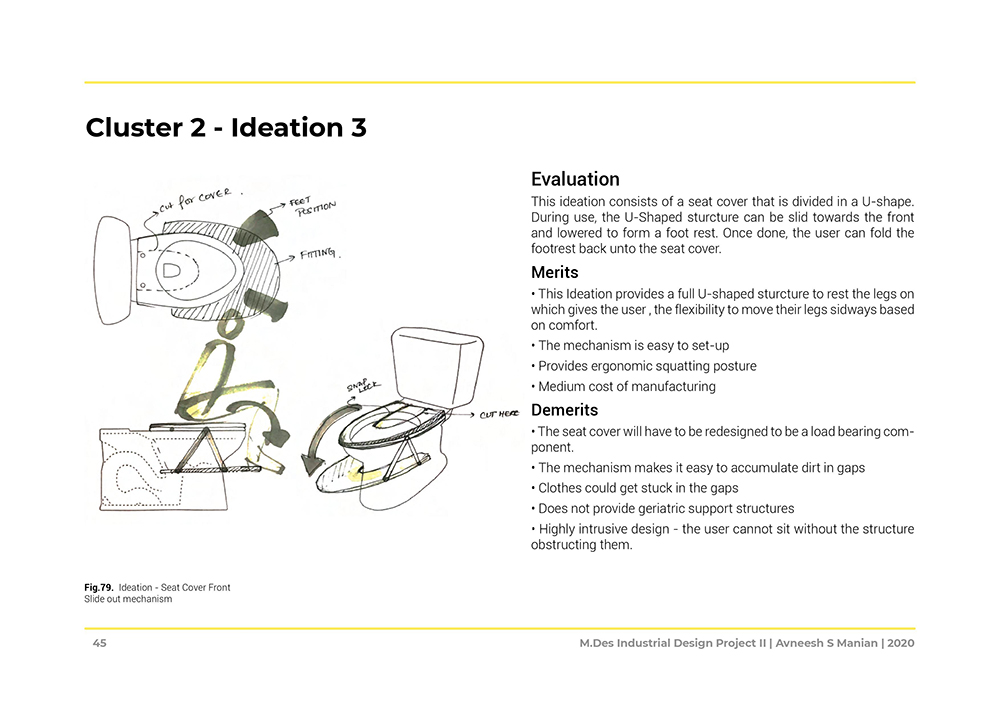

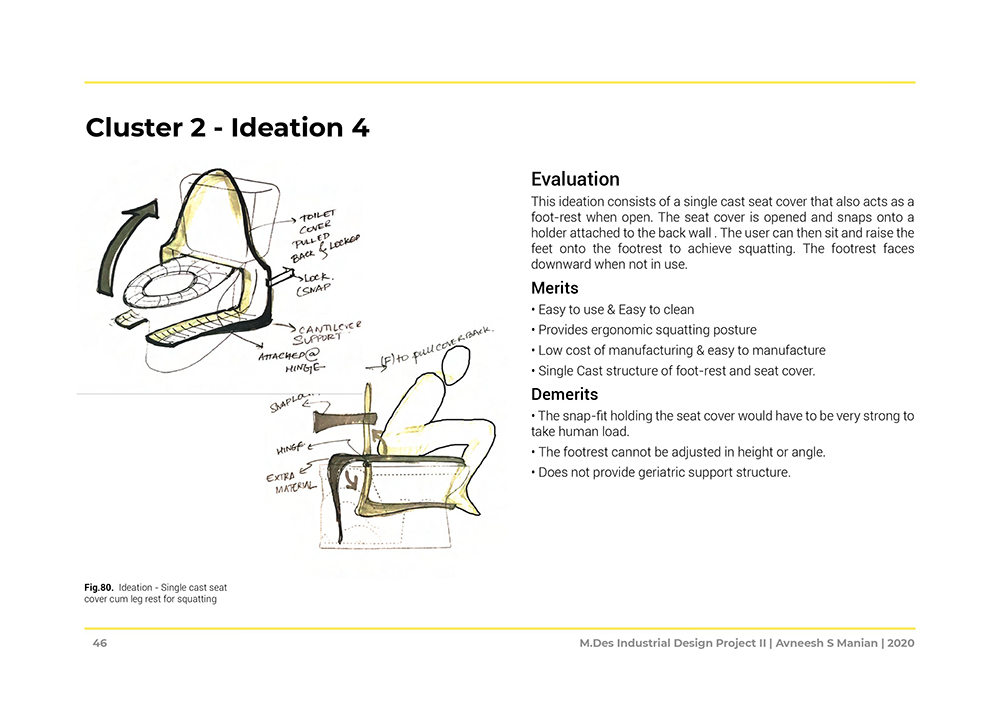

- Ideation Cluster 2

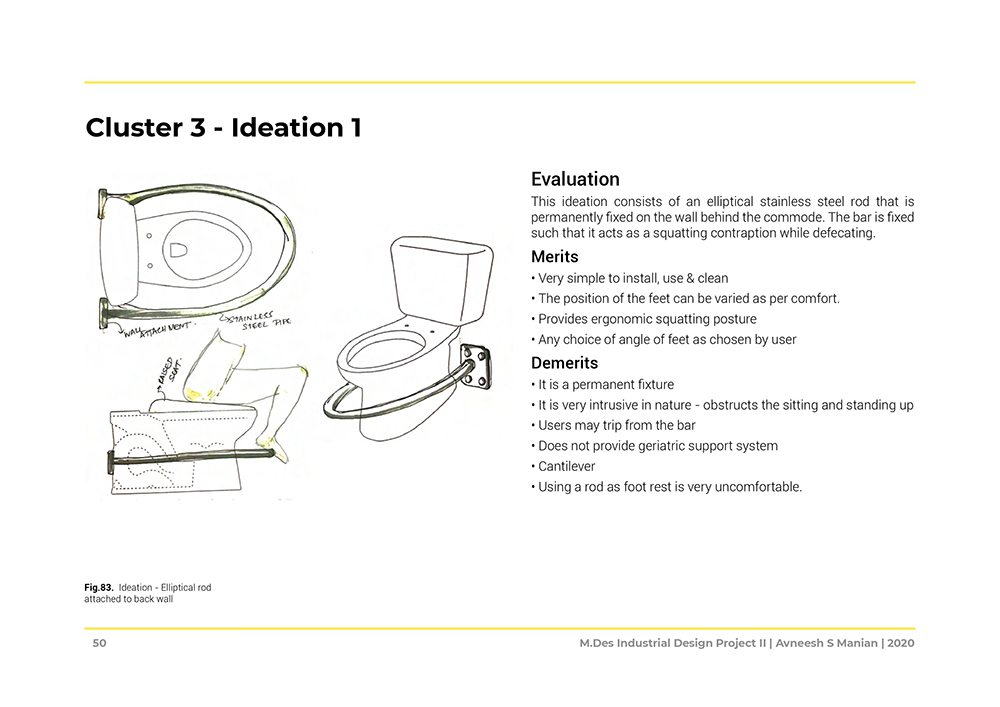

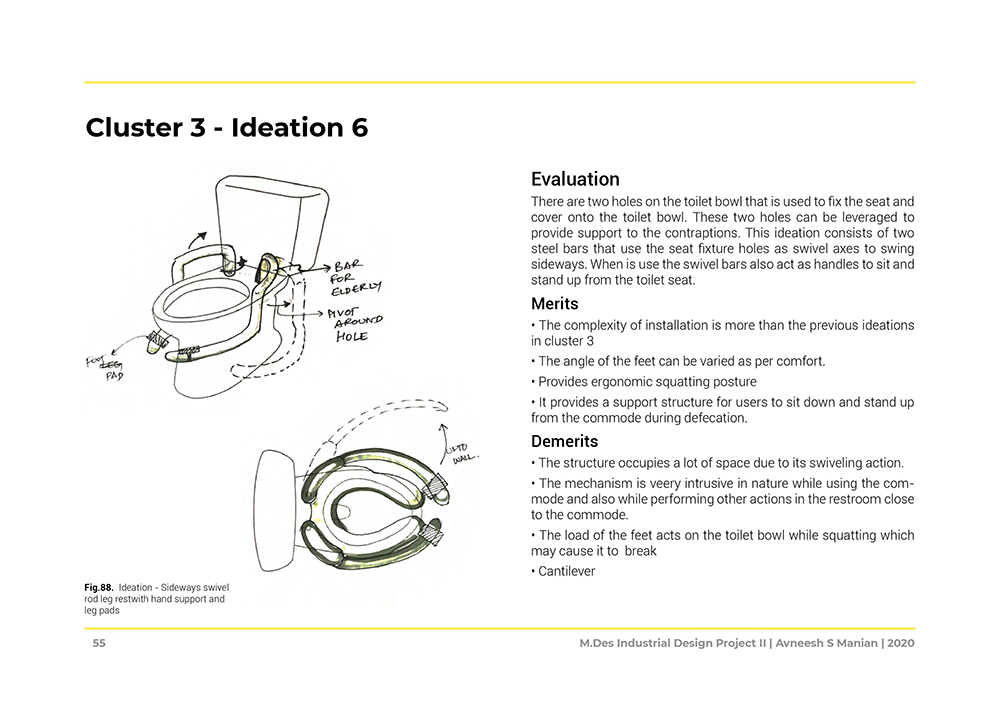

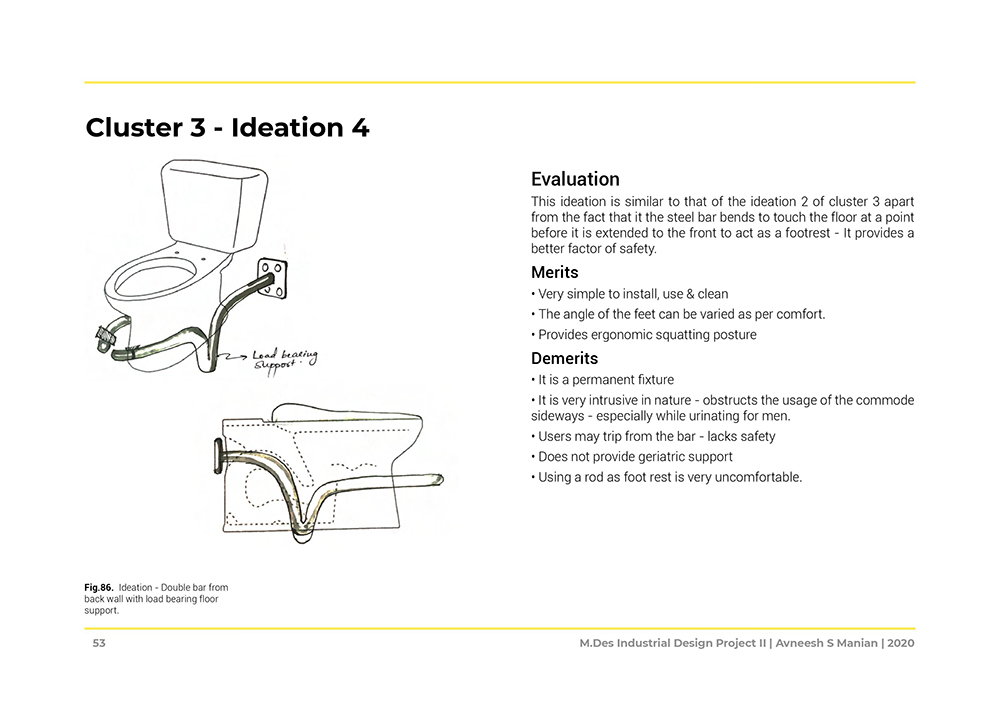

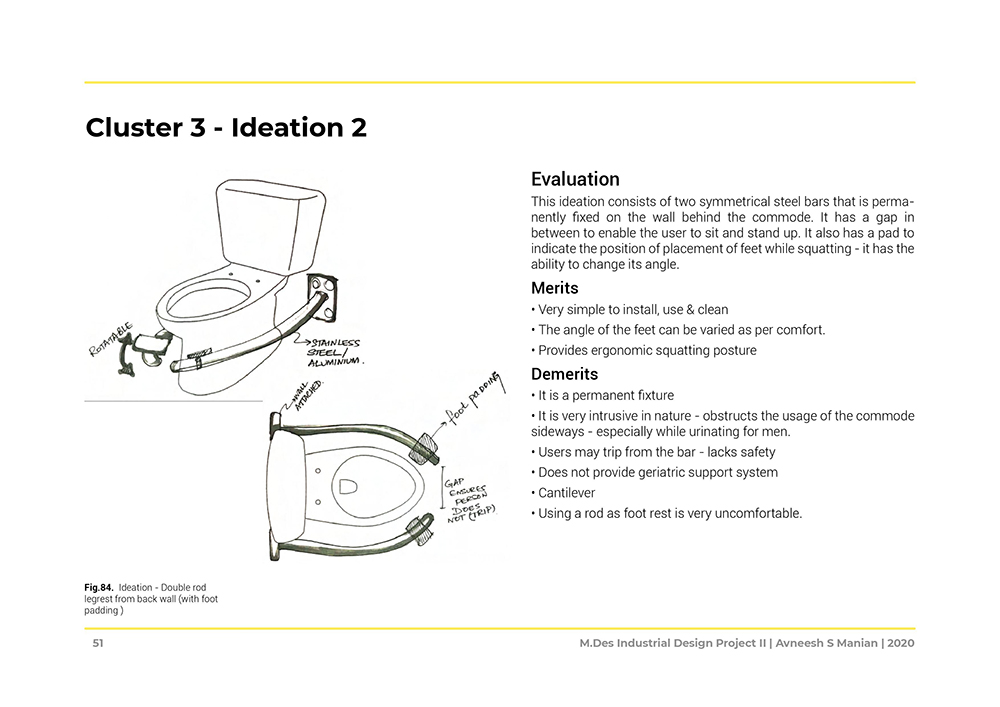

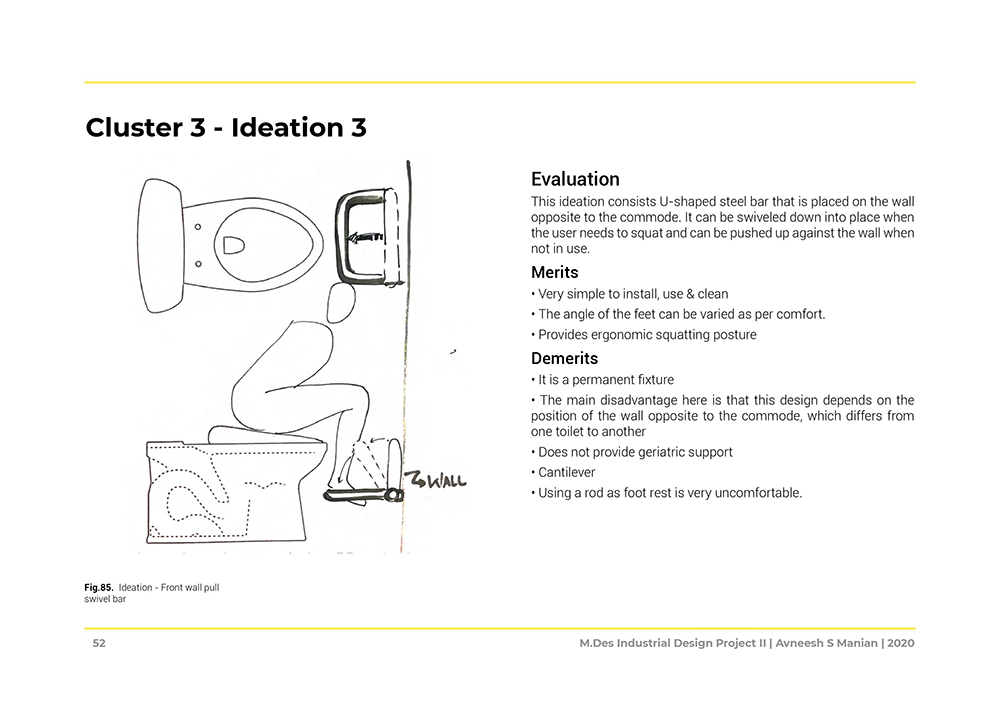

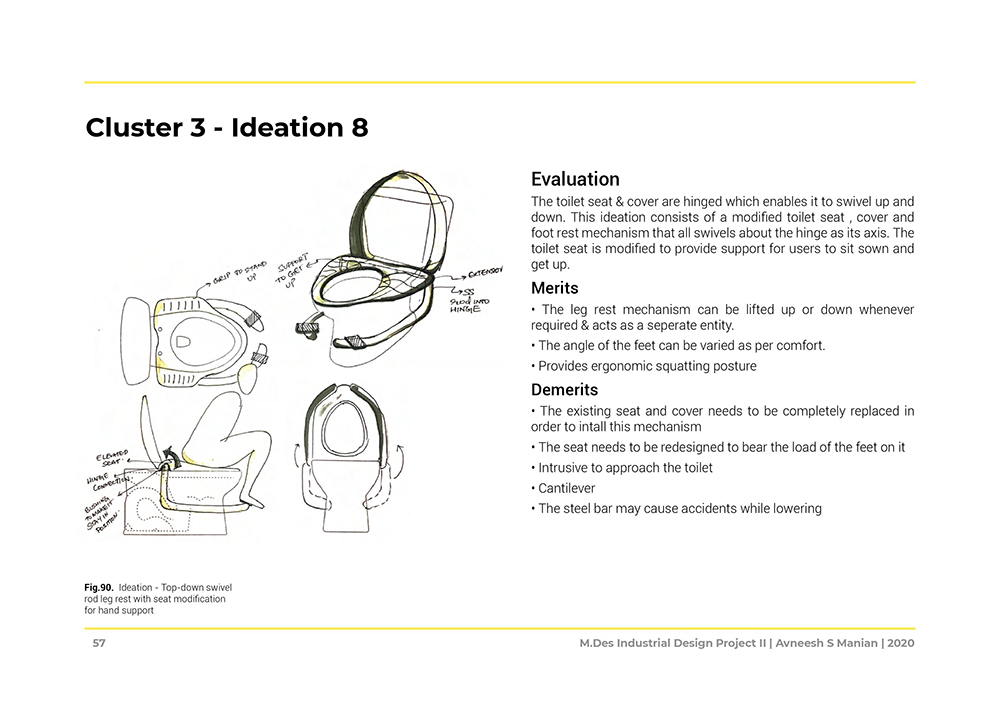

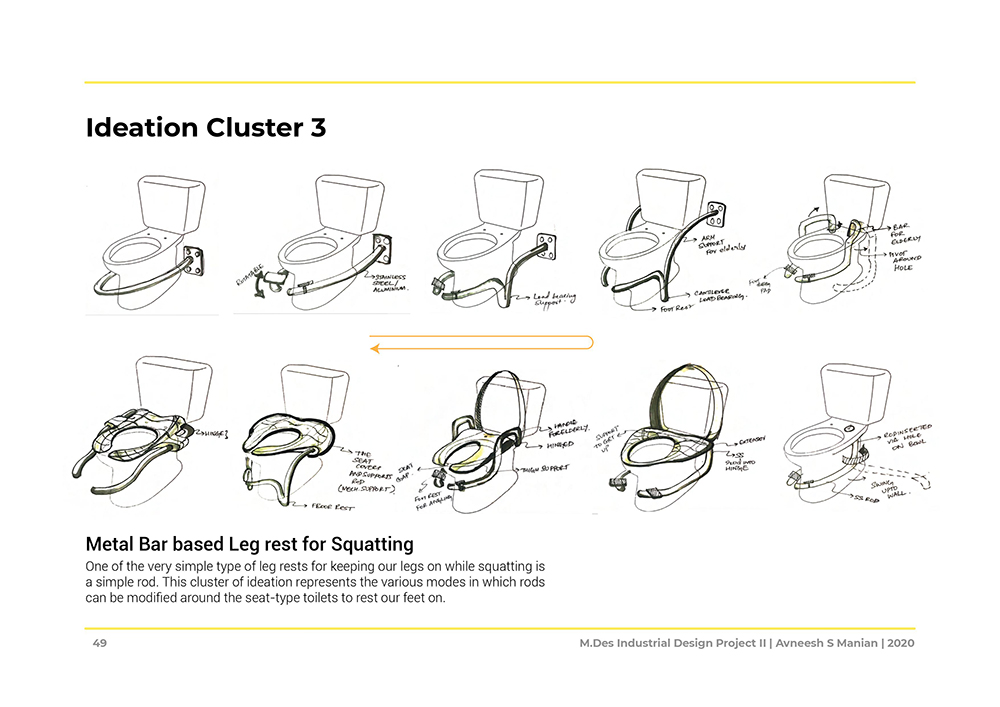

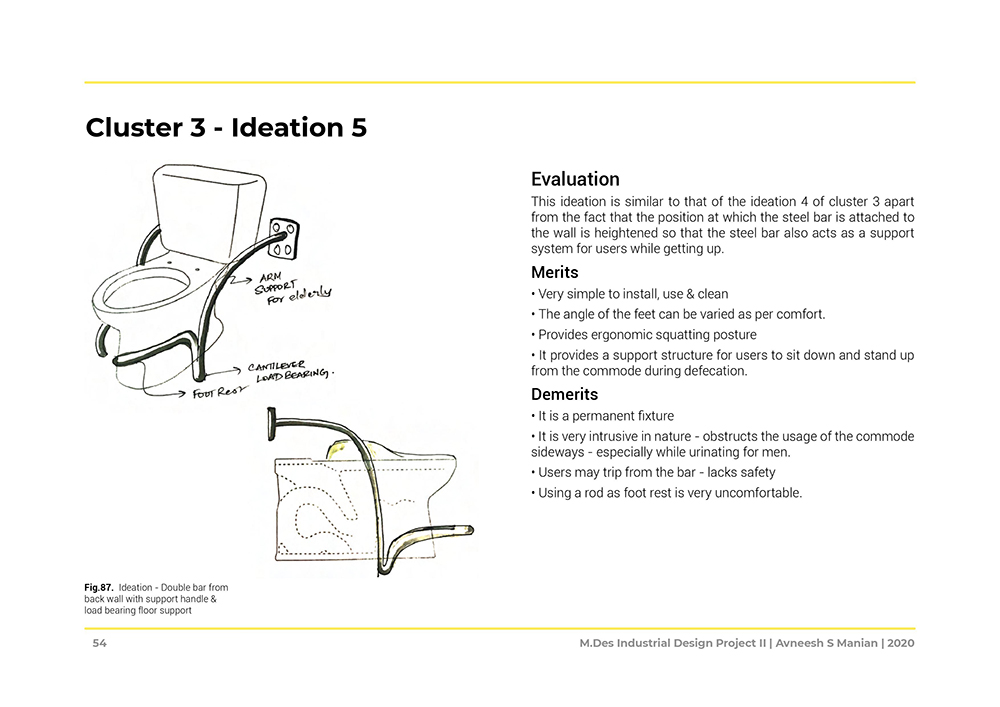

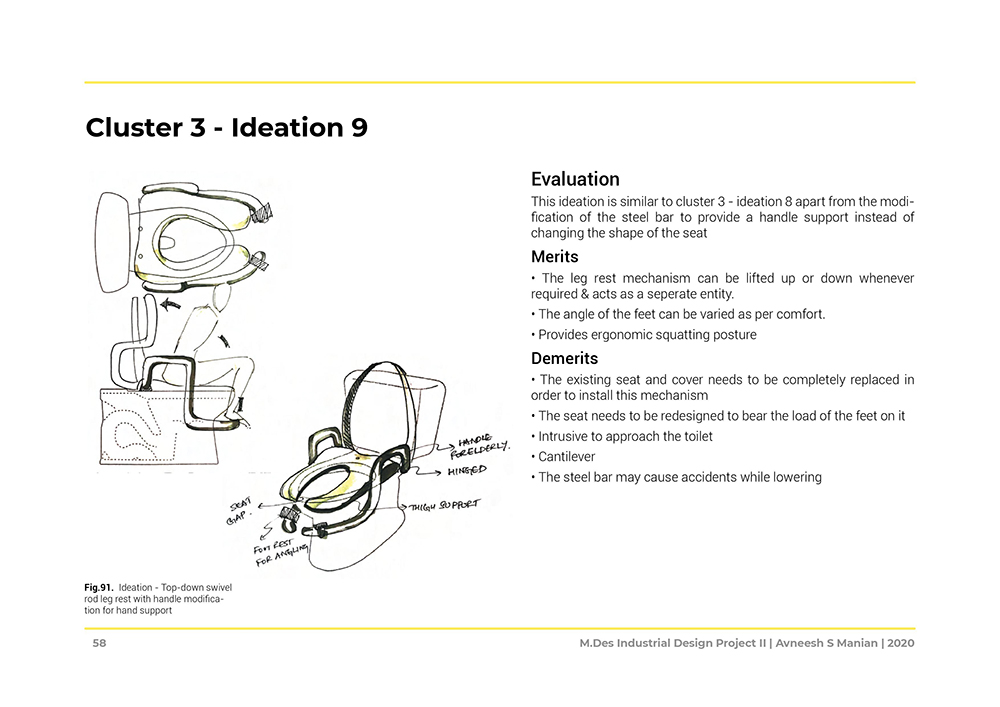

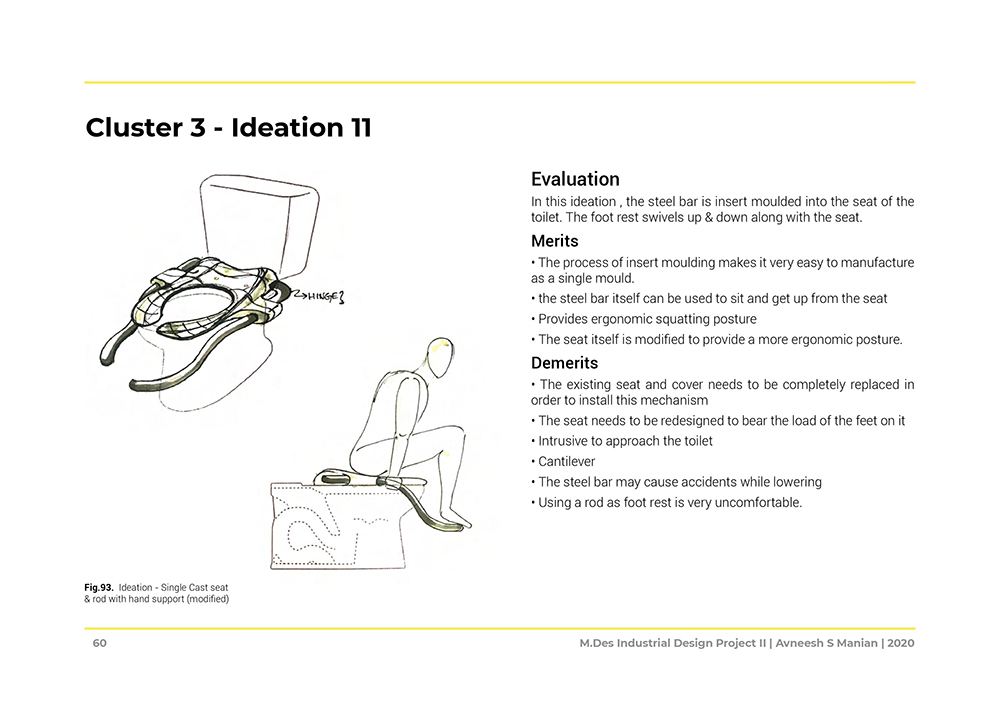

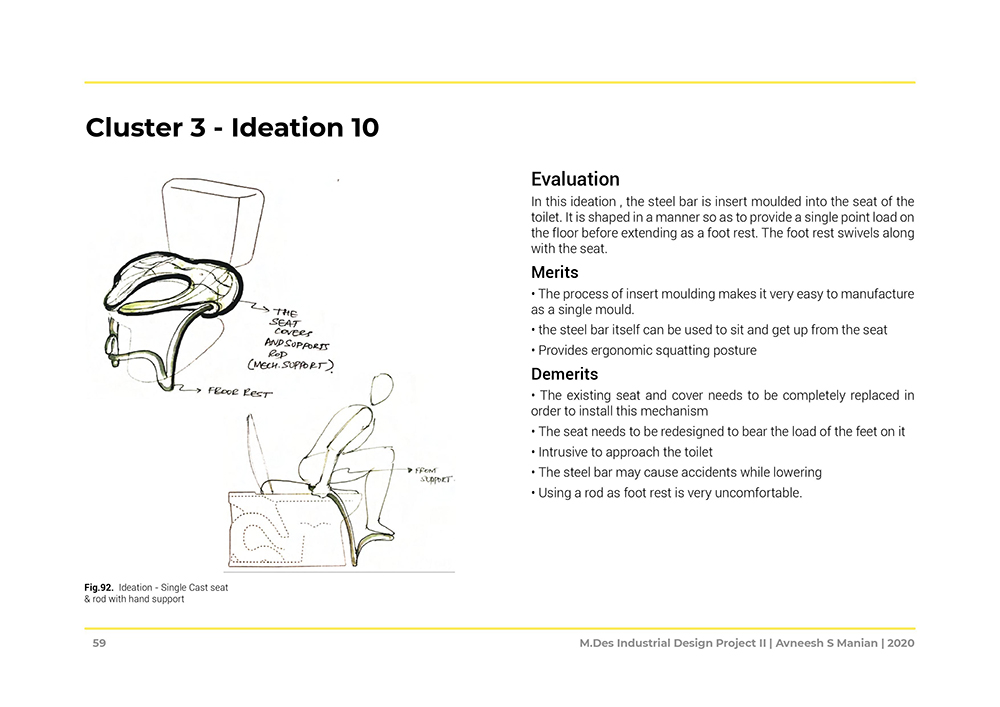

- Ideation Cluster 3

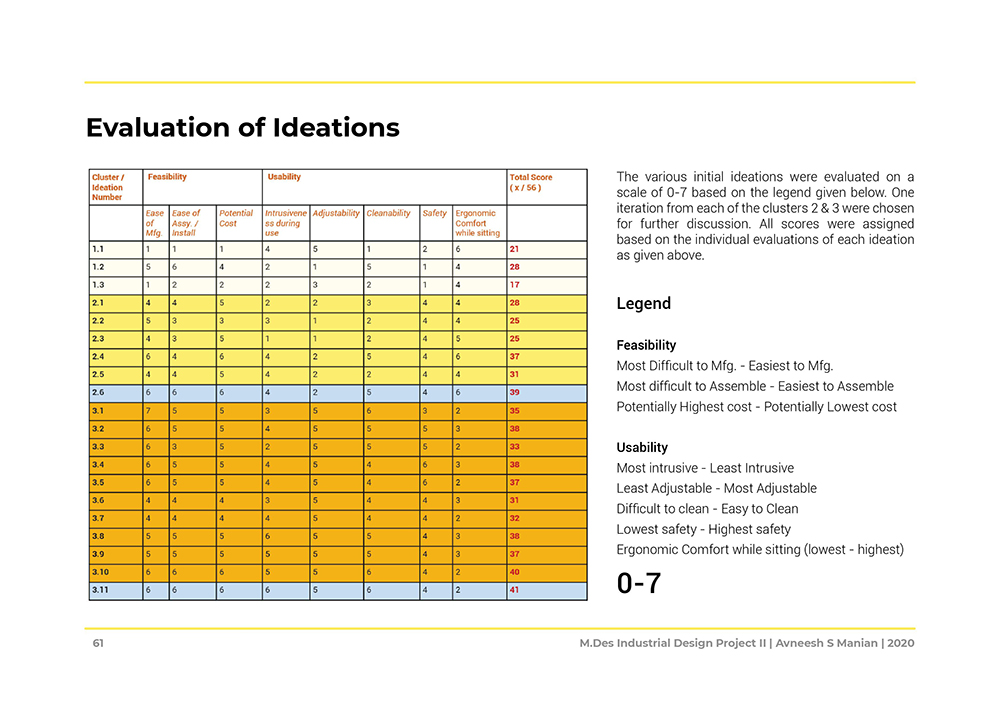

- Evaluation of Ideations

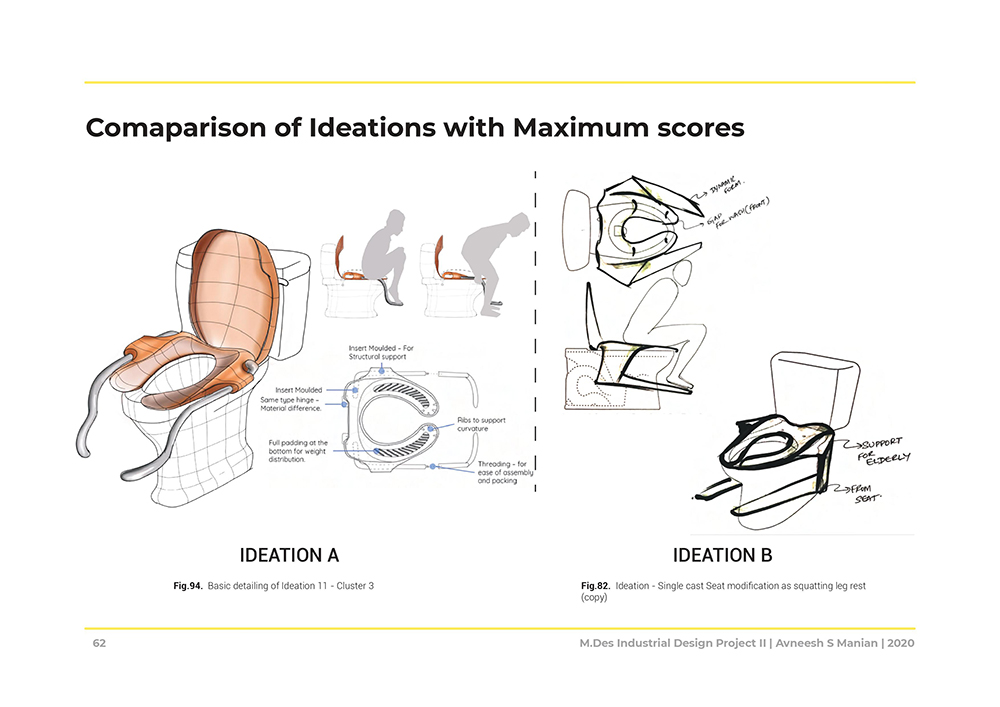

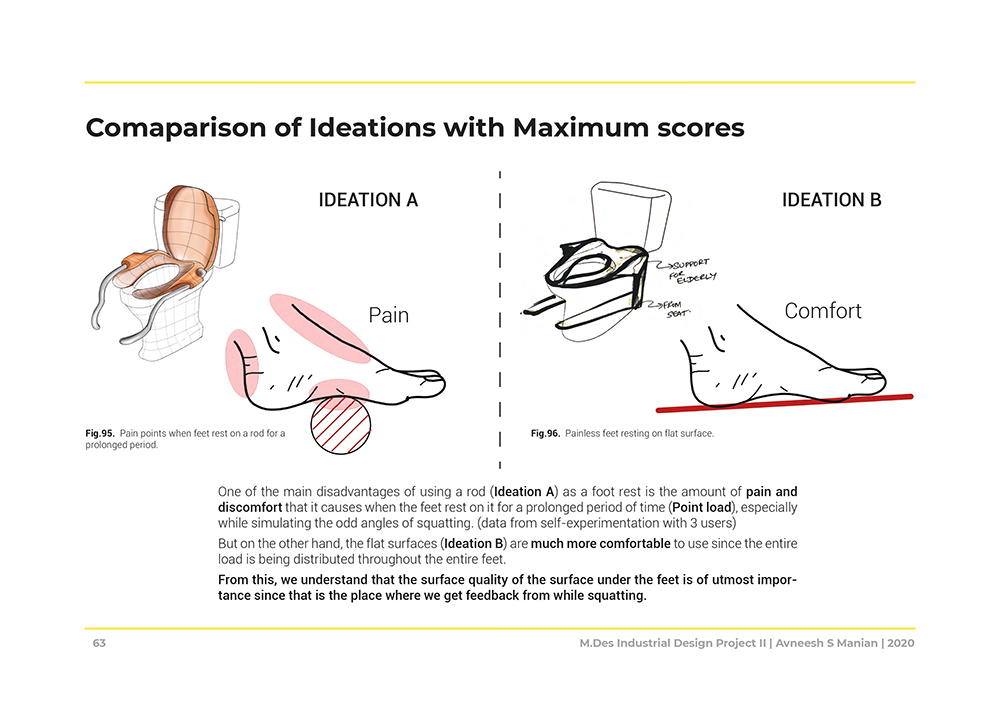

- Comparison of selected Ideations

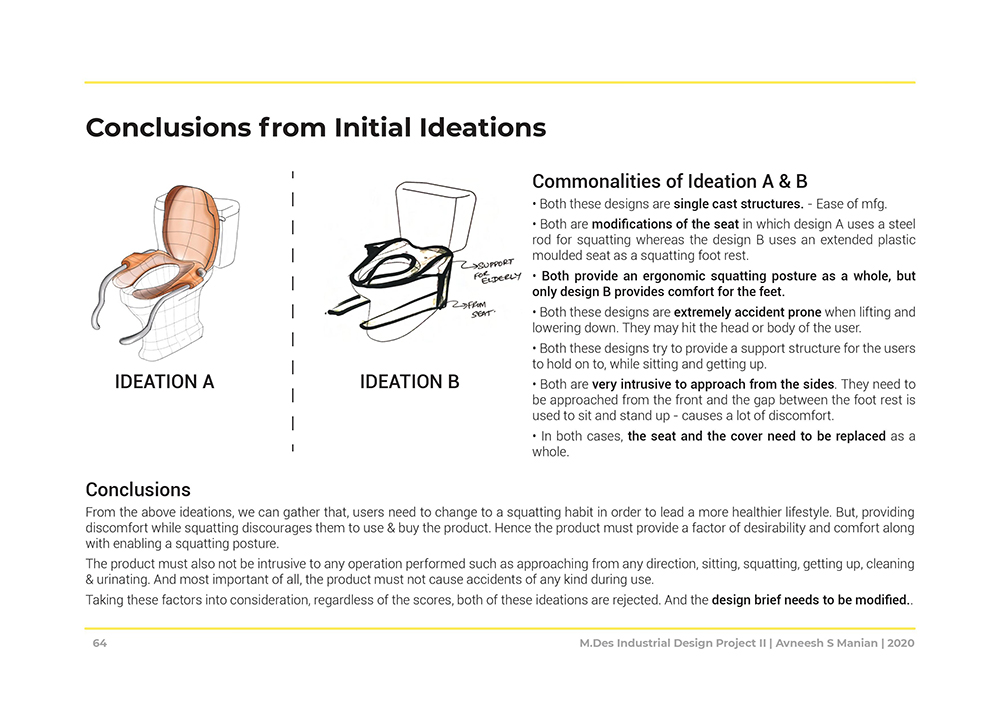

- Conclusions from Initial Ideations
• Literature Study

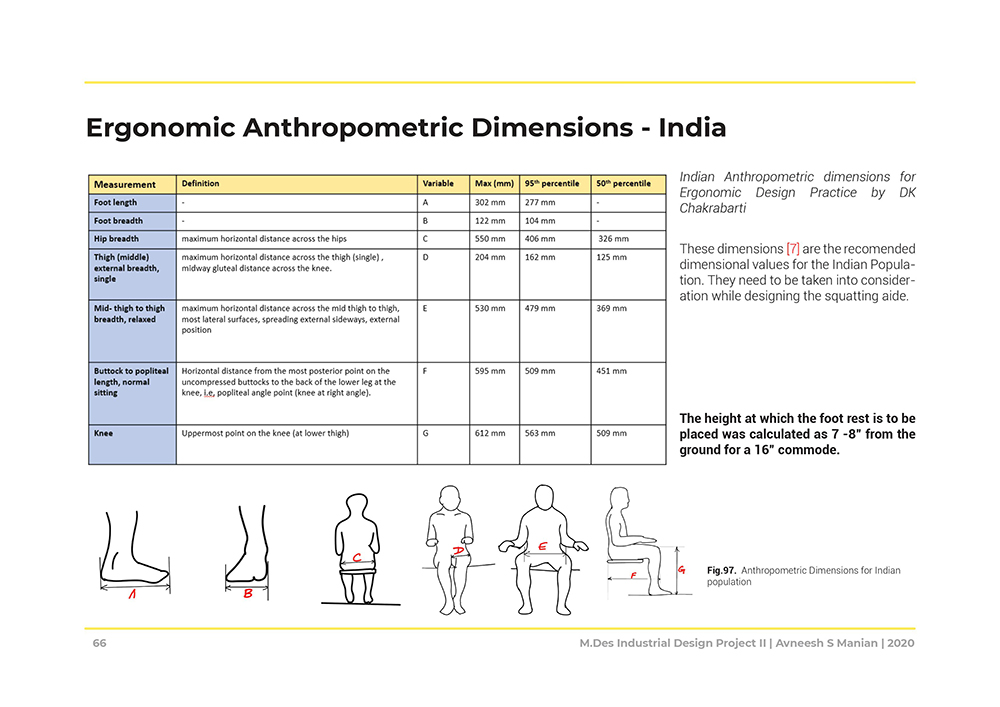

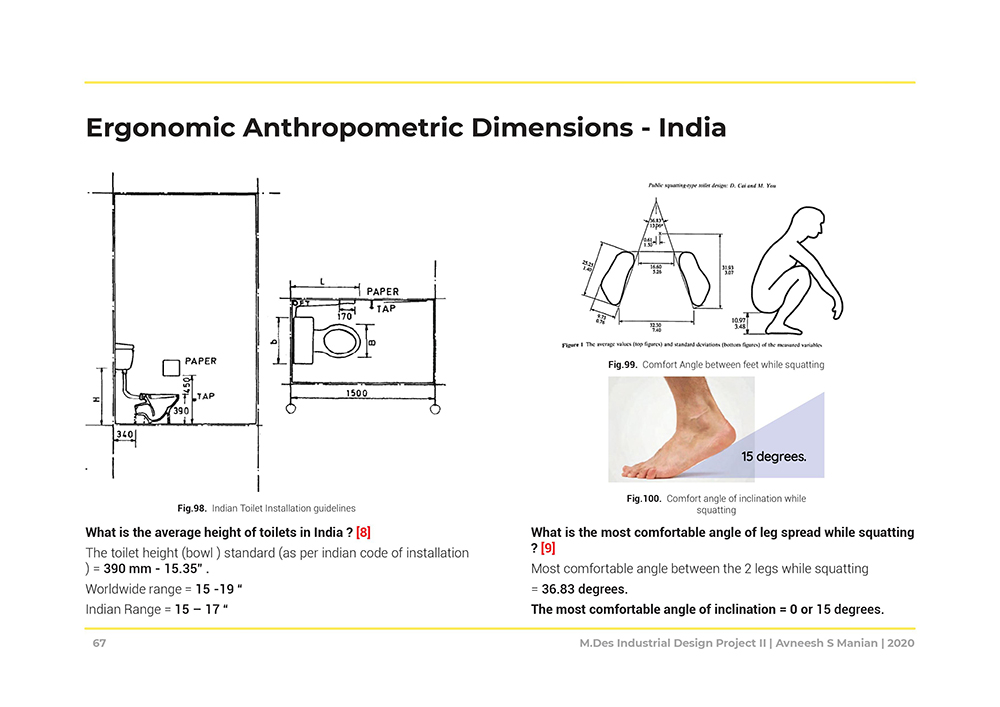

- Ergonomic Anthropometric Dimensions - India

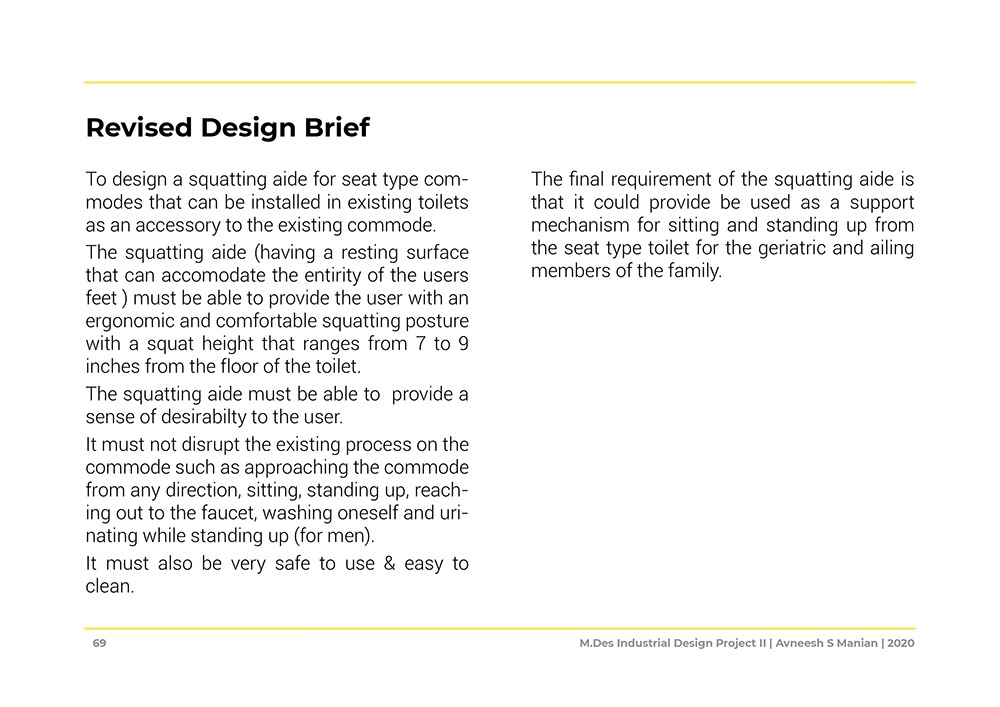

• Revised Design Brief
• Designing for Senses

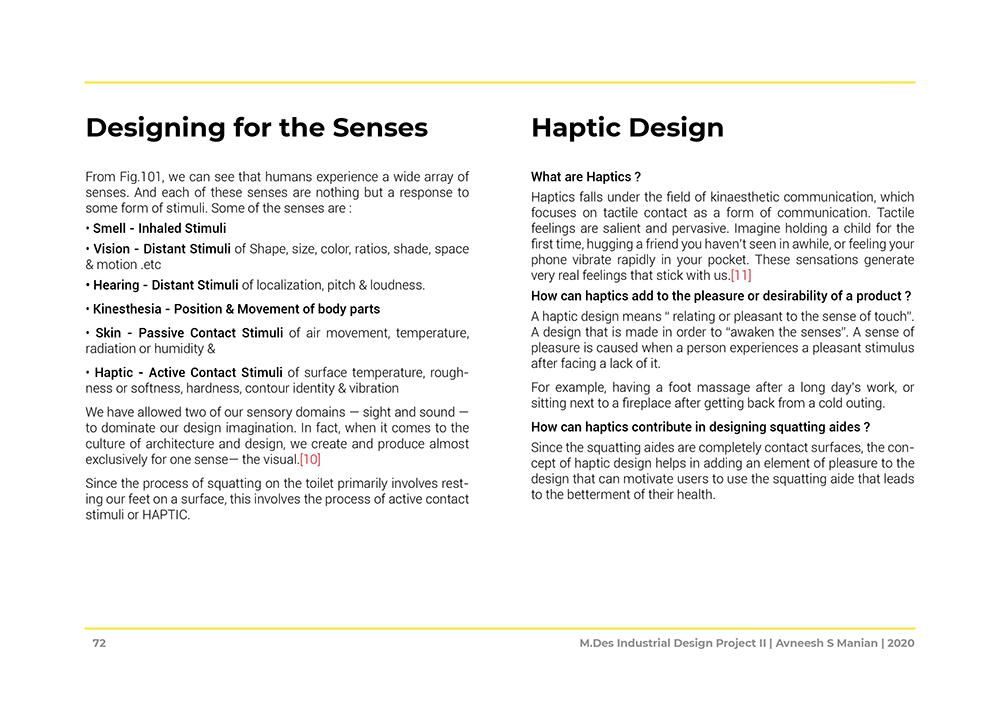

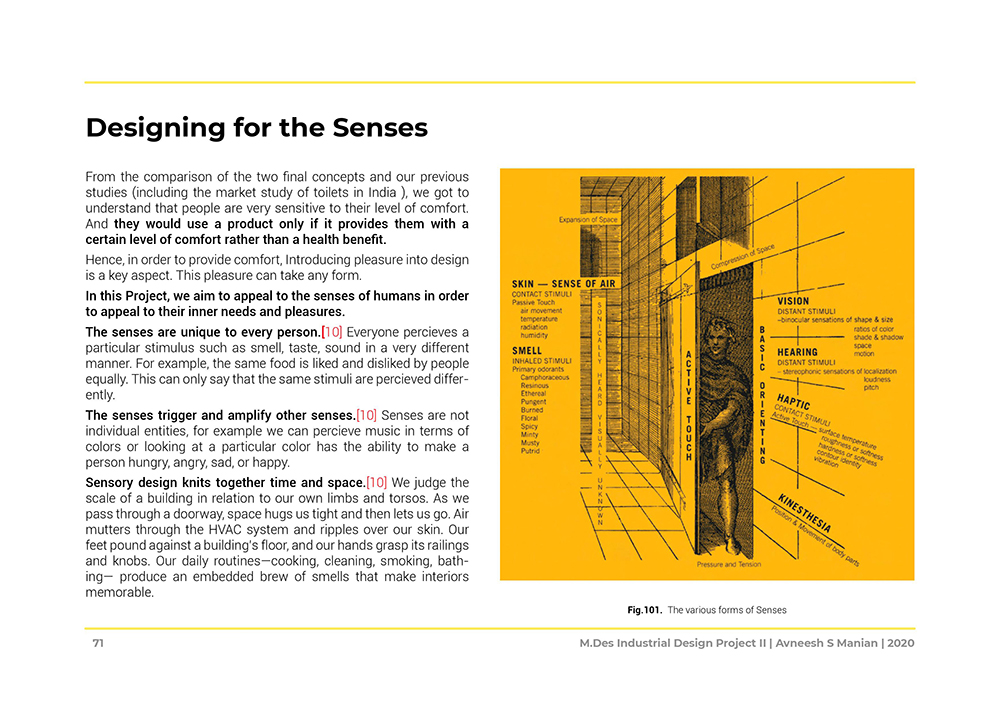

- Designing for the senses
- Haptic design

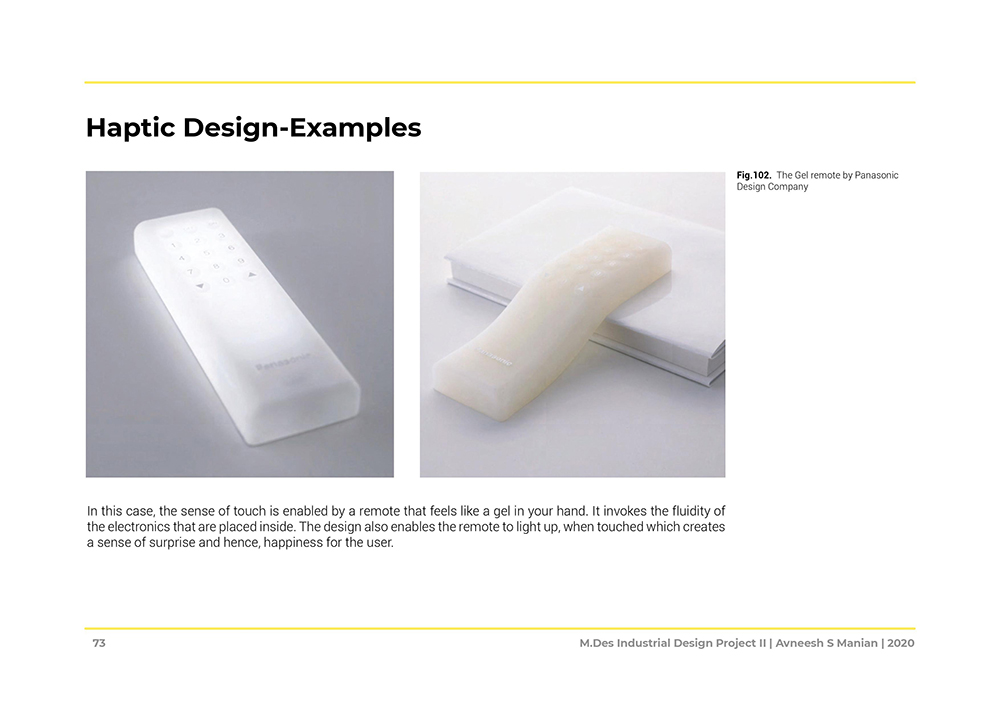

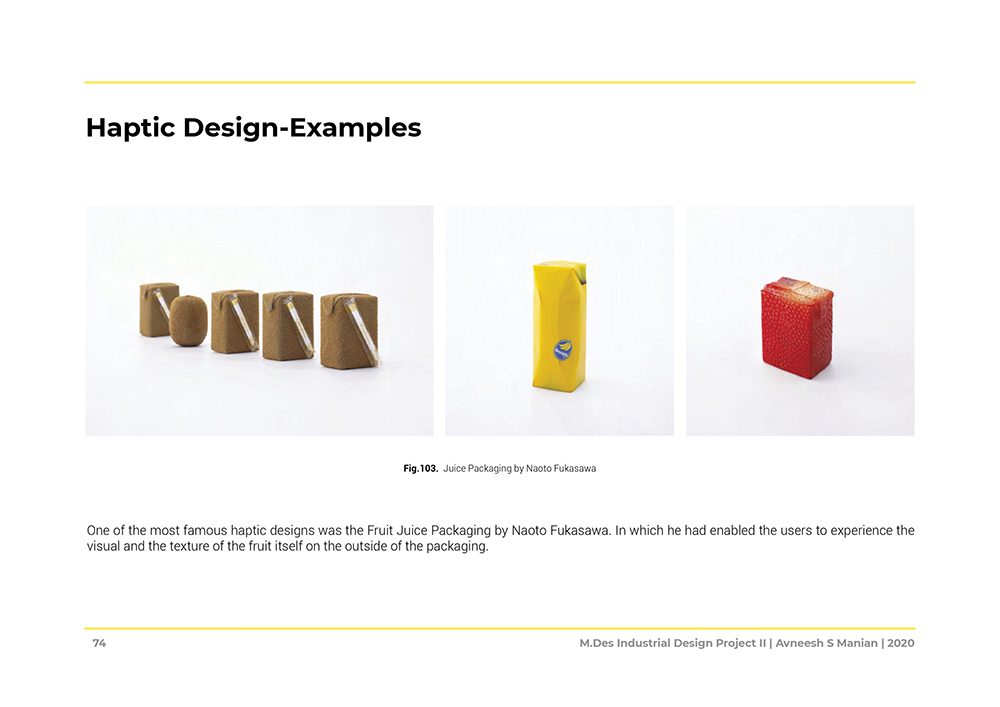

- Haptic design - Examples

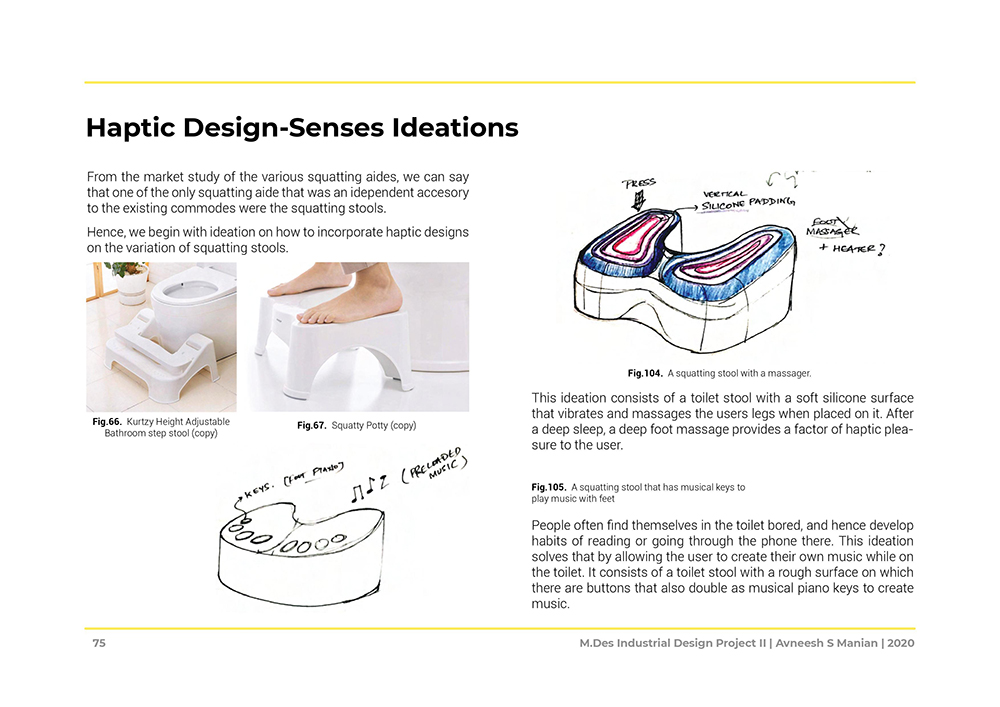

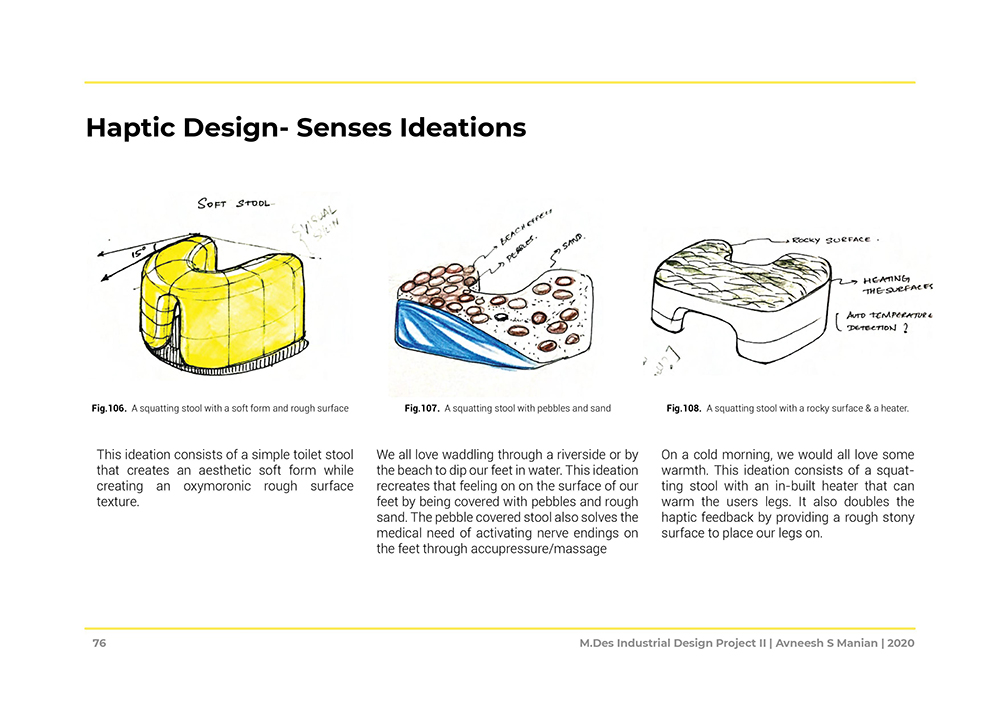

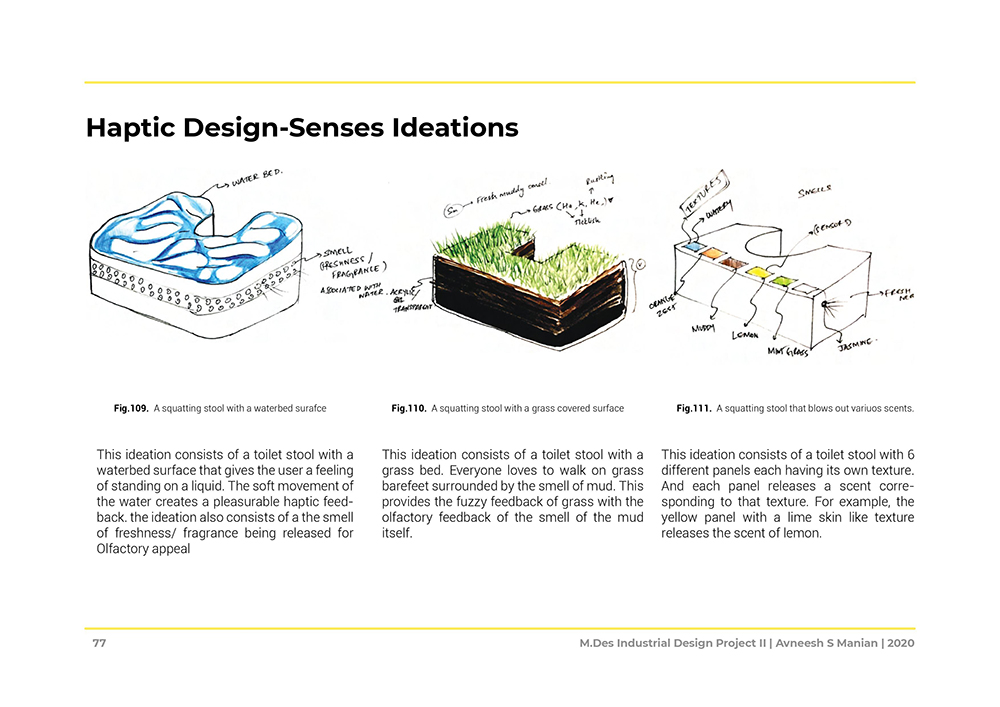

- Haptic design - Senses Ideation

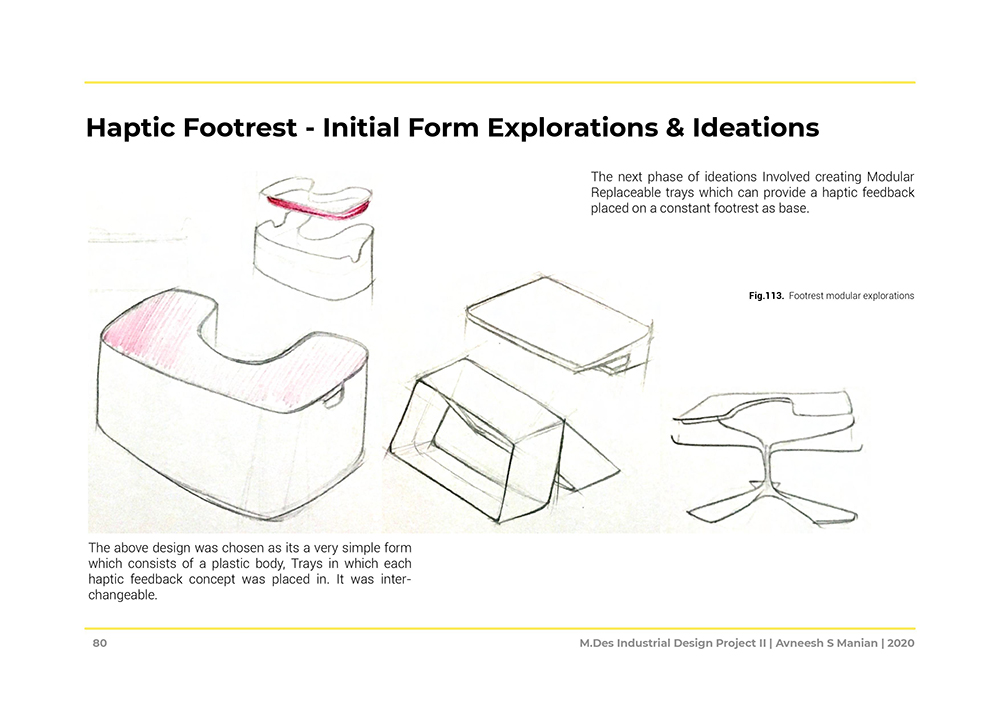

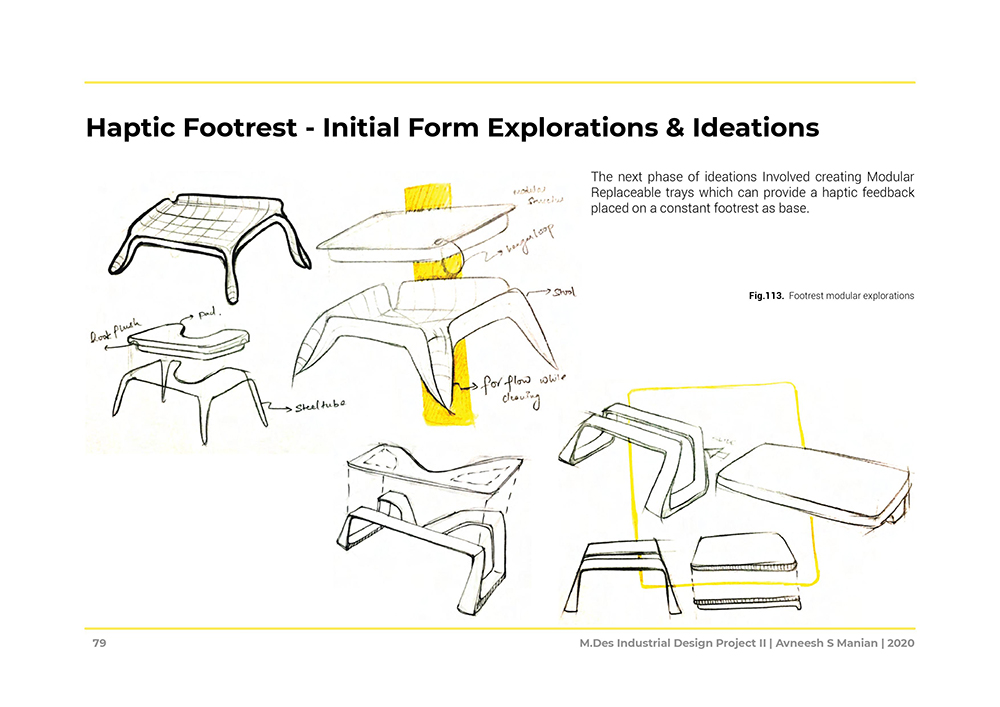

- Haptic design - Form Explorations & Ideations

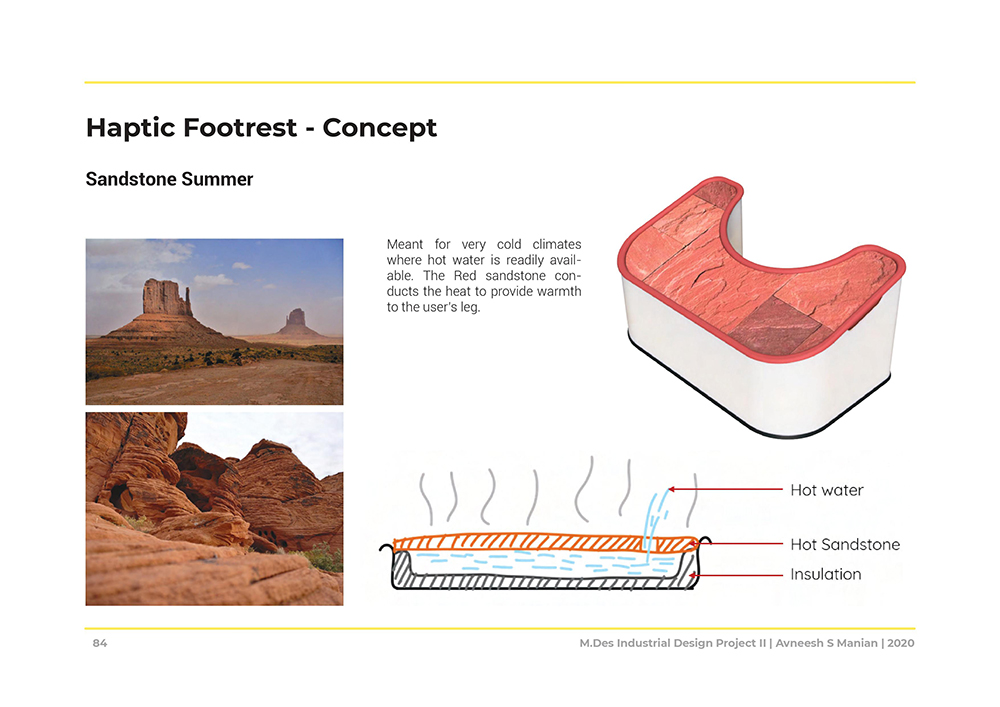

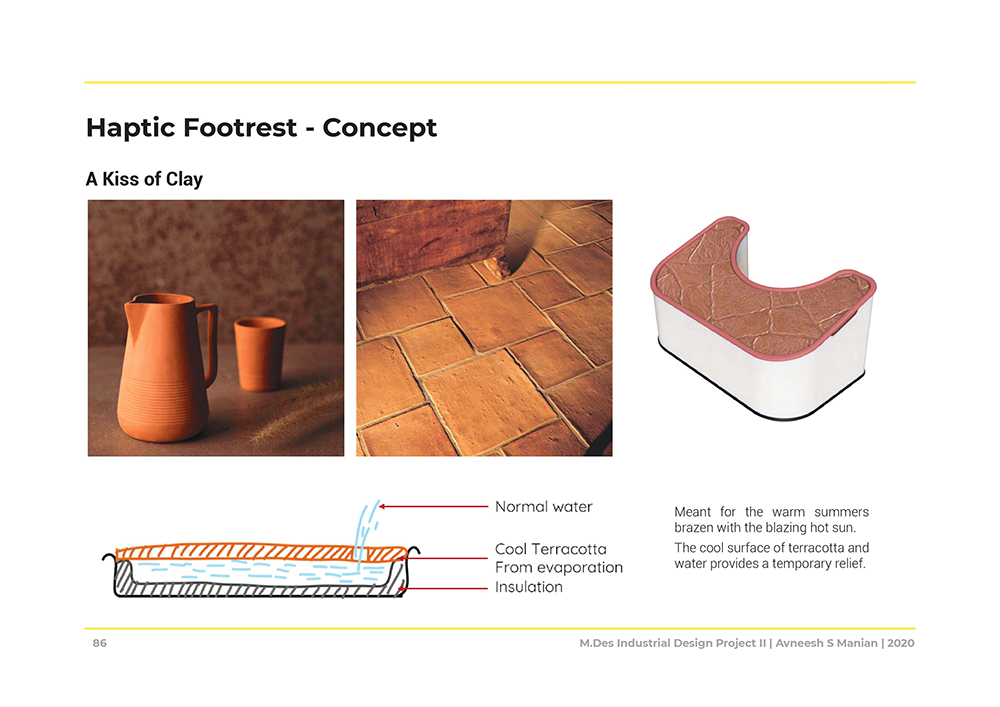

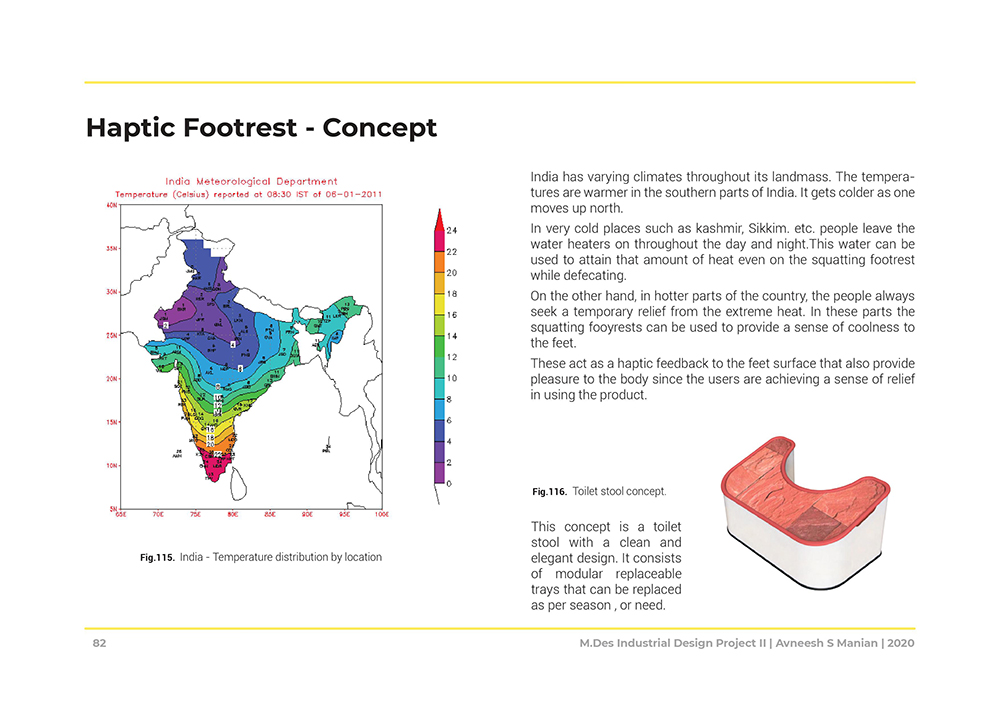

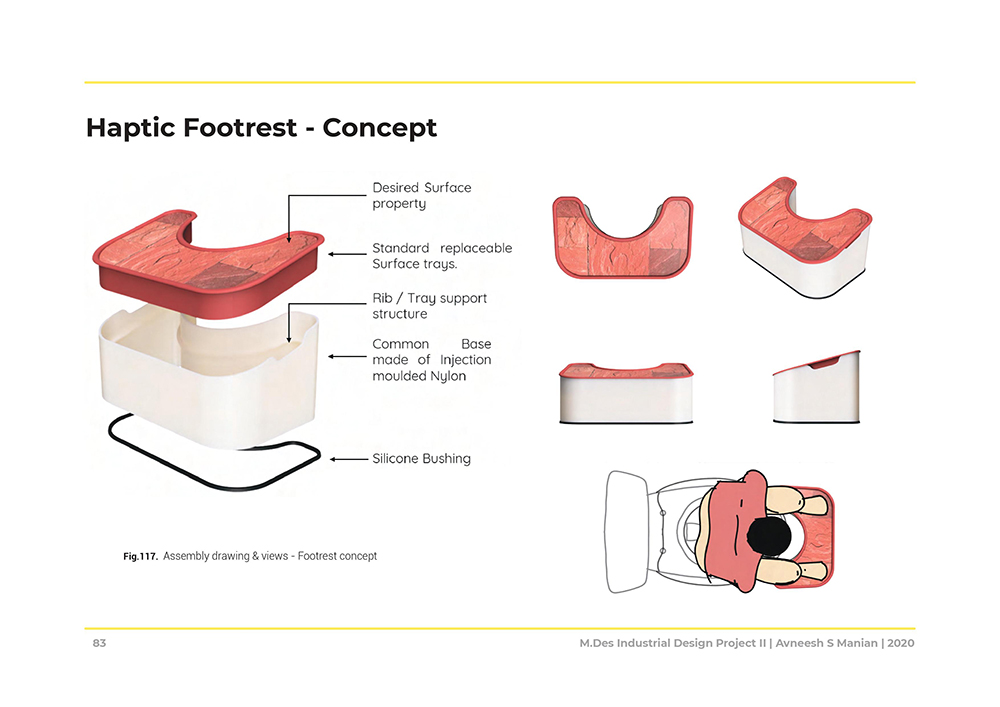

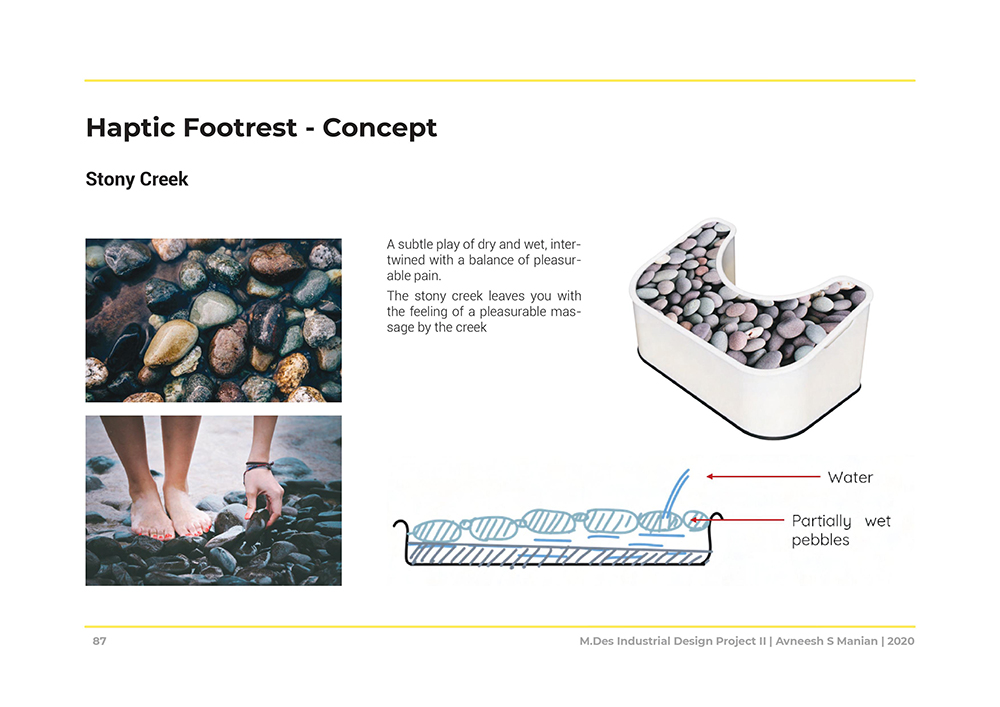

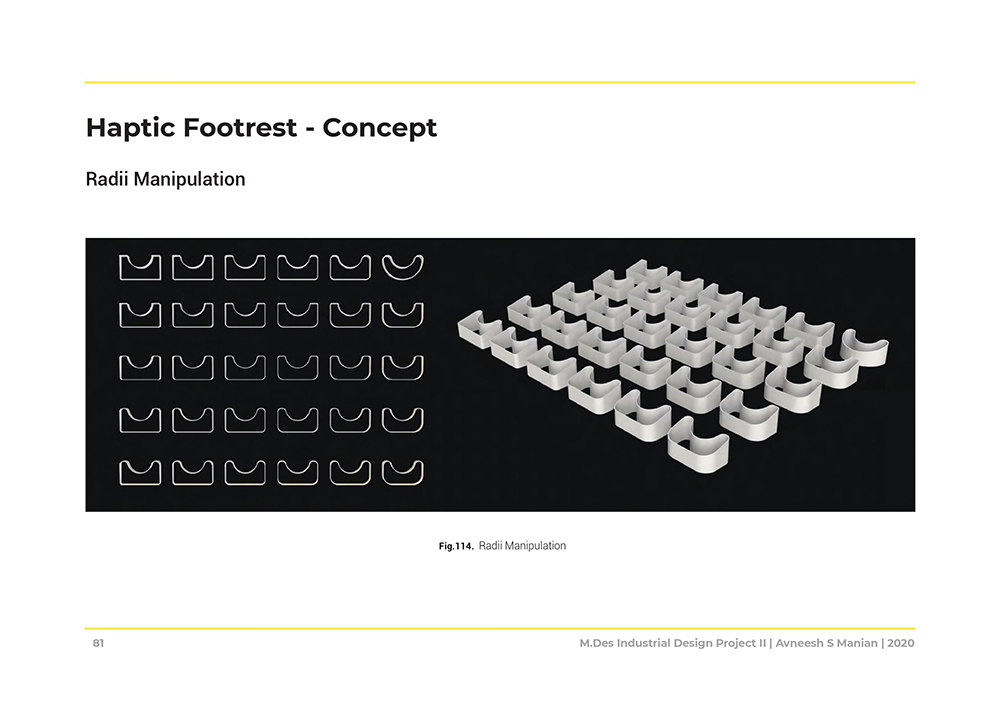

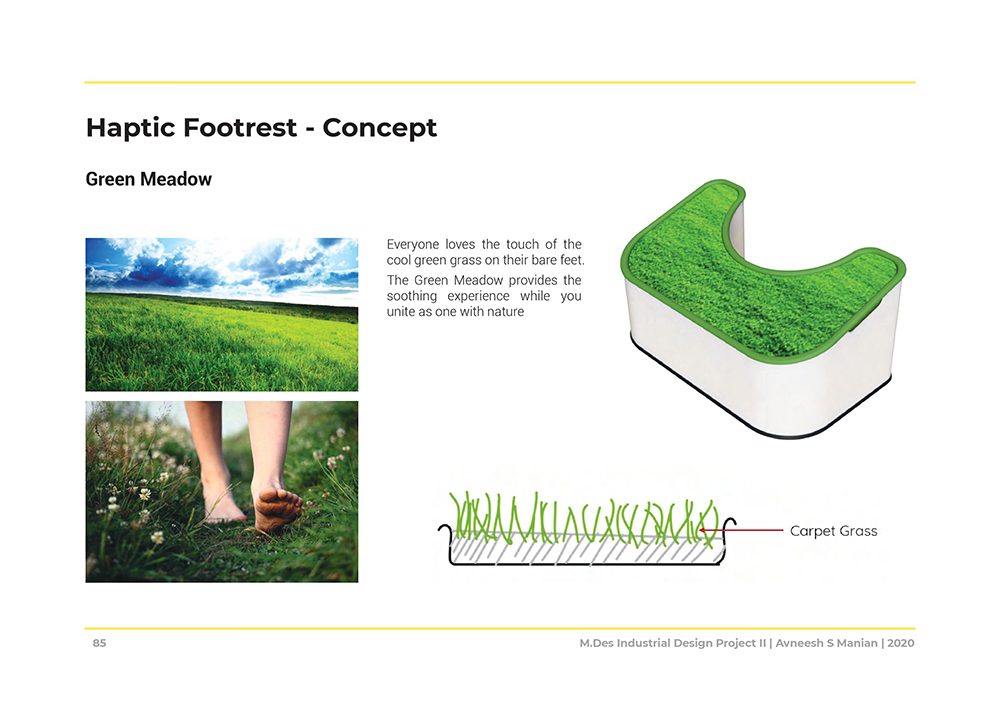

- Haptic Footrest - Concept

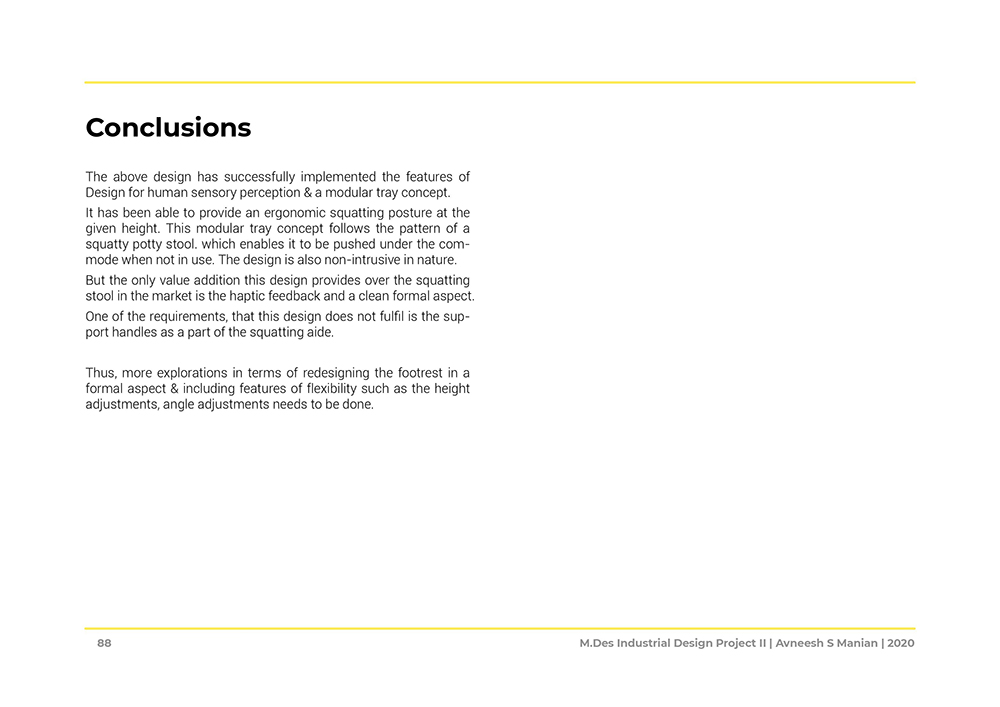

• Conclusions

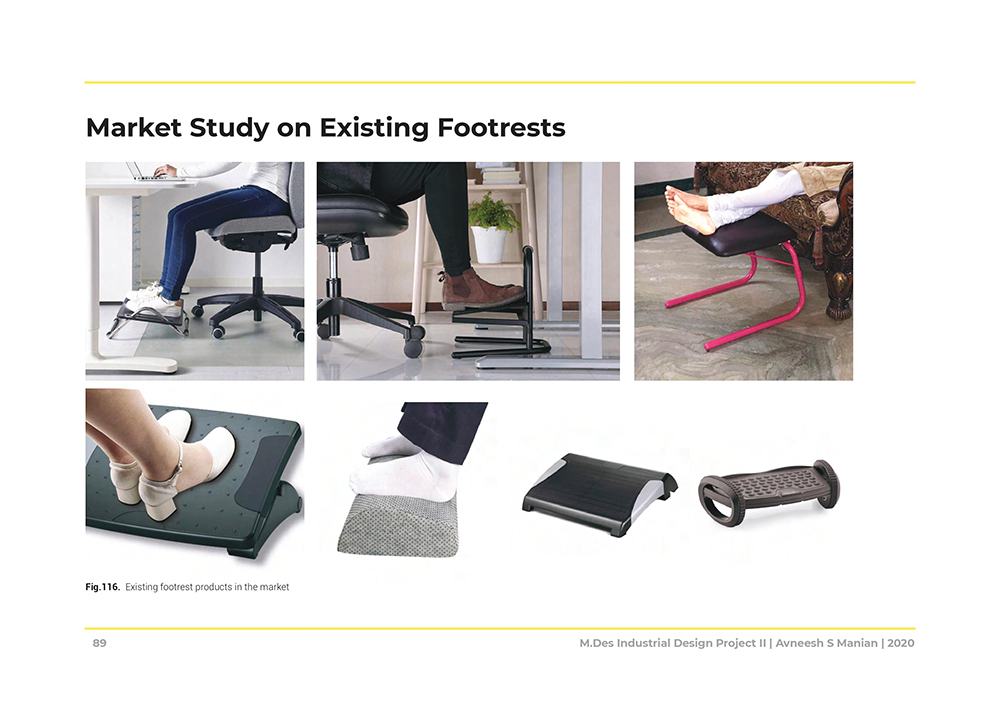

• Footrest Market Study

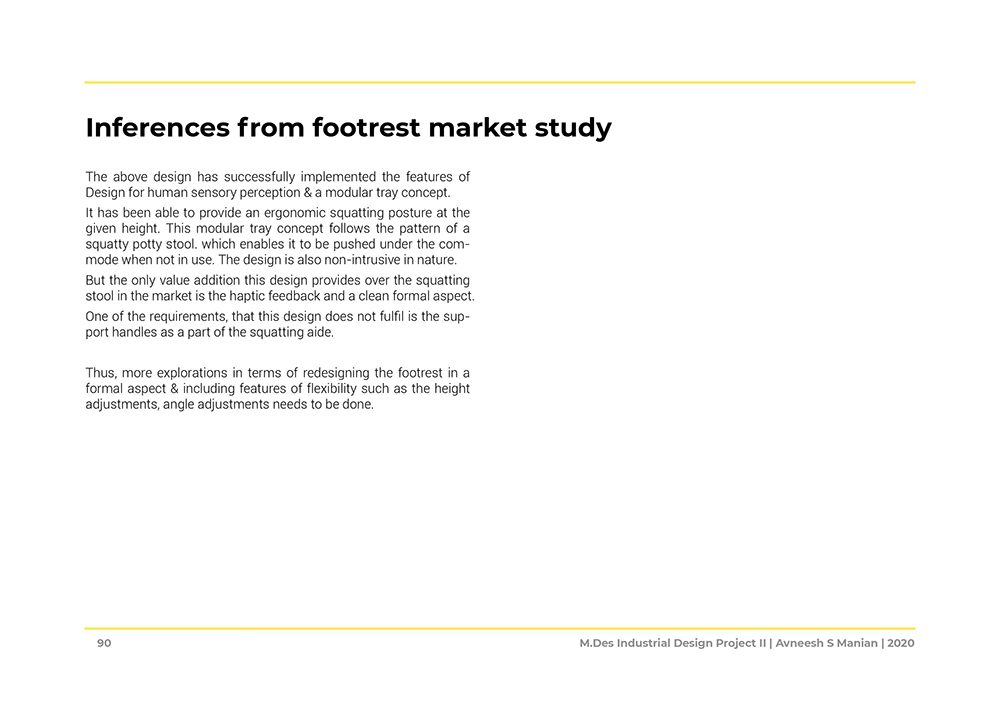

- Inferences from market study
• Final Concepts

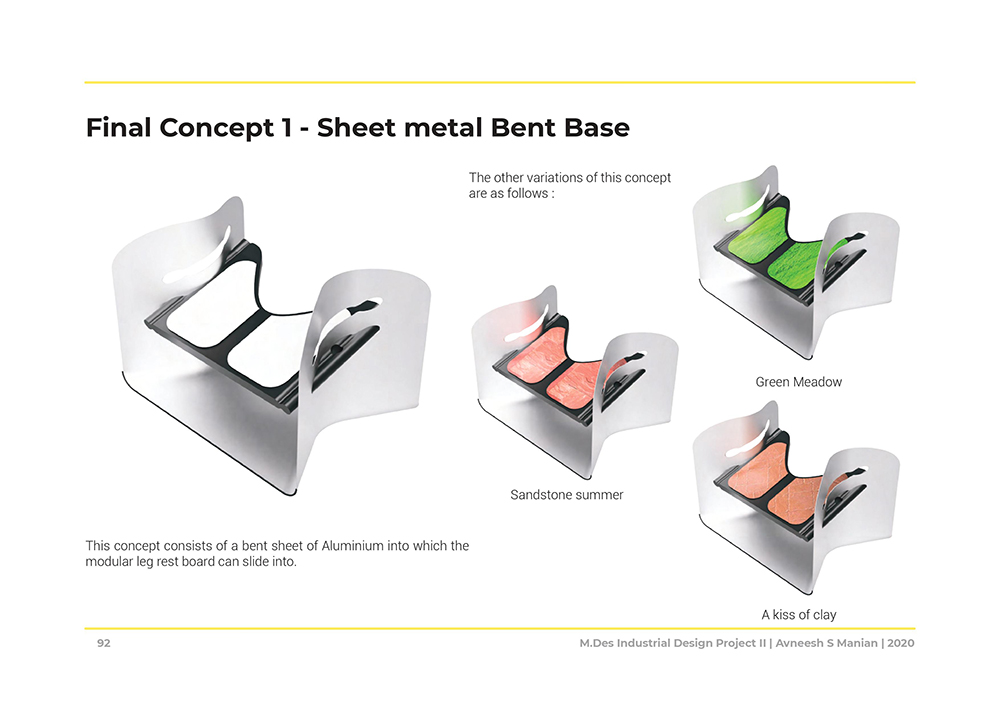

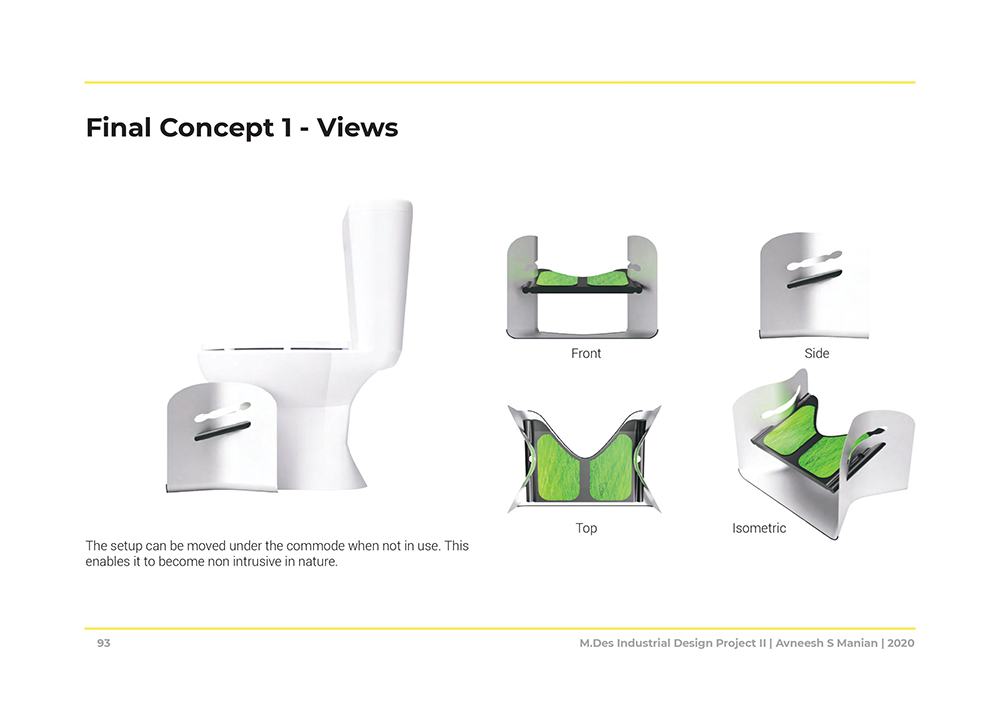

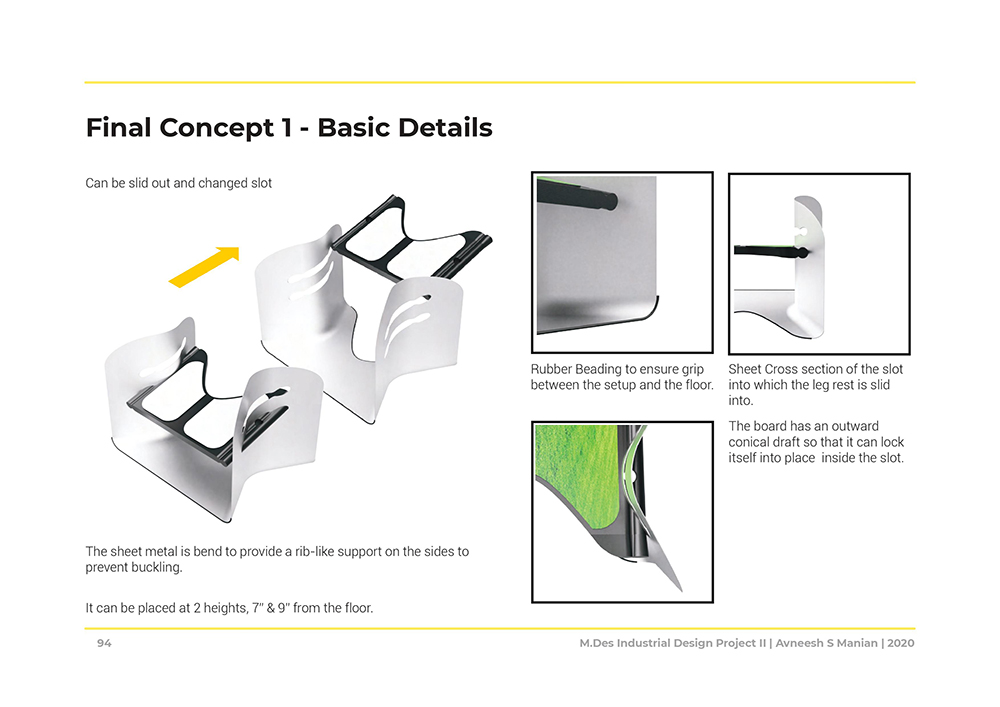

- Final Concept 1

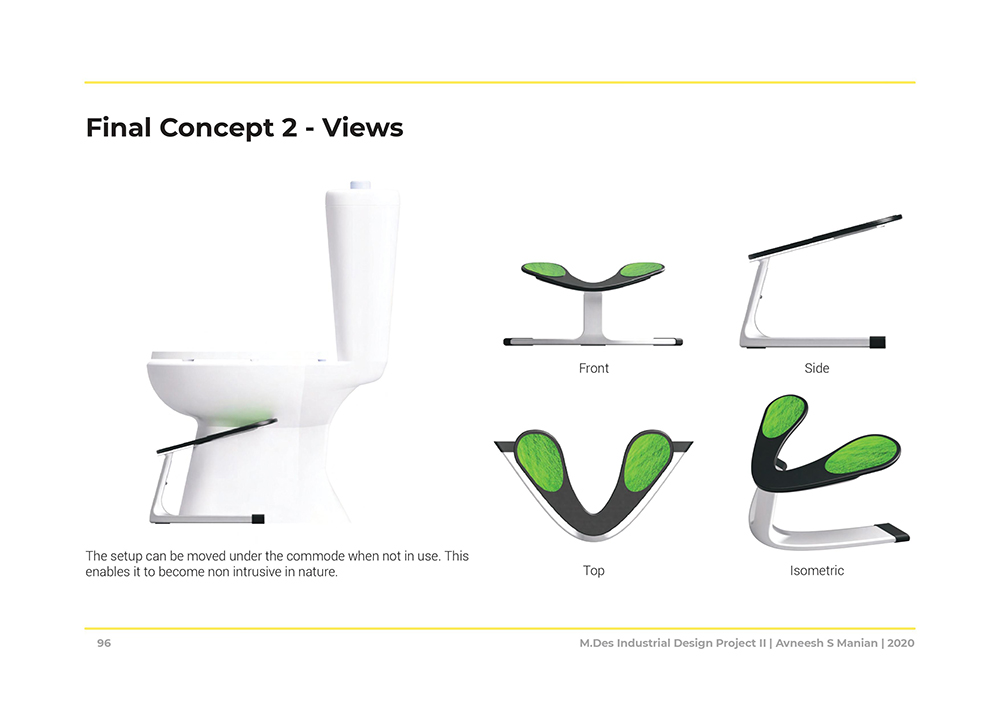

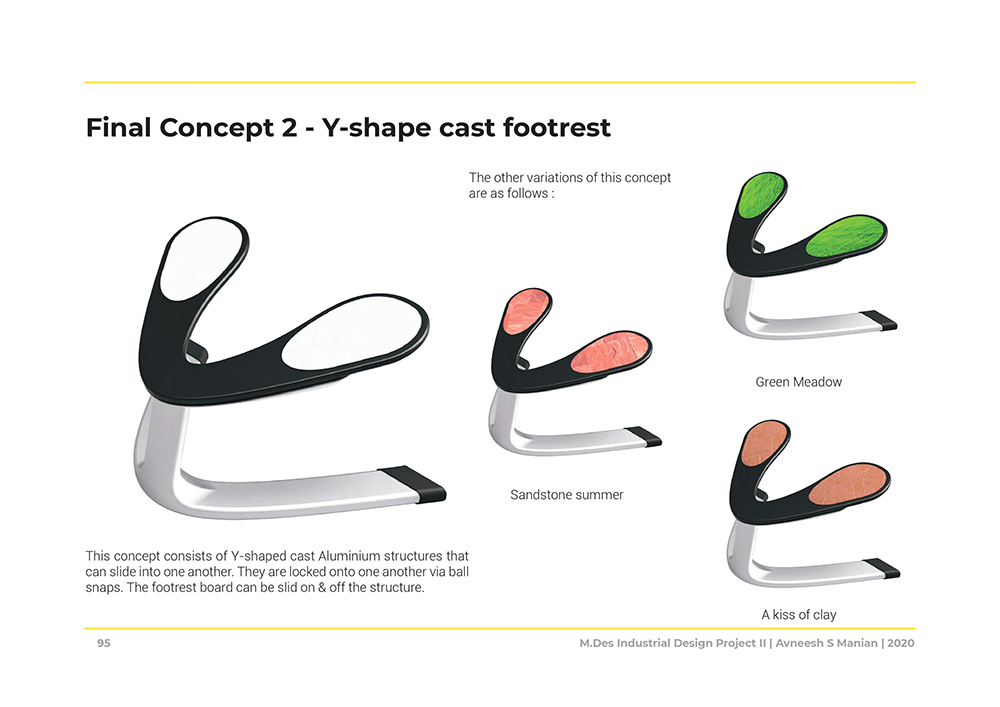

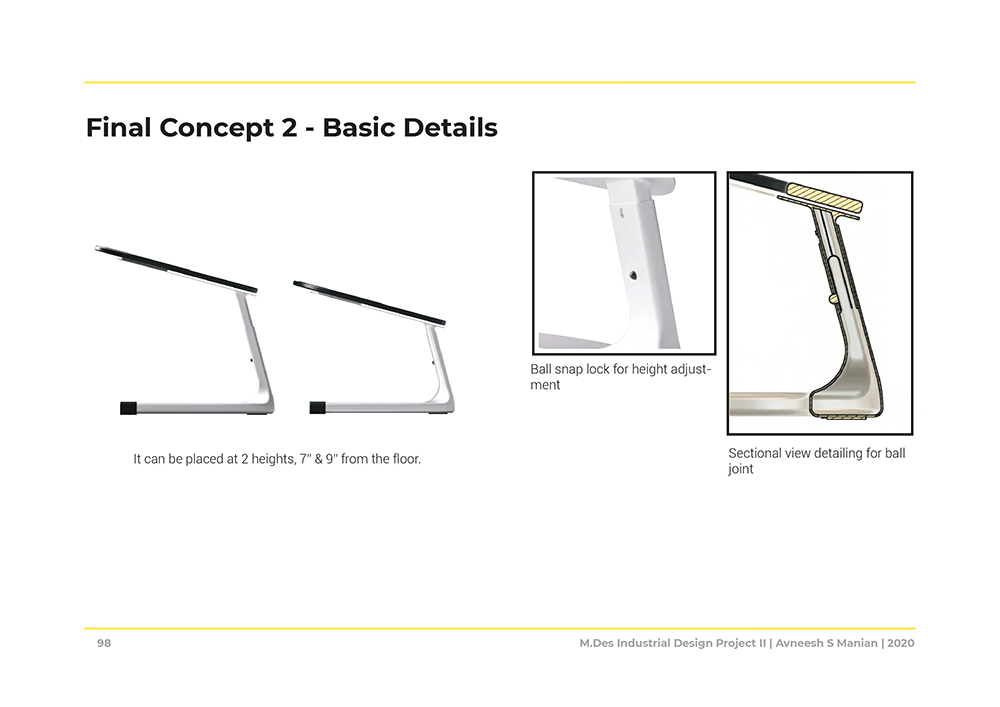

- Final Concept 2

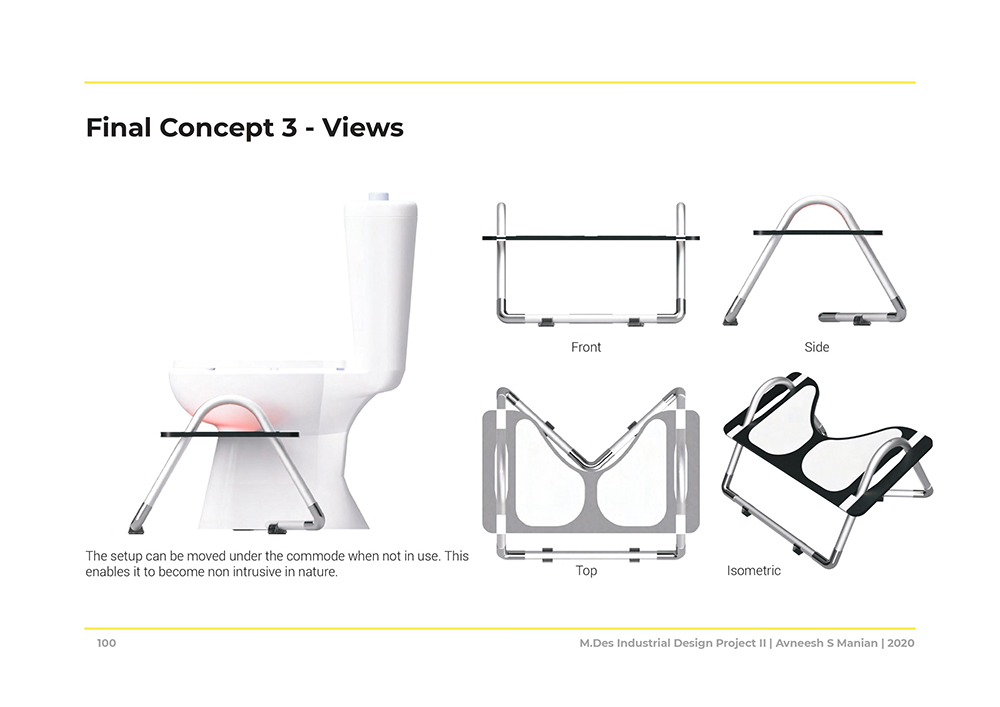

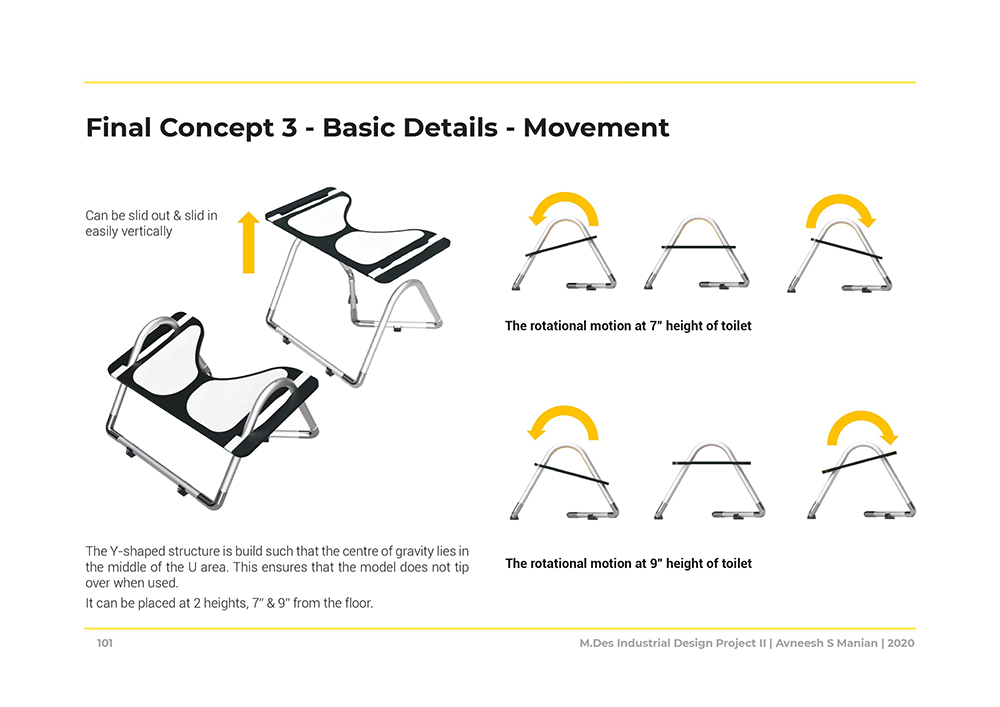

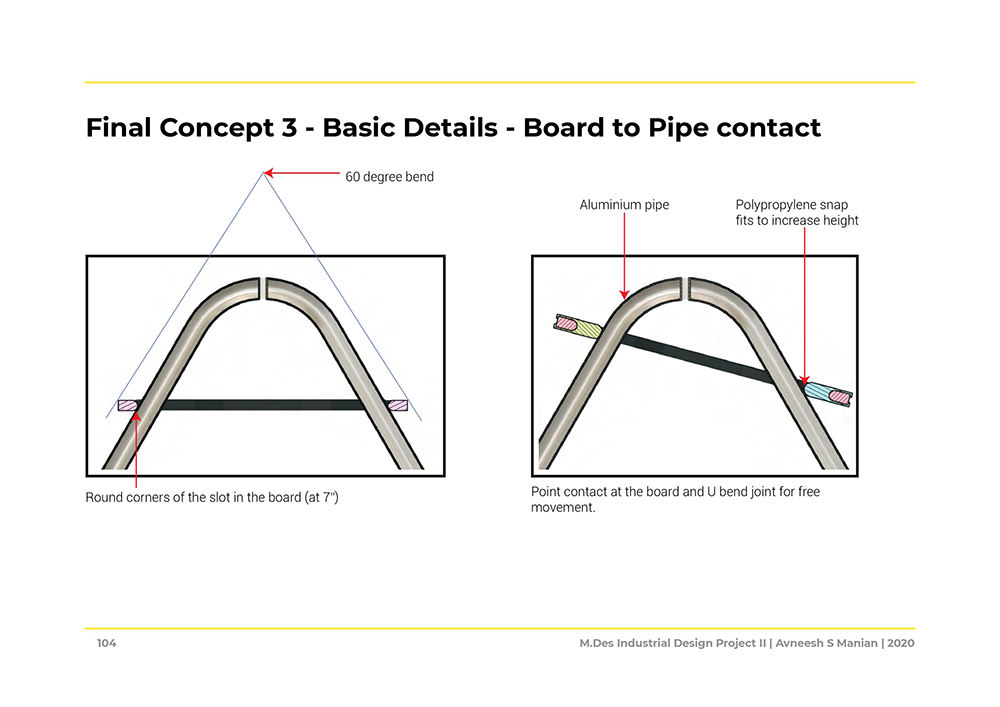

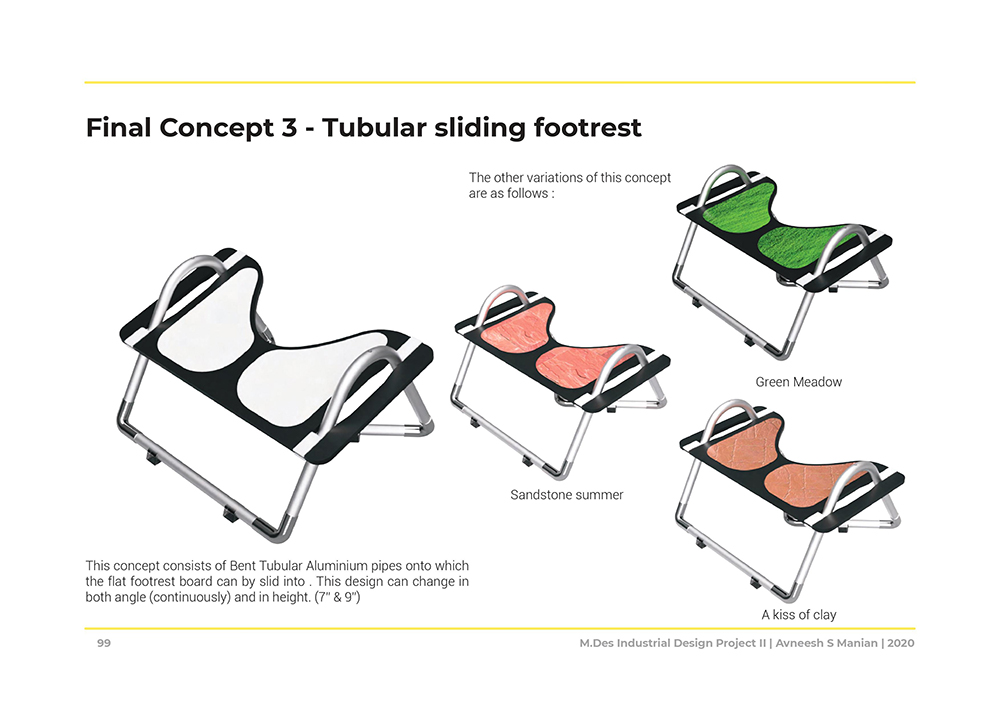

- Final Concept 3

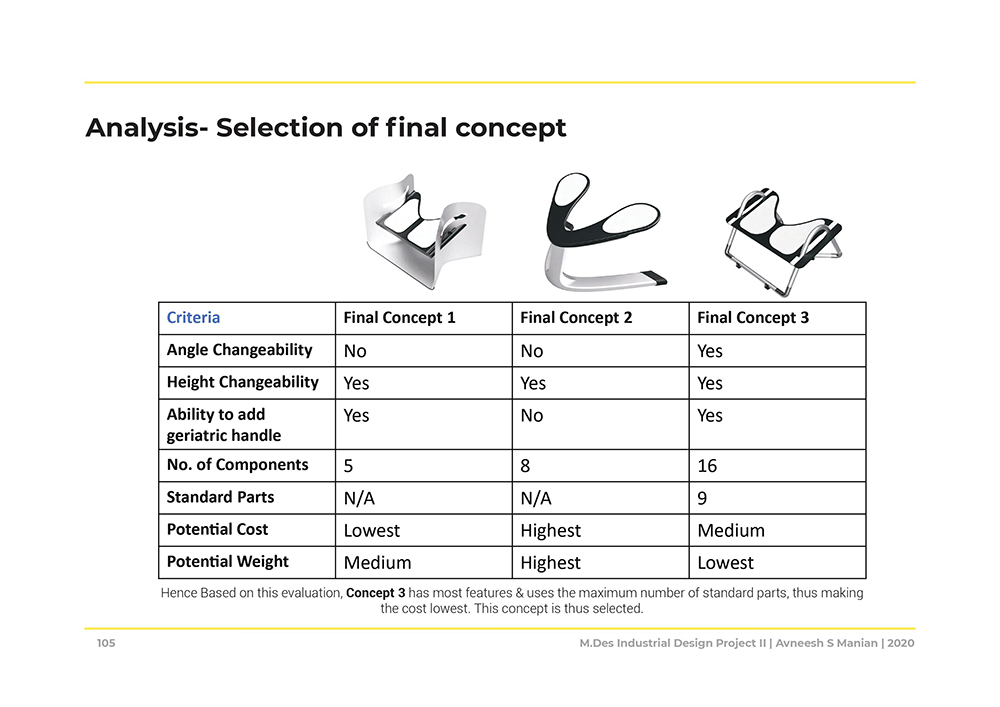

- Analysis of concepts

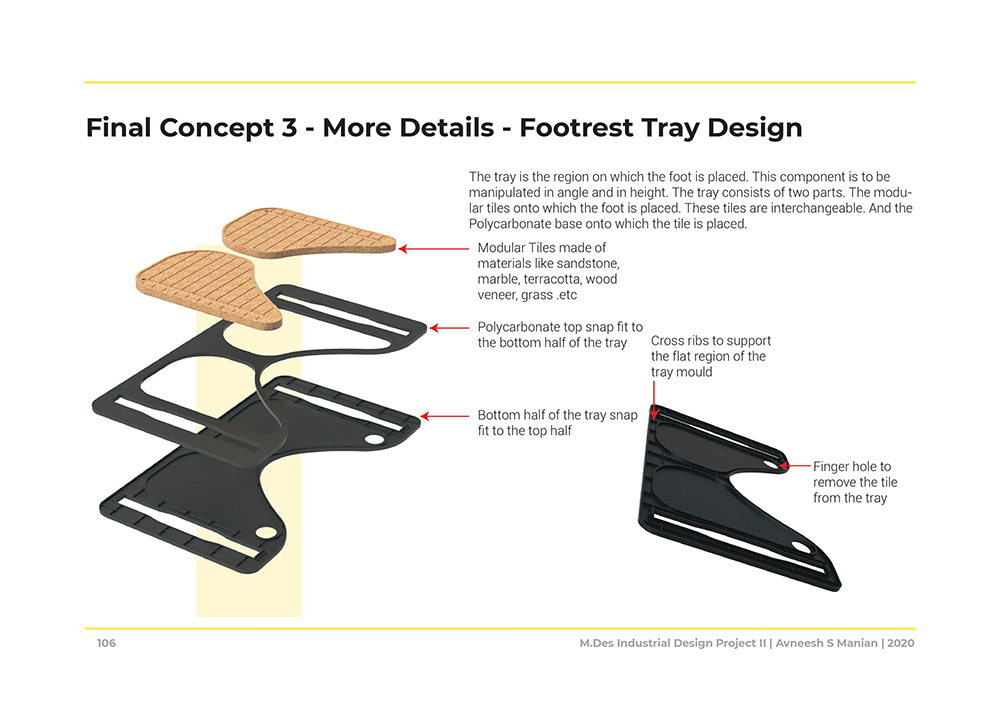

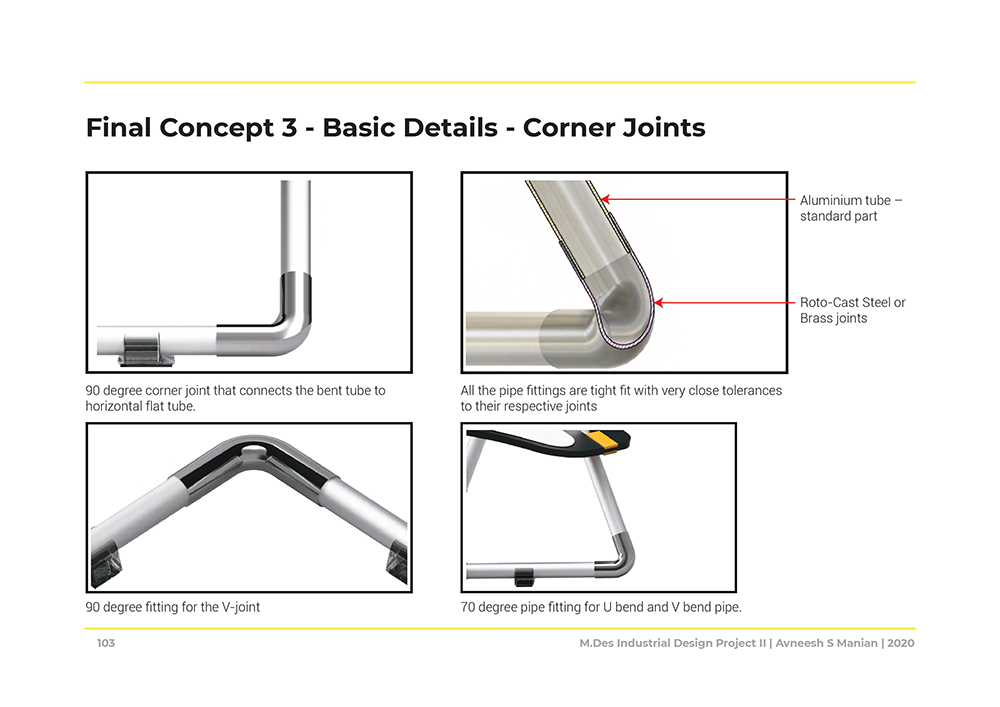

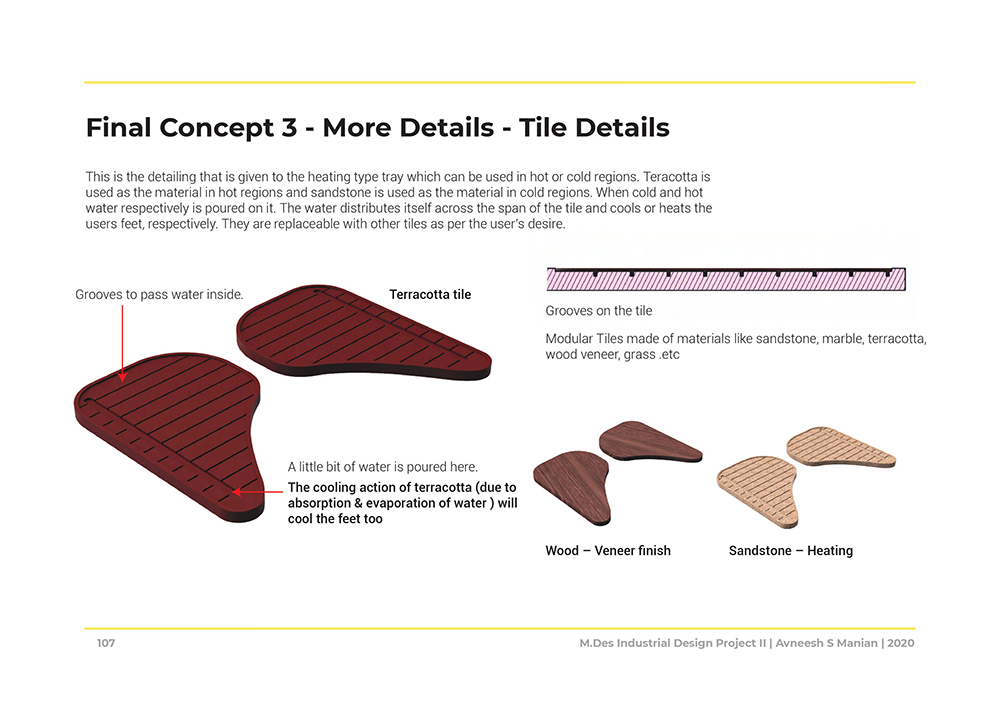

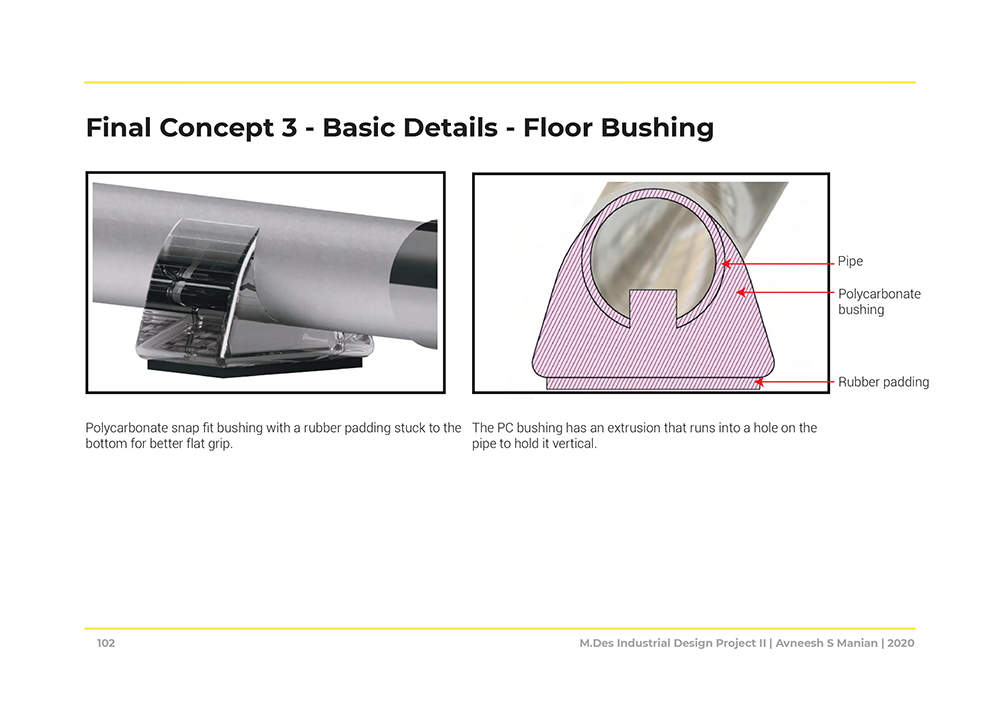

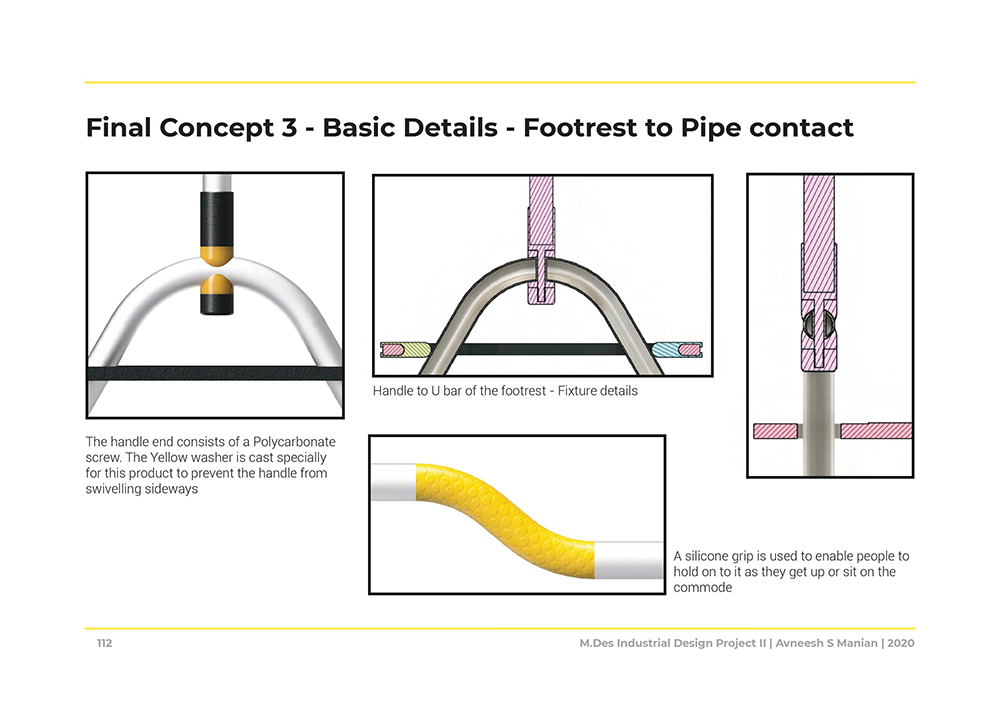

- Final Concept Details

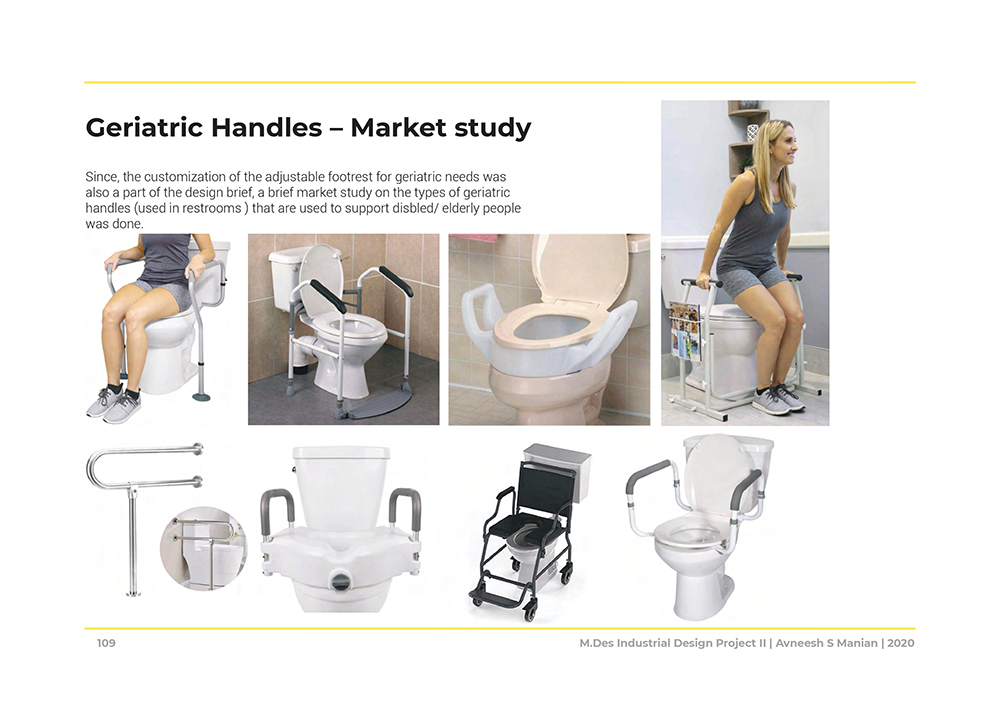

• Market Study - Geriatric handles

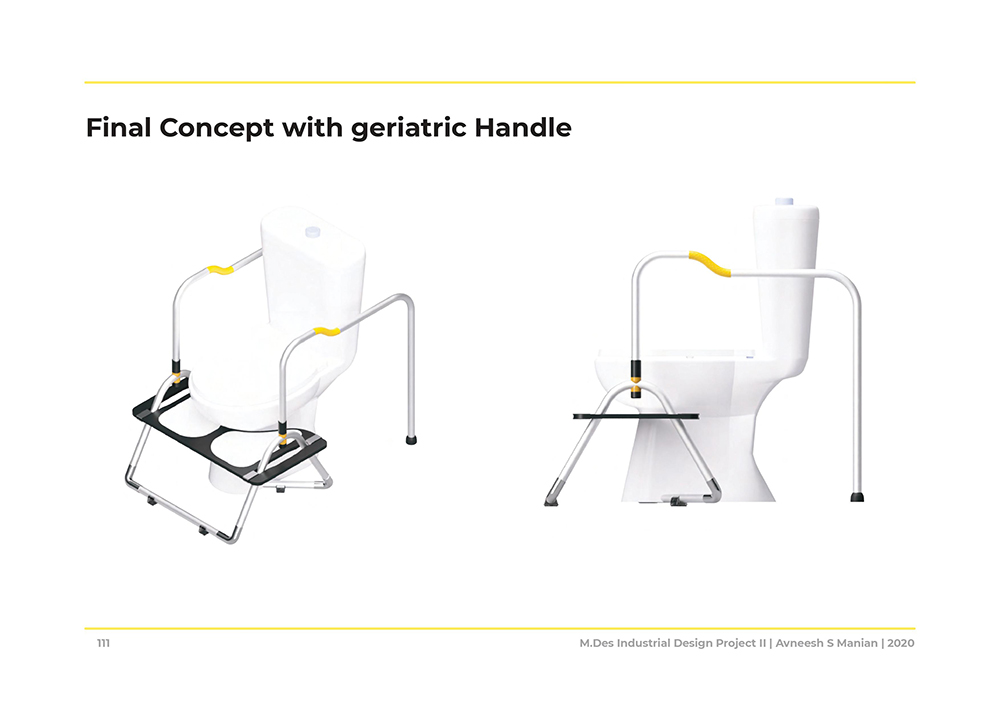

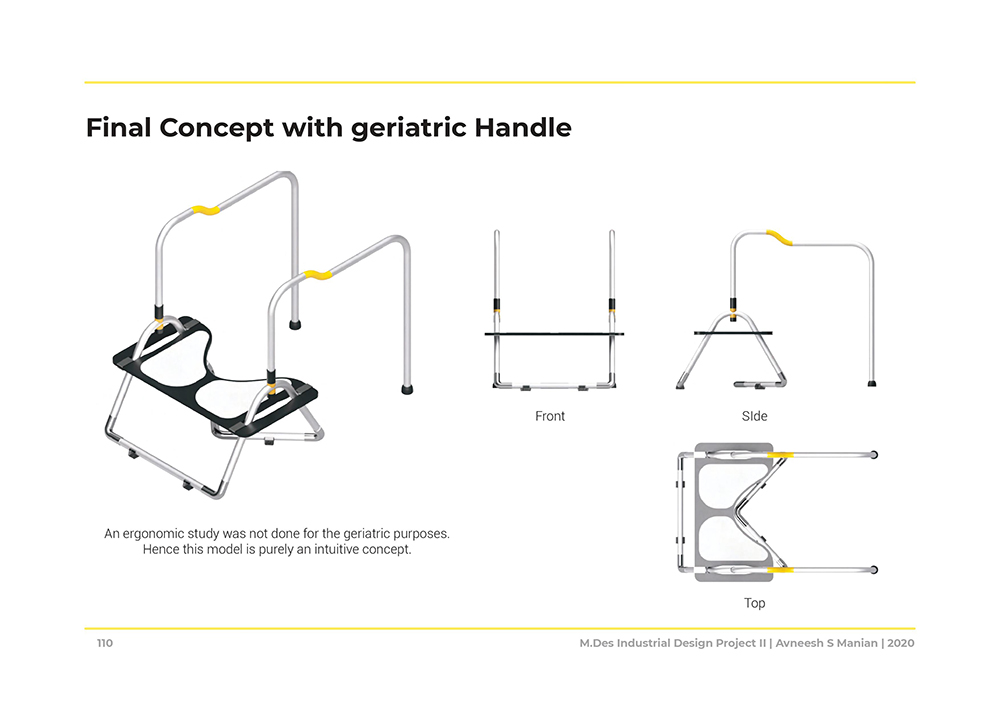

• Final Concept with Geriatric handles

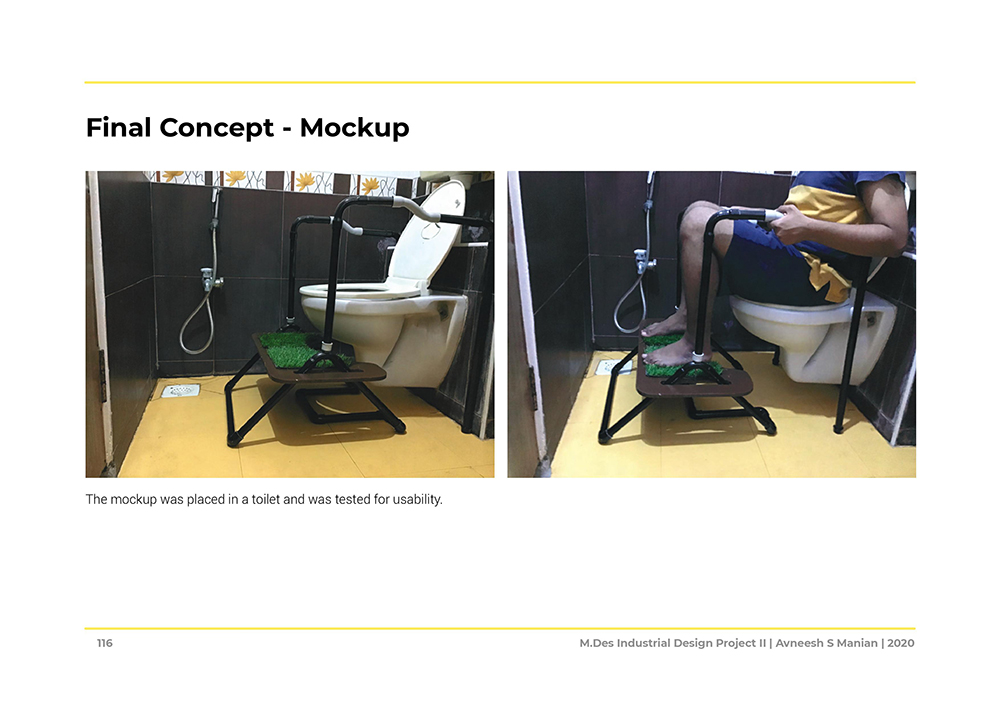

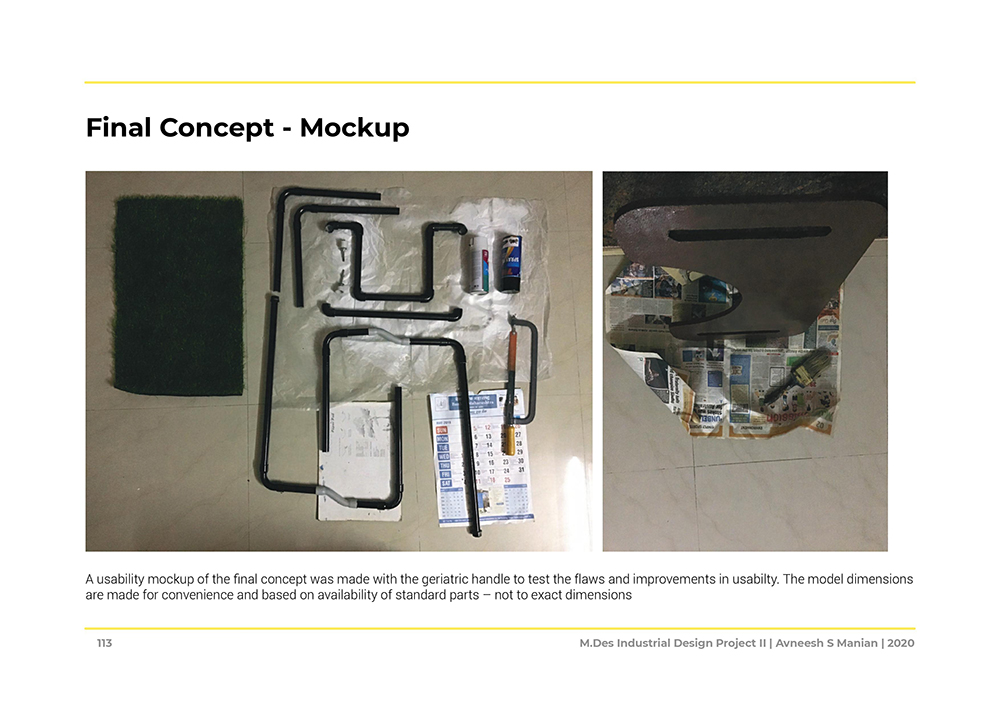

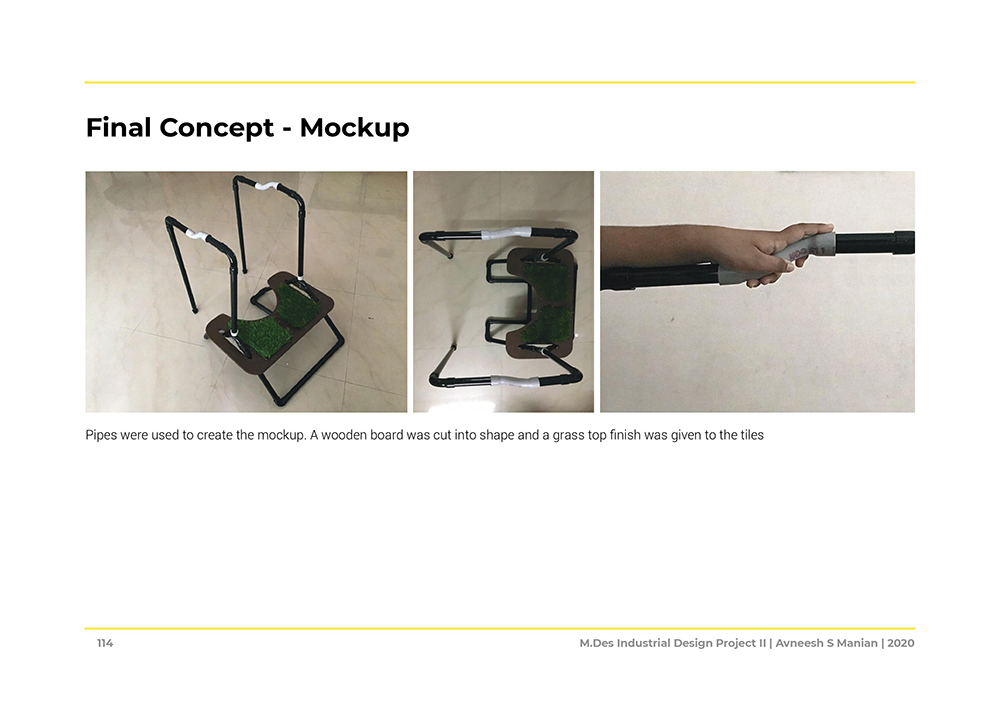

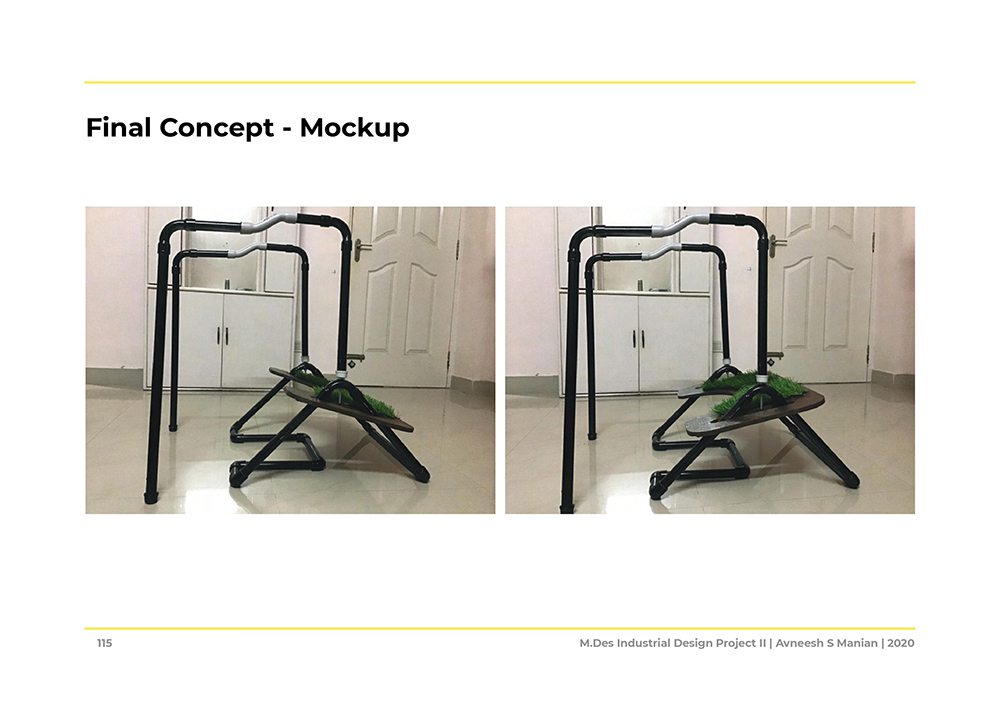

• Mockup

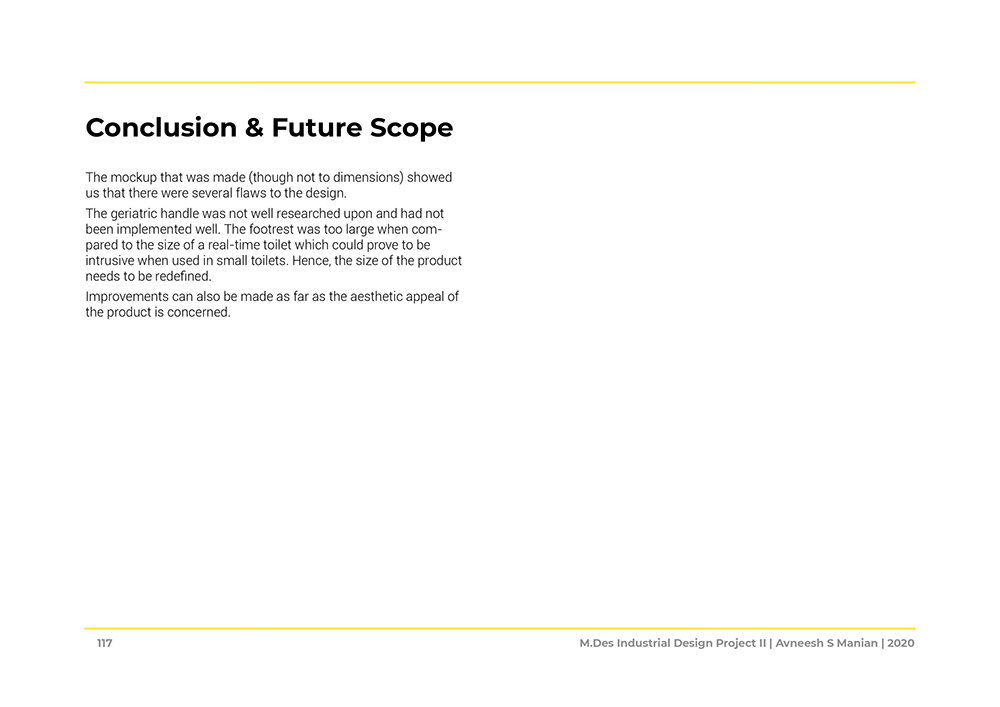

• Conclusions and Future Scope
• References
Case Study Download:
• Design of a Squatting Aide......
